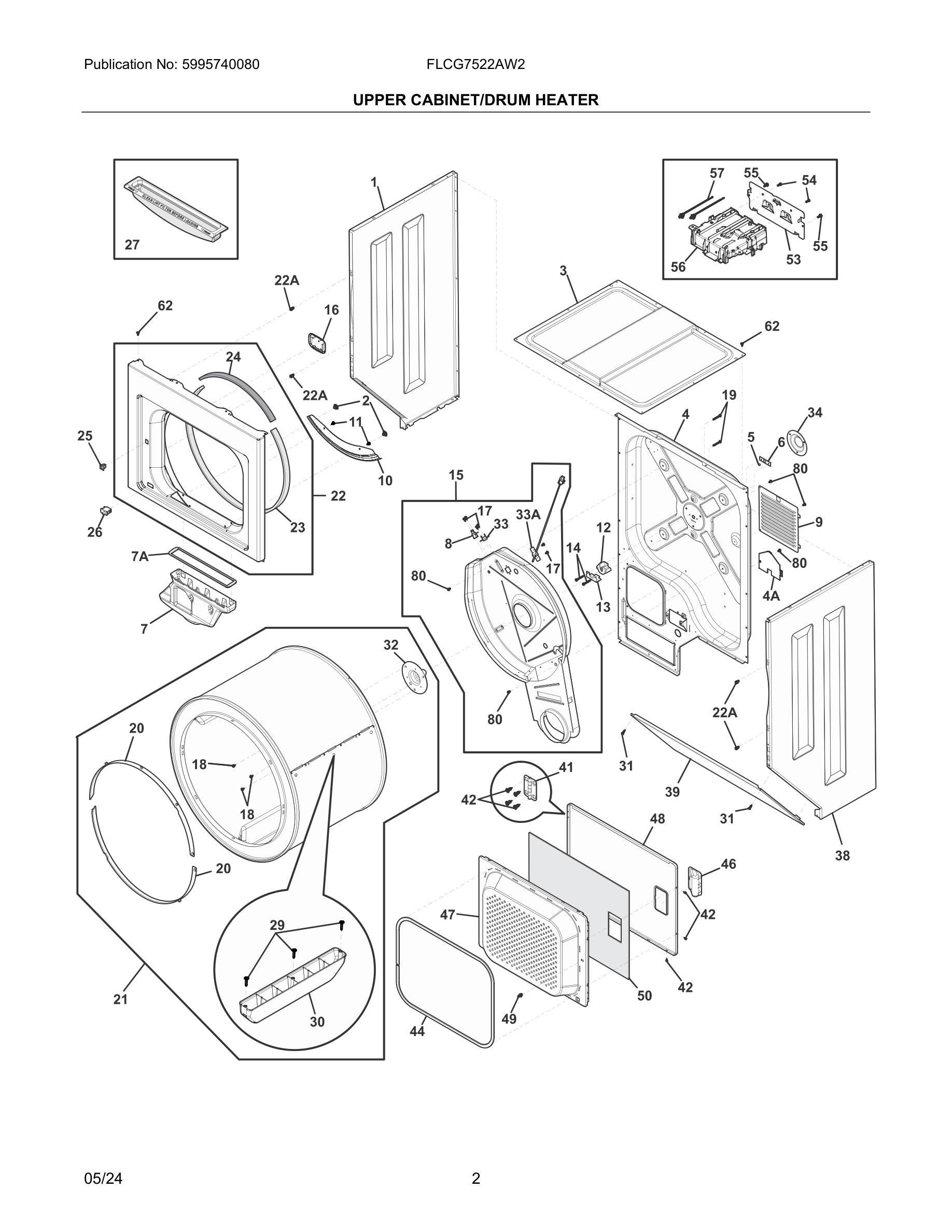

FLCG7522AW2 03 – UPPER CABINET/DRUM HEATER

FLCG7522AW2 03 – UPPER CABINET/DRUM HEATER

Written by

in

FLCG7522AW2 03 – UPPER CABINET/DRUM HEATER

Products

Position	Product
1	137510410 Frigidaire Panel
2	131362400 Frigidaire Fastener
3	131883301 Frigidaire Panel
4	5304500431 Frigidaire Panel
4A	137389801 Frigidaire Cover
5	5303281019 Frigidaire Ball Assembly
6	5303281020 Frigidaire Ball Clip
7A	131295200 Frigidaire Seal
7	5304523177 Frigidaire Duct Assembly
8	THERMAL LIMITER – GAS
9	5304488480 Frigidaire Panel
10	137539100 Frigidaire Shield
11	131168200 Frigidaire Dryer Screw
12	131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
13	131724301 Frigidaire Dryer Drum Bearing Bracket
14	131205400 Frigidaire Screw
15#	5304524474 Frigidaire Heater
16	137576600 Frigidaire Dryer Hole Plug Light
17	131243700 Frigidaire Screw
18	5304502598 Frigidaire Screw
20	137513300 Frigidaire Dryer Drum Glide
21	5304517316 Frigidaire Drum Assembly
22A	137362600 Frigidaire Pin
22	5304517315 Frigidaire Panel
23	5303937183 Frigidaire Dryer Lower Front Felt Seal
24	5303937182 Frigidaire Dryer Drum Upper Felt Seal with Adhesive
25	131658800 Frigidaire Dryer Door Catch Repair Kit
26*#	5304505258 Frigidaire Harness
26#	134813663 Frigidaire Washer Switch
27	LINT FILTER
29	131382300 Frigidaire Screw-VANE
30	5304515811 Frigidaire Vane
31	131202300 Frigidaire Screw
32	131777700 Frigidaire Dryer Bearing Drum
33A#	5304524473 Frigidaire Thermostat
33#	5304406099 Frigidaire Safety Thermostat
34	5304506372 Frigidaire Cover Plate
38	137510510 Frigidaire Panel
39	137546910 Frigidaire Panel
41	134222900 Frigidaire Dryer Door Hinge
42	134156200 Frigidaire Screw
44	137551901 Frigidaire Gasket
46	131789400 Frigidaire Handle
47	137365110 Frigidaire Panel
48	137408403 Frigidaire Panel Assembly
49	5303207102 Frigidaire Door Strike
50	134535300 Frigidaire Insulator
53	5304515761 Frigidaire Cover Assembly
54	131205100 Frigidaire Screw
55	137511100 Frigidaire Screw
56*#	5304523160 Frigidaire Wiring Harness
56*#	5304520336 Frigidaire Wiring Harness
56#	5304524466 Frigidaire Board
57	5304515894 Frigidaire Clip
62	131302800 Frigidaire Drum Vane Screw
