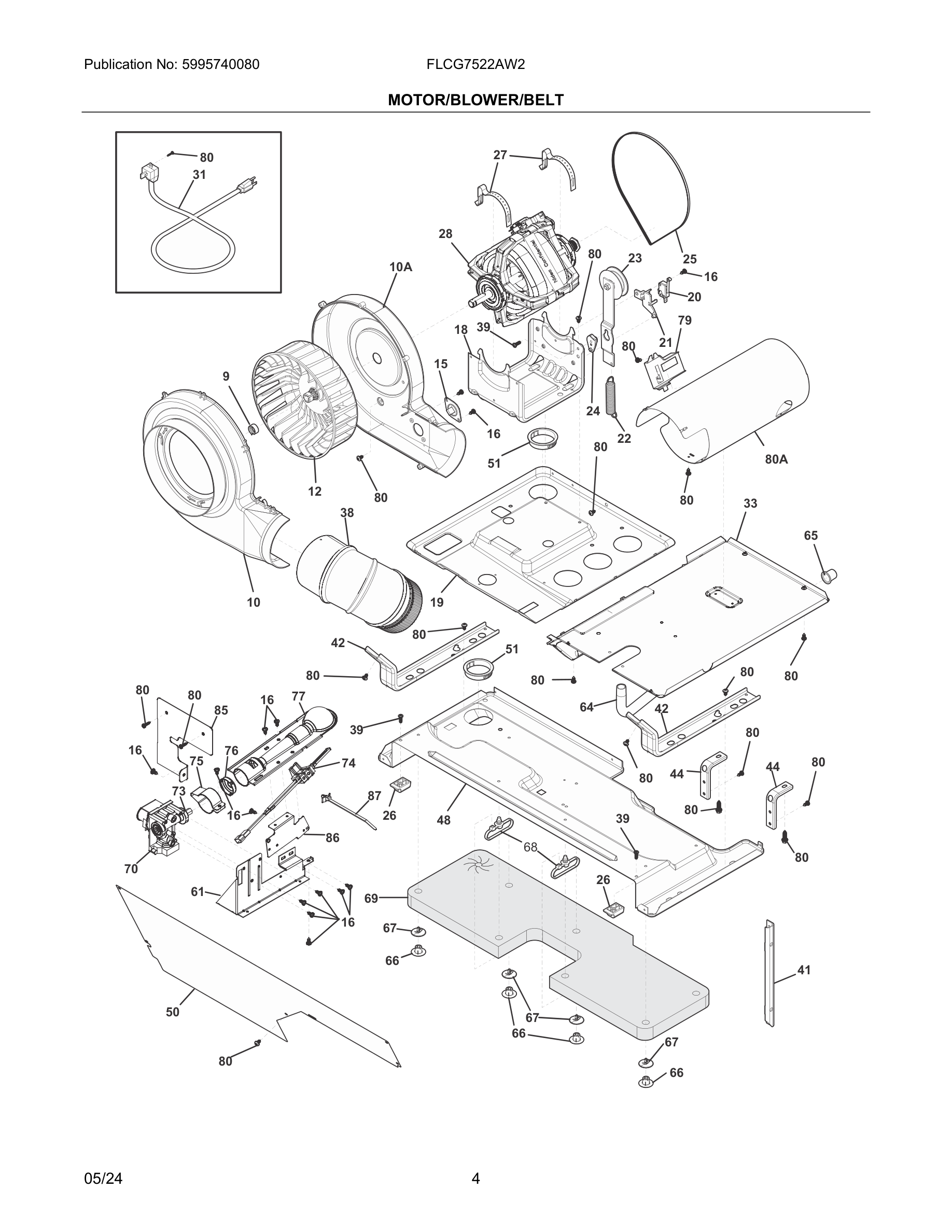

FLCG7522AW2 05 – MOTOR/BLOWER/BELT

FLCG7522AW2 05 – MOTOR/BLOWER/BELT

Written by

in

FLCG7522AW2 05 – MOTOR/BLOWER/BELT

Products

PositionProduct
*134402900 Frigidaire Screw
*#WCI 5304523143
95304488479 Frigidaire Washer Hose Clamp
10A137551800 Frigidaire Housing
105304523176 Frigidaire Housing Assembly
12BLOWER WHEEL
15#134587700 Frigidaire Washer Control Thermistor
16131243700 Frigidaire Screw
18WCI 131367101
19137490900 Frigidaire Pan
20#5304521496 Frigidaire Limit Switch
215304521495 Frigidaire Bracket
223205241 Frigidaire Idler Spring
235304526204 Frigidaire Idler Arm Assembly
245304524456 Frigidaire Spacer
25BELT-DRYER LC
26137511300 Frigidaire Block
27134242400 Frigidaire Washer Clamp Assembly
28#134196602 Frigidaire Washer Dryer Motor
28*#5304524443 Frigidaire Wiring Harness
31134500500 Frigidaire Power Cord
335304515828 Frigidaire Baffle
33*137212300 Frigidaire Gasket
385304521383 Frigidaire Elbow
39131205100 Frigidaire Screw
41131091300 Frigidaire Bracket
42137304710 Frigidaire Bracket
443204326 Frigidaire Bracket Assembly
48PAN, BOTTOM LC DRYER
505304488478 Frigidaire Cover
51131453000 Frigidaire Bushing
61#BRACKET
64137076300 Frigidaire Pipe
6508015112 Frigidaire CAP
66WCI 5304524483
67WCI 5304524484
685304524498 Frigidaire Zip Tie
695304524477 Frigidaire Sound Insulator
70#5304524455 Frigidaire Gas Valve Assembly
73#5303207410 Frigidaire Orifice
74#IGNITER
75134258500 Frigidaire Air Shutter
76134714401 Frigidaire Collar
77#134197701 Frigidaire Burner
77#134197700 Frigidaire Burner
79#5303281135 Frigidaire Gas Dryer Flame Sensor Radiant
80131168200 Frigidaire Dryer Screw
80A#131712405 Frigidaire Tube
85134287301 Frigidaire SHIELD
86BRACKET, IGNITOR
875304528020 Frigidaire Cable Tie
