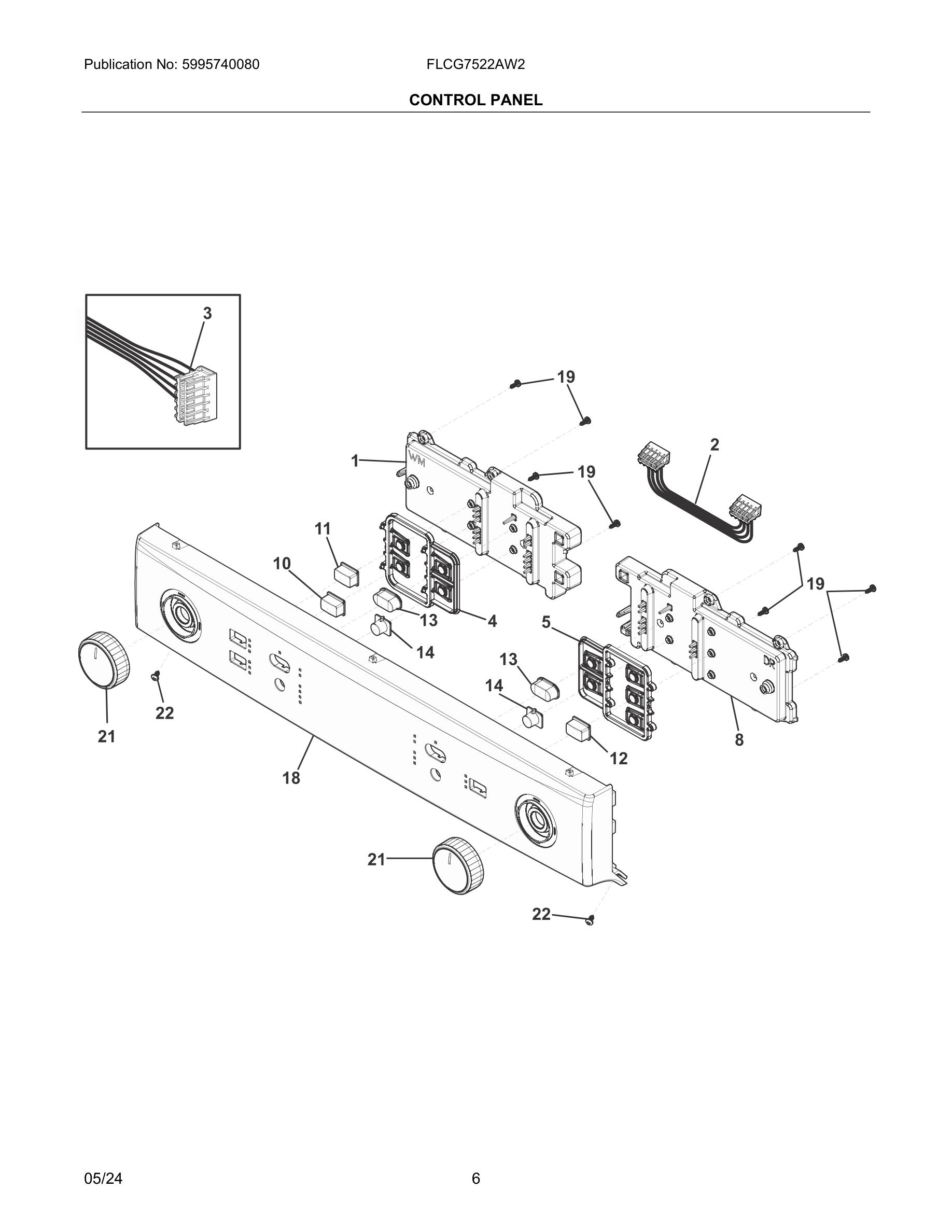

FLCG7522AW2 07 – CONTROL PANEL

FLCG7522AW2 07 – CONTROL PANEL

Written by

in

FLCG7522AW2 07 – CONTROL PANEL

Products

PositionProduct
1#BOARD ASSEMBLY
2#5304520297 Frigidaire Wiring Harness
3#5304524443 Frigidaire Wiring Harness
45304515821 Frigidaire Support
55304515822 Frigidaire Support Assembly
8#BOARD ASSEMBLY
105304524439 Frigidaire Button
11BUTTON, WASH TEMP, WHITE
125304524440 Frigidaire Button
135304515796 Frigidaire Button
145304524441 Frigidaire Button
185304529303 Frigidaire Console
195304505441 Frigidaire Screw
215304524434 Frigidaire Knob Assembly
22131168200 Frigidaire Dryer Screw
