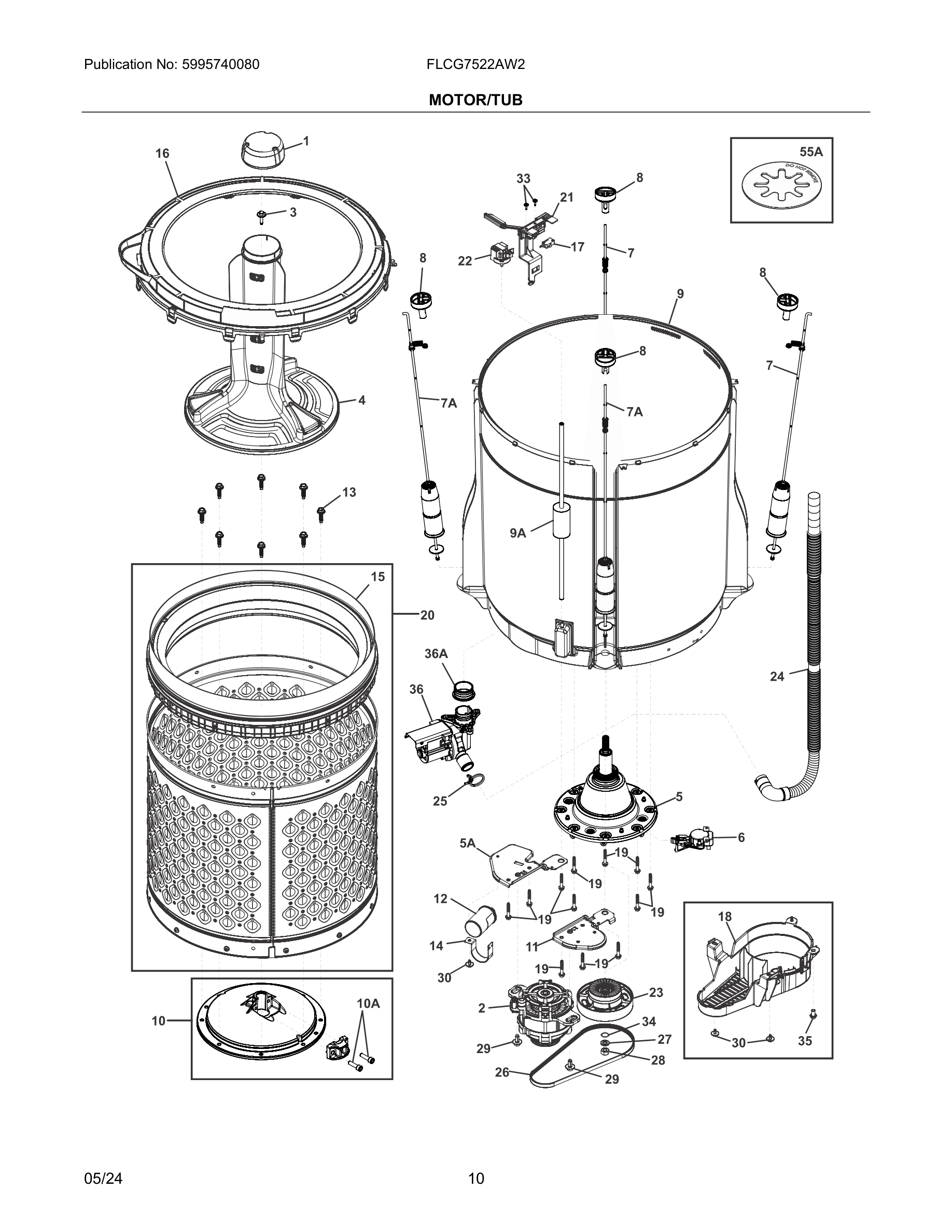

FLCG7522AW2 11 – MOTOR/TUB

FLCG7522AW2 11 – MOTOR/TUB

Products

PositionProduct
*#5304520336 Frigidaire Wiring Harness
15304515844 Frigidaire Agitator Cap
2#5304515840 Frigidaire Motor Assembly
35304500572 Frigidaire Screw
45304515845 Frigidaire Agitator
5*5304500558 Frigidaire O-Ring
5#5304517318 Frigidaire Transmission
5A5304515832 Frigidaire Bracket Assembly
6*5304500556 Frigidaire Screw
65304536495 Frigidaire Actuator
7#SUSPENSION
7A#SUSPENSION
85304500580 Frigidaire Suspension
9A*5304529309 Frigidaire Wrap Tie
9A*131209800 Frigidaire Clamp
9A*5304464772 Frigidaire Refrigerator Wire Tie
95304536277 Frigidaire Tub Assembly
9A#5304515739 Frigidaire Hose Assembly
105304500426 Frigidaire Hub Assembly
10A5304500432 Frigidaire Screw Assembly
115304515843 Frigidaire Bracket
12#5304515819 Frigidaire Capacitor
135304504896 Frigidaire Screw
145304515833 Frigidaire Clamp
155304515874 Frigidaire Ring
15*5304500571 Frigidaire Screw
165304534045 Frigidaire Cover
17#5304515923 Frigidaire Switch
185304521466 Frigidaire Protection
195304501446 Frigidaire Screw
205304515886 Frigidaire Spin Tub
215304535522 Frigidaire Oob Mini Bracket Assembly
22#5304504885 Frigidaire Washer Sensor
235304524493 Frigidaire Pulley Assembly
24#5304515738 Frigidaire Washer Drain Hose
25CLAMP, HOSE, WIRE
265304515831 Frigidaire Belt
275304500521 Frigidaire Washer
285304515756 Frigidaire Nut
295304515912 Frigidaire Screw
305304515913 Frigidaire Screw
33131205100 Frigidaire Screw
345304515932 Frigidaire Washer
355304500554 Frigidaire Screw Assembly
36*5304500575 Frigidaire Screw
36A5304500585 Frigidaire Seal Assembly
36#PUMP ASSEMBLY
55A137385100 Frigidaire Ring
