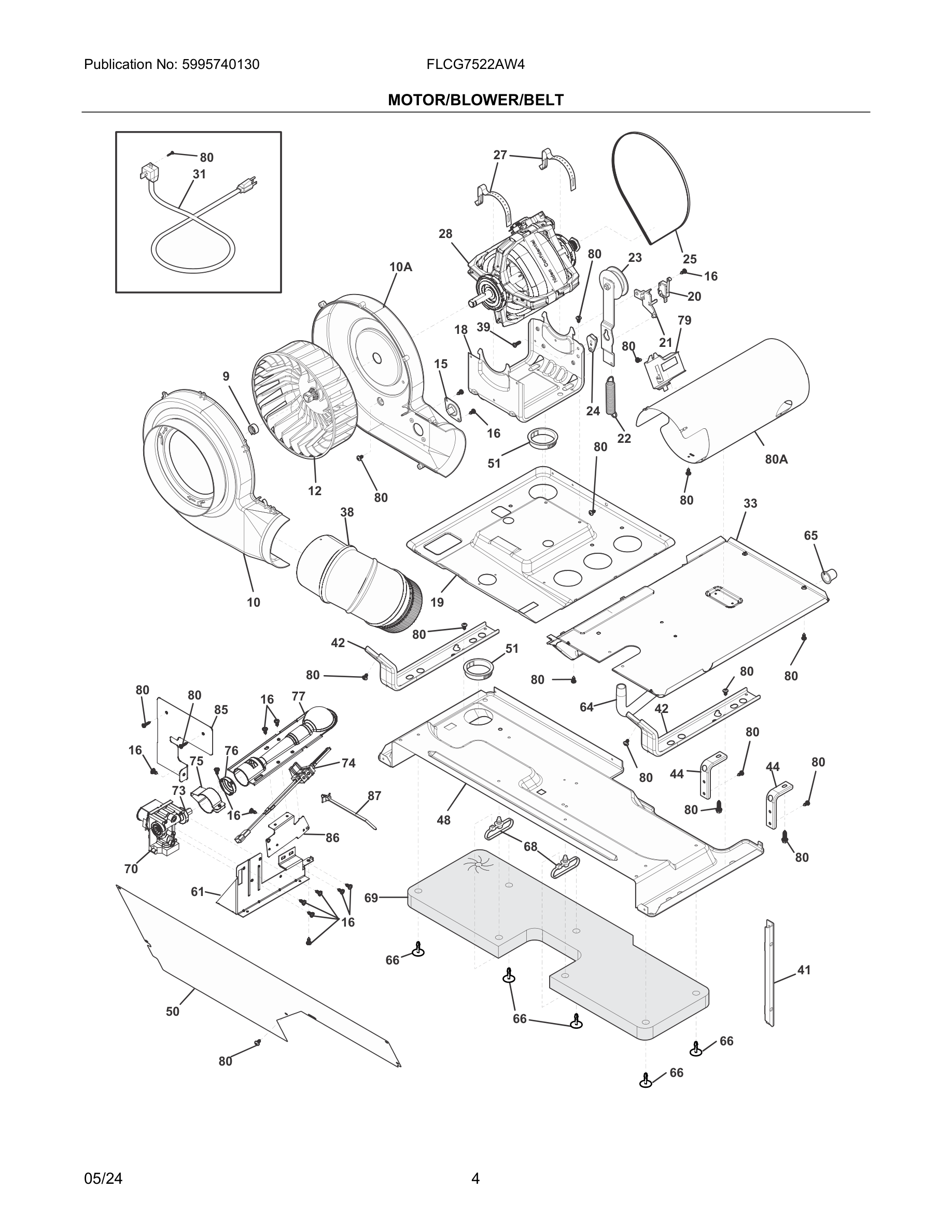

FLCG7522AW4 05 – MOTOR/BLOWER/BELT

FLCG7522AW4 05 – MOTOR/BLOWER/BELT

Written by

in

FLCG7522AW4 05 – MOTOR/BLOWER/BELT

Products

PositionProduct
*134402900 Frigidaire Screw
*#WCI 5304523143
105304523176 Frigidaire Housing Assembly
10A137551800 Frigidaire Housing
12BLOWER WHEEL
15#134587700 Frigidaire Washer Control Thermistor
16131243700 Frigidaire Screw
18WCI 131367101
19137490900 Frigidaire Pan
20#5304521496 Frigidaire Limit Switch
215304521495 Frigidaire Bracket
223205241 Frigidaire Idler Spring
235304526204 Frigidaire Idler Arm Assembly
245304524456 Frigidaire Spacer
25BELT-DRYER LC
27134242400 Frigidaire Washer Clamp Assembly
28#134196602 Frigidaire Washer Dryer Motor
28*#5304524443 Frigidaire Wiring Harness
31134500500 Frigidaire Power Cord
33*137212300 Frigidaire Gasket
335304515828 Frigidaire Baffle
385304521383 Frigidaire Elbow
39131205100 Frigidaire Screw
41131091300 Frigidaire Bracket
42137304710 Frigidaire Bracket
443204326 Frigidaire Bracket Assembly
48Pan, LC Dryer, bottom
505304488478 Frigidaire Cover
51131453000 Frigidaire Bushing
61#BRACKET
64137076300 Frigidaire Pipe
6508015112 Frigidaire CAP
66CLIP, INSULATION, LONG, SINGLE
67WCI 5304524484
685304524498 Frigidaire Zip Tie
69Sound Insulator, pack, top
70#5304524455 Frigidaire Gas Valve Assembly
73#5303207410 Frigidaire Orifice
74#IGNITER
75134258500 Frigidaire Air Shutter
76134714401 Frigidaire Collar
77#134197701 Frigidaire Burner
77#134197700 Frigidaire Burner
79#5303281135 Frigidaire Gas Dryer Flame Sensor Radiant
80131168200 Frigidaire Dryer Screw
80A#131712405 Frigidaire Tube
85134287301 Frigidaire SHIELD
86BRACKET, IGNITOR
875304528020 Frigidaire Cable Tie
