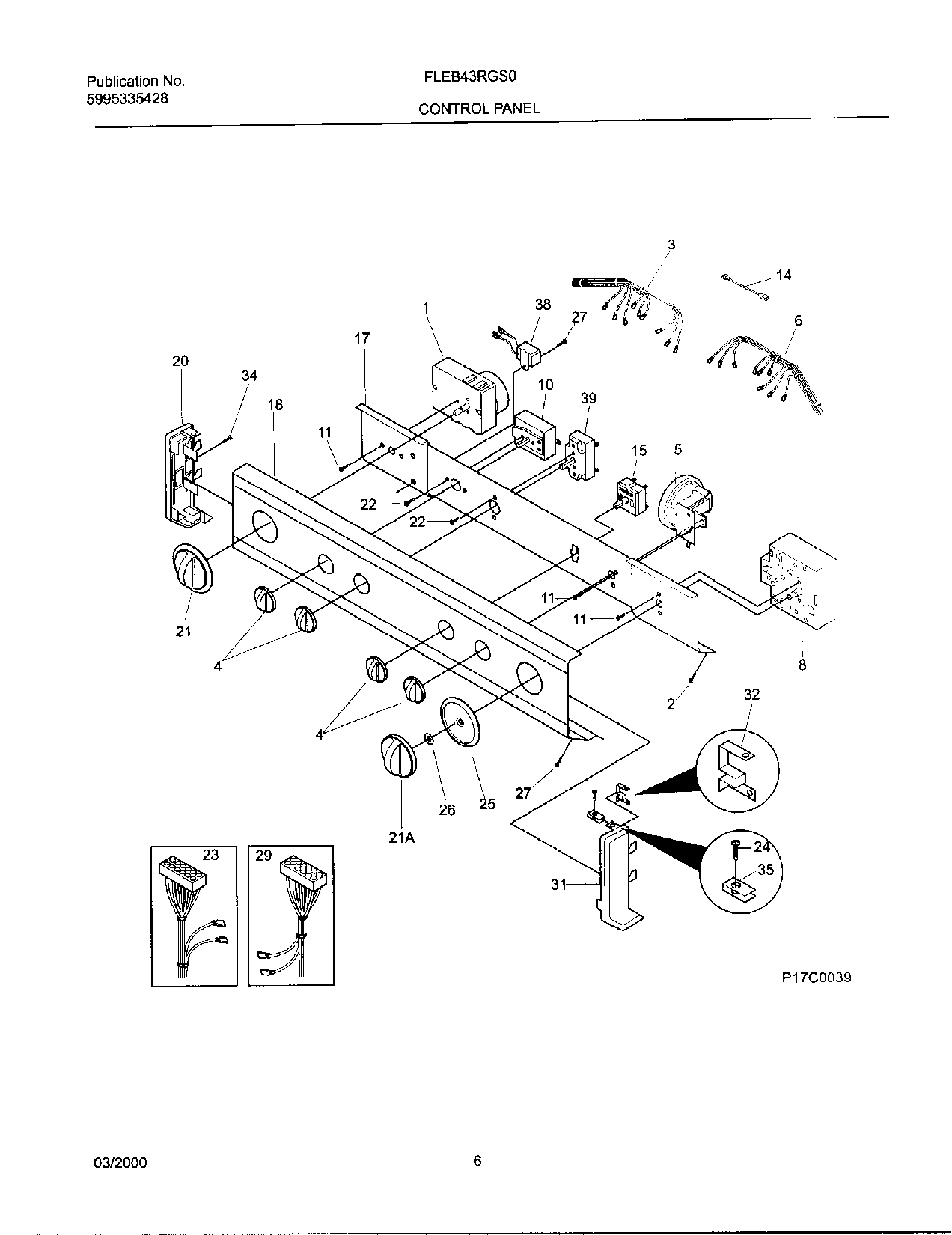

FLEB43RGS0 06 – CONTROL PANEL

FLEB43RGS0 06 – CONTROL PANEL

Written by

in

FLEB43RGS0 06 – CONTROL PANEL

Products

PositionProduct
NI5303161300 Frigidaire Strap
15303297177 Frigidaire Dryer Control Timer
2131168200 Frigidaire Dryer Screw
3WCI 131946400
4131858004 Frigidaire Control Knob, White
5WCI 131827400
6WCI 131668500
8WCI 131462300
10134399700 Frigidaire Washer Switch
11218359202 Frigidaire Refrigerator Screw
14RESISTOR-POWER, 4.4K
15WCI 131620800
17WCI 131712711
18WCI 131933400
20WCI 131288101
21131859104 Frigidaire Dryer Timer Knob
21AWCI 5303211165
22WCI 3161259
23WCI 131753200
24134156200 Frigidaire Screw
25WCI 5303319285
26SPACER-TIMER-SHAFT
27SCREW (2)
29WCI 131778700
31WCI 131288211
32WCI 3204357
34131243700 Frigidaire Screw
35CLIP (8)
38WCI 5303286537
39WCI 131753000
