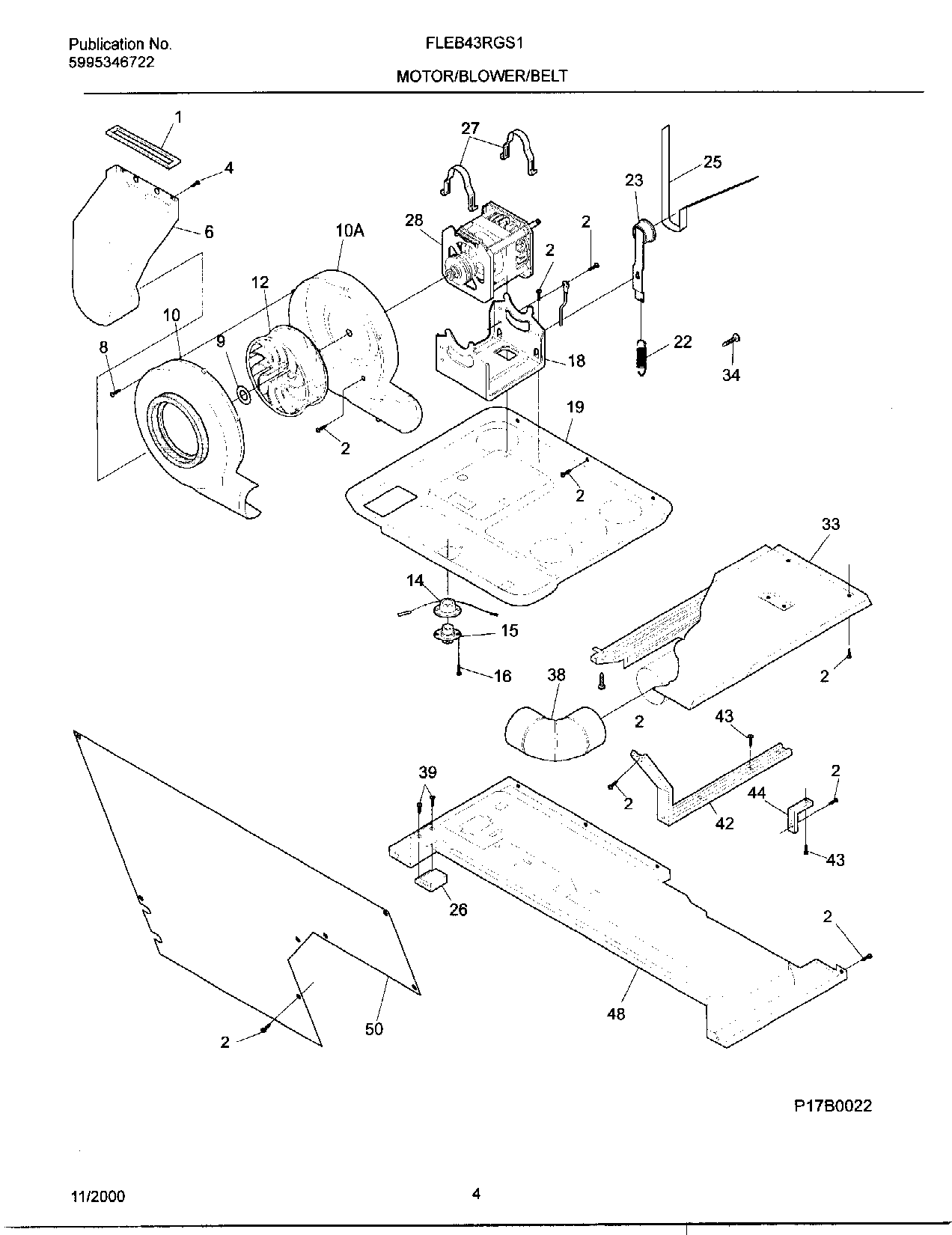

FLEB43RGS1 04 – MOTOR/BLOWER/BELT

Products

Position	Product
NI	134101400 Frigidaire Dryer Kit Terminal Block
NI	WCI 5303208586
1	131295200 Frigidaire Seal
2	131168200 Frigidaire Dryer Screw
4	131362400 Frigidaire Fastener
6	5304521121 Frigidaire Duct
8	SCREW (6)
9	5304488479 Frigidaire Washer Hose Clamp
10	5304485558 Frigidaire Blower Housing Assembly, Front & Rear
10A	WCI 131575200
12	BLOWER WHEEL
14	WCI 131658100
15	3204307 Frigidaire Dryer Thermostat Control, L135
16	134178901 Frigidaire Screw
18	CRADLE & STUD
19	WCI 131363901
22	3205241 Frigidaire Idler Spring
23	IDLER ARM ASSY
25	BELT-DRYER LC
26	BLOCK-SUPPORT
27	WCI 131419800
28	5303937189 Frigidaire Drive Motor with Blower Housing
33	WCI 131731401
34	131205300 Frigidaire Screw
38	ELBOW
39	131205100 Frigidaire Screw
42	BRACKET (2)
43	SCREW 12-24 X .63 HEX HD
44	3204326 Frigidaire Bracket Assembly
48	137455500 Frigidaire Lower Pan Assembly
50	SAFETY COVER
