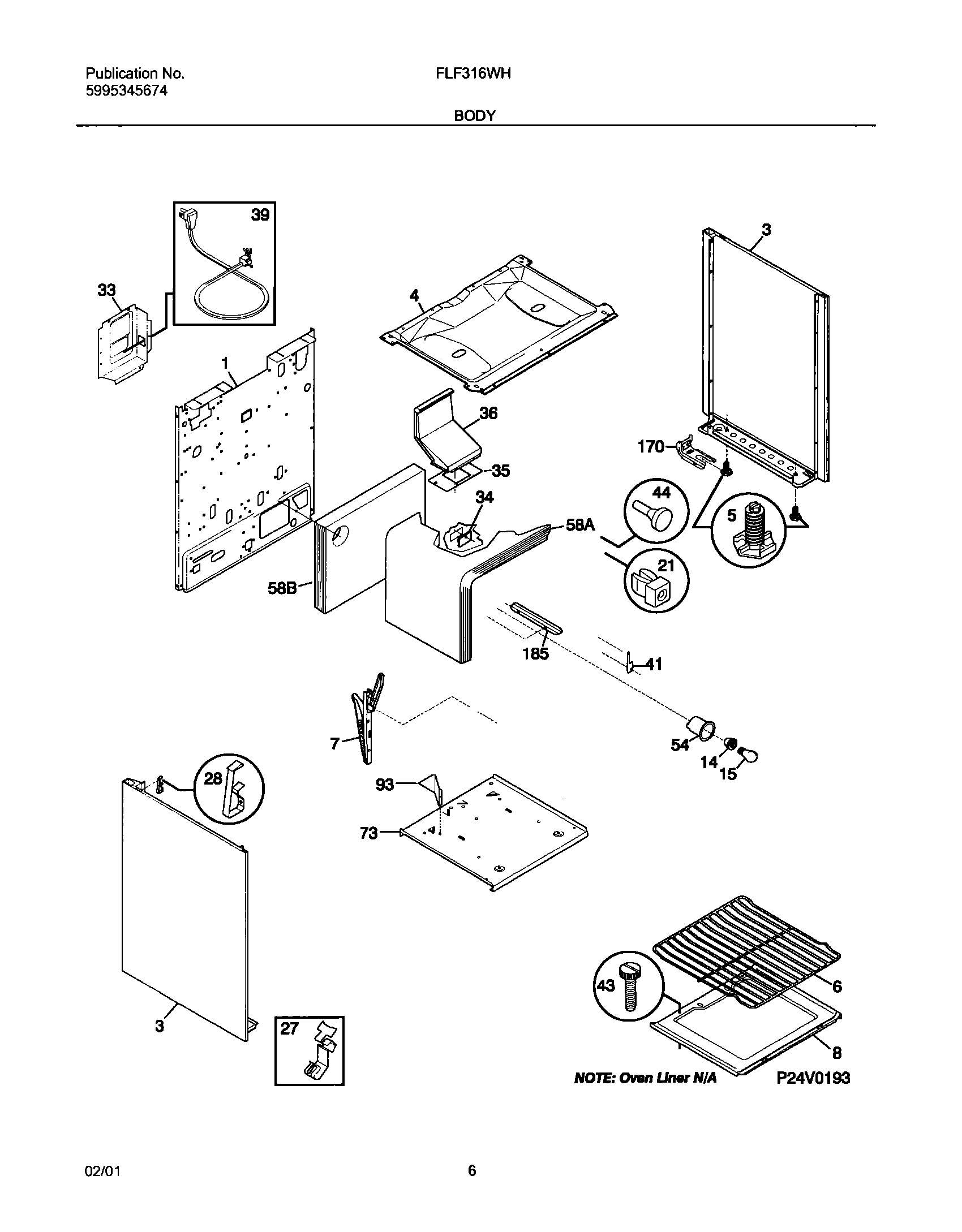

FLF316WHTA 07 – BODY

FLF316WHTA 07 – BODY

Written by

in

FLF316WHTA 07 – BODY

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIWCI 316073400
NI316064600 Frigidaire Oven Support
NIScrew,cup pt ,8-18 x 0.375 ,chrome
1WCI 316029416
3WCI 316081037
3WCI 316081036
4WCI 316067206
5WCI 316129200
6316067902 Frigidaire Oven Rack
7HINGE-OVEN DOOR,ASSEMBLY
8PANEL-OVEN BOTTOM
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
285303289684 Frigidaire FASTENER
33WCI 316055600
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36316204402 Frigidaire Oven Flue
395304515659 Frigidaire Oven Power Cord
41WCI 3131570
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
54WCI 5303271606
58BINSUL – OVEN BACK (NON-ILLUSTRATED)
58AINSULATION, OVEN WRAPPER
73WCI 316109902
93WCI 316110000
170316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170316116000 Frigidaire Screw
170316112500 Frigidaire Oven Template
185316112900 Frigidaire SHIELD
