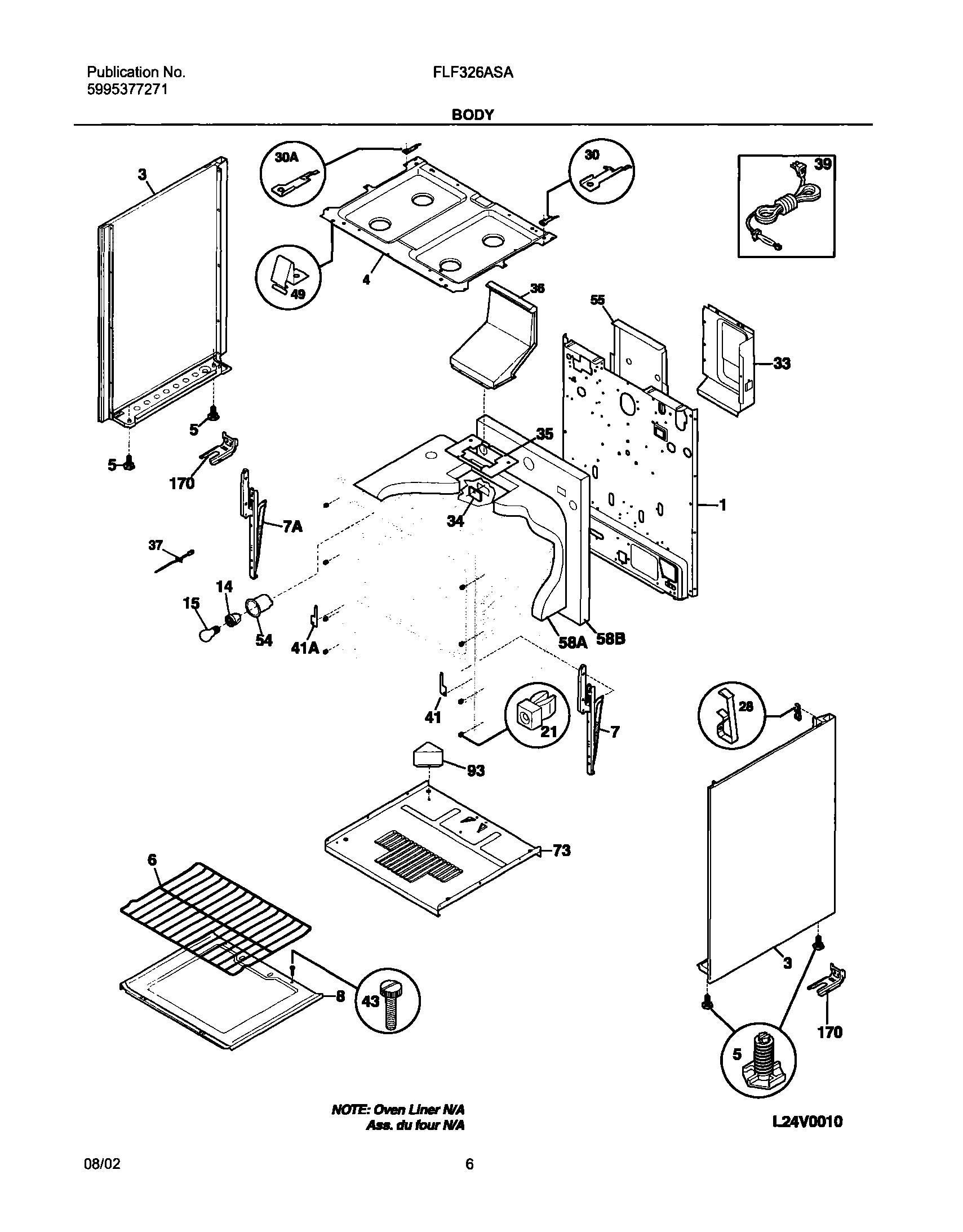

FLF326ASA 07 – BODY

FLF326ASA 07 – BODY

Written by

in

FLF326ASA 07 – BODY

Products

PositionProduct
NI316064600 Frigidaire Oven Support
NI5303285179 Frigidaire Oven Door Screw
NI5303271648 Frigidaire Oven Screw
NIWCI 5303280311
NI5303321319 Frigidaire Refrigerator White Touch Up Paint
NIWCI 316253302
NIScrew,cup pt ,8-18 x 0.375 ,chrome
1WCI 316029416
3WCI 316230103
3WCI 316230102
4WCI 316201402
5WCI 316129200
6316067902 Frigidaire Oven Rack
7AWCI 316205009
7WCI 316205008
8PANEL-OVEN BOTTOM
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
28CLIP-WIRE
30AWCI 316217701
30316217700 Frigidaire Oven Bracket
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36316204402 Frigidaire Oven Flue
37316233903 Frigidaire Range Oven Temperature Sensor
395304515659 Frigidaire Oven Power Cord
41WCI 316233400
41AWCI 316233500
43316282700 Frigidaire Oven Screw
49WCI 316234200
54WCI 5303271606
55WCI 5303289358
58AINSULATION, OVEN WRAPPER
58BINSUL – OVEN BACK (NON-ILLUSTRATED)
73WCI 316109902
93WCI 316110000
170316112500 Frigidaire Oven Template
170316116000 Frigidaire Screw
170316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
