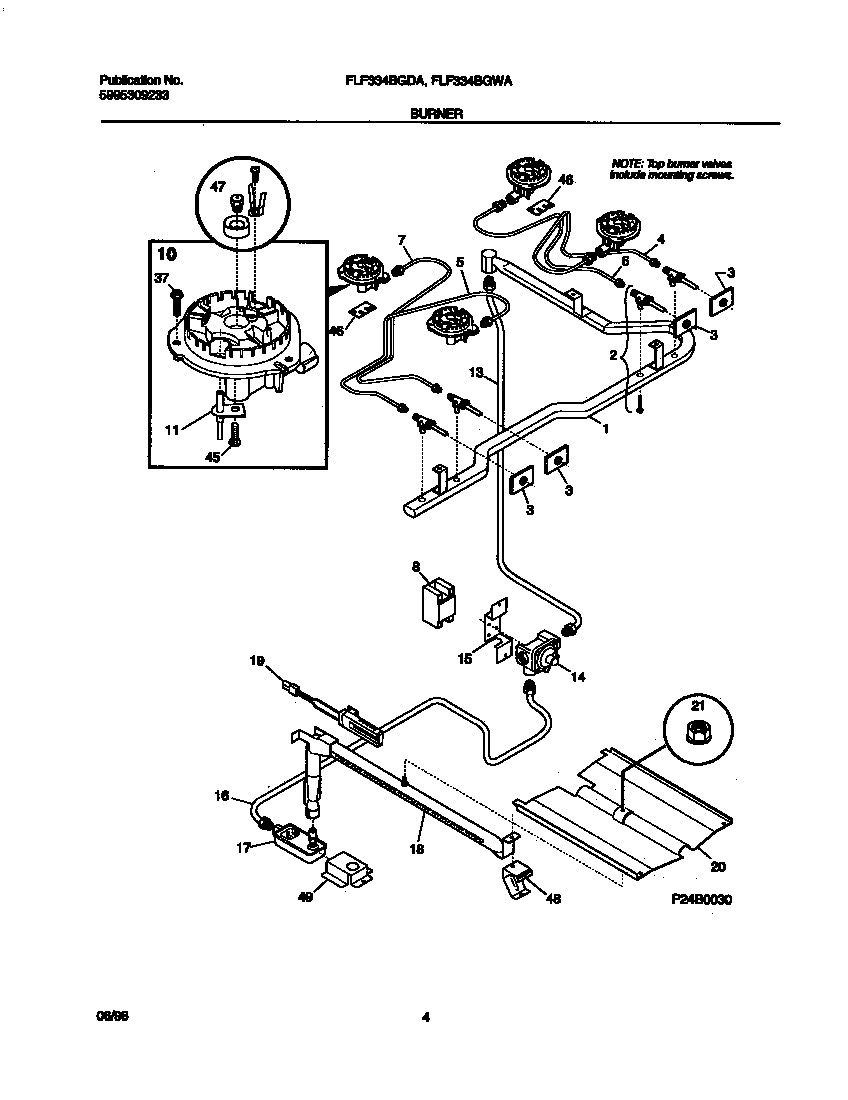

FLF334BGWA 03 – BURNER

FLF334BGWA 03 – BURNER

Written by

in

FLF334BGWA 03 – BURNER

Products

PositionProduct
*22928316021104 Frigidaire Oven Screw Assembly
*229255303271648 Frigidaire Oven Screw
*22927HARNESS-WIRING, MODULE/IGNITER (NON-ILLUSTRATED)
*22926316048200 Frigidaire Oven Screw
1WCI 316066201
2WCI 316098704
3SWITCH-IGNITOR
4WCI 316059612
5316059613 Frigidaire Oven Tube-LF
6WCI 316059614
7316059615 Frigidaire Oven Tube
85304505695 Frigidaire Oven Module
10WCI 316108000
13WCI 316065005
14WCI 316091708
15316091600 Frigidaire Oven Bracket
16316065006 Frigidaire Tube P1
173203459 Frigidaire Oven Range Dual Gas Safety Valve
18WCI 3131439
195303935066 Frigidaire Oven Flat Igniter 17" Leads
20AWCI 3203265
20BWCI 5303288409
215303013272 Frigidaire Oven Nut
46WCI 316074700
48WCI 3018603
49BRKT.-VALVE
