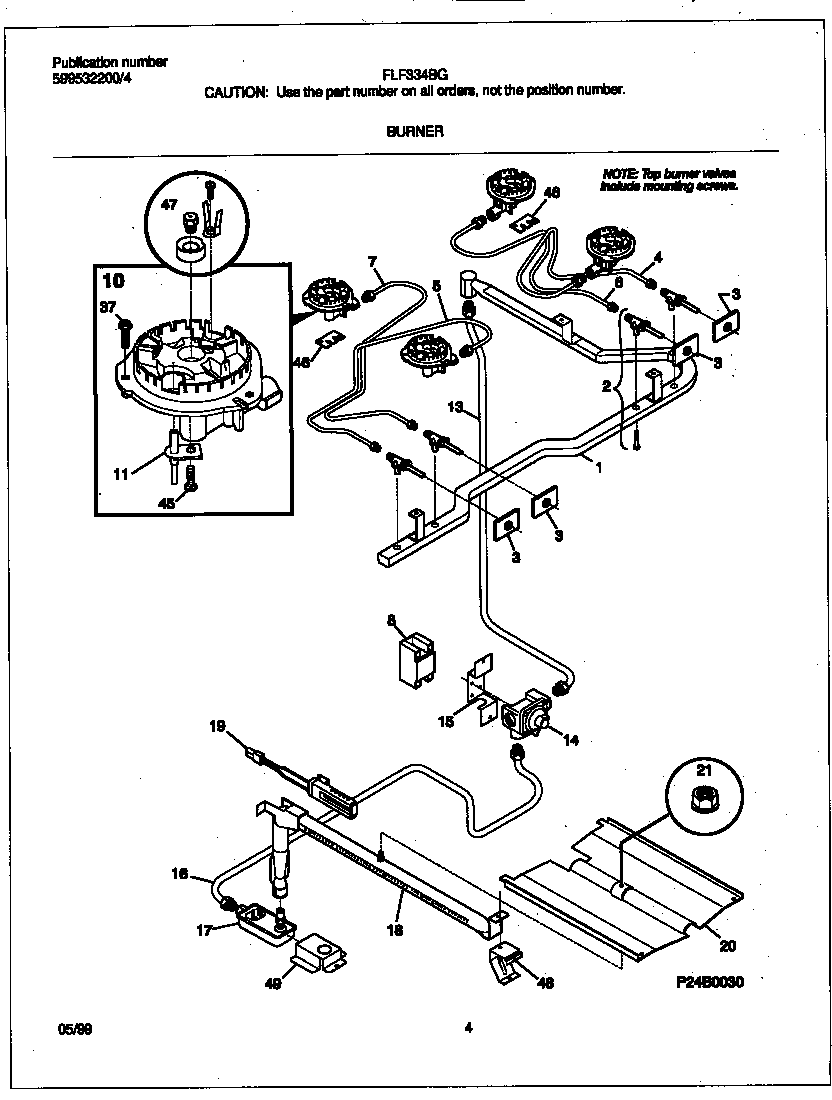

FLF334BGWE 03 – BURNER

FLF334BGWE 03 – BURNER

Written by

in

FLF334BGWE 03 – BURNER

Products

PositionProduct
*69810316021104 Frigidaire Oven Screw Assembly
*698075303271648 Frigidaire Oven Screw
*69808316048200 Frigidaire Oven Screw
*69809HARNESS-WIRING, MODULE/IGNITER (NON-ILLUSTRATED)
1WCI 316113801
2WCI 316098704
3SWITCH-IGNITOR
4WCI 316059612
5316059613 Frigidaire Oven Tube-LF
6WCI 316059614
7316059615 Frigidaire Oven Tube
85304505695 Frigidaire Oven Module
10WCI 316108000
13WCI 316065005
14WCI 316091708
15316091600 Frigidaire Oven Bracket
16316065006 Frigidaire Tube P1
173203459 Frigidaire Oven Range Dual Gas Safety Valve
18316114300 Frigidaire Oven Burner
195303935066 Frigidaire Oven Flat Igniter 17" Leads
20WCI 3203265
215303013272 Frigidaire Oven Nut
37316069301 Frigidaire Oven Burner Mounting Primary Screw
46WCI 316074700
48WCI 3018603
49BRKT.-VALVE
