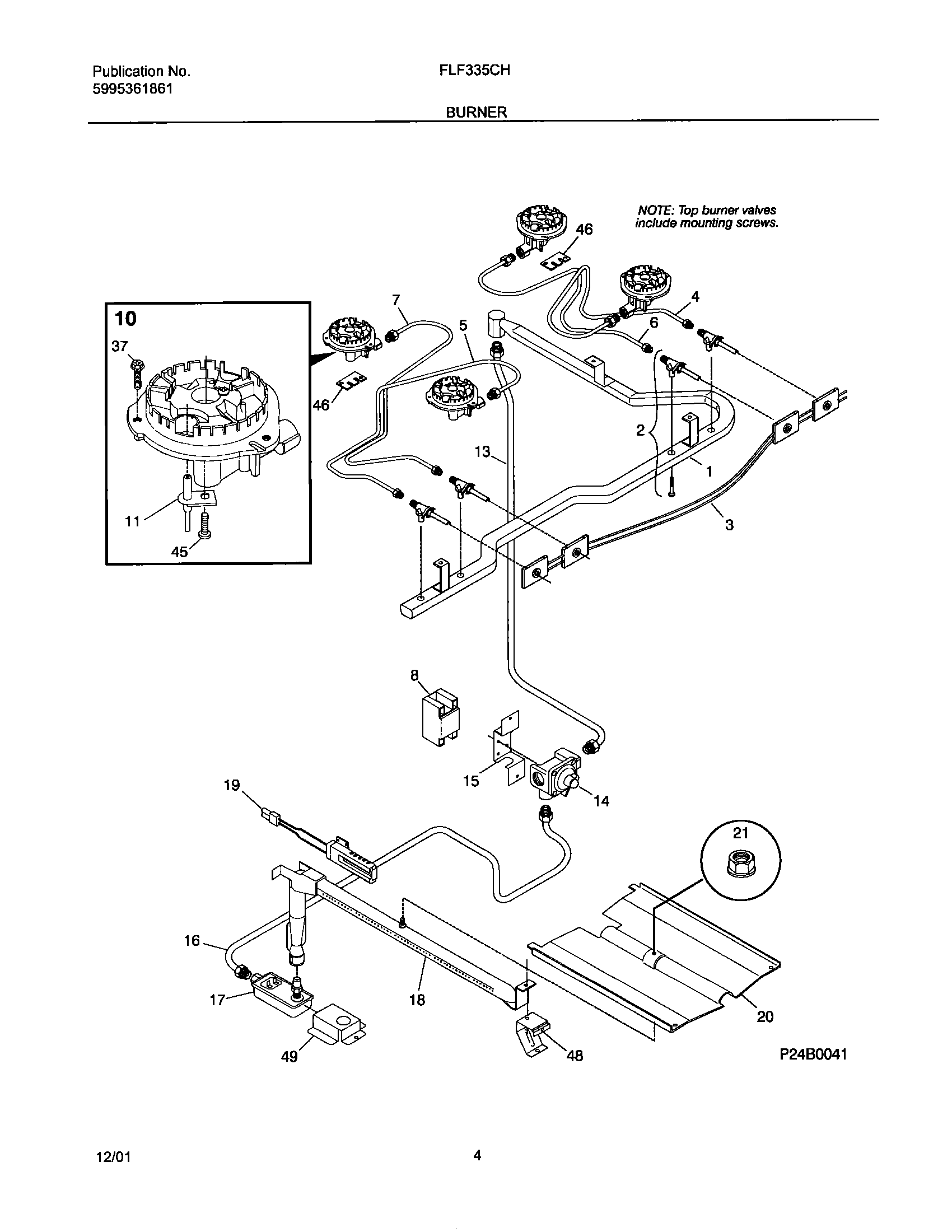

FLF335CHTB 05 – BURNER

FLF335CHTB 05 – BURNER

Written by

in

FLF335CHTB 05 – BURNER

Products

PositionProduct
NI316021104 Frigidaire Oven Screw Assembly
NI316134300 Frigidaire Oven Screw
NIHARNESS-WIRING, MODULE/IGNITER (NON-ILLUSTRATED)
1WCI 316134501
2WCI 316134103
3WCI 316001827
4WCI 316059612
5316059613 Frigidaire Oven Tube-LF
6WCI 316059614
7316059615 Frigidaire Oven Tube
85304505695 Frigidaire Oven Module
10WCI 316108000
11316011200 Frigidaire Oven Top Burner Igniter
13WCI 316065005
14WCI 316091708
15316091600 Frigidaire Oven Bracket
16316065006 Frigidaire Tube P1
173203459 Frigidaire Oven Range Dual Gas Safety Valve
18316114300 Frigidaire Oven Burner
195303935066 Frigidaire Oven Flat Igniter 17" Leads
20WCI 3203265
215303013272 Frigidaire Oven Nut
37316069301 Frigidaire Oven Burner Mounting Primary Screw
455303271648 Frigidaire Oven Screw
46WCI 316074700
48WCI 3018603
49BRKT.-VALVE
