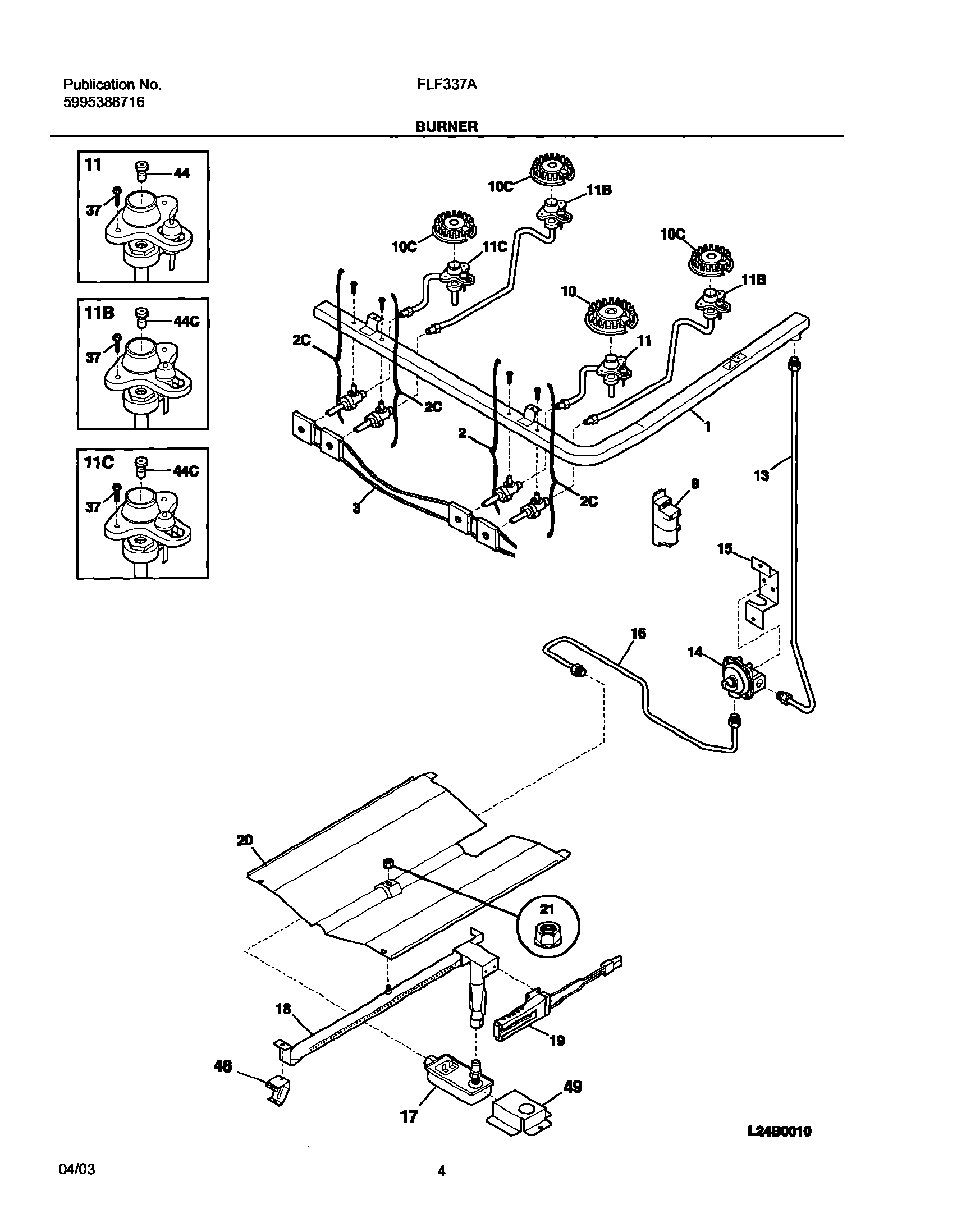

FLF337AUD 05 – BURNER

Products

Position	Product
NI	316021104 Frigidaire Oven Screw Assembly
NI	WIRING HARNESS,IGNITOR MODU
NI	316134300 Frigidaire Oven Screw
NI	5303271648 Frigidaire Oven Screw
1	WCI 316204000
2C	WCI 316202905
2	WCI 5303935199
3	IGNITOR SWITCH WIRE HARNESS
8	5304505695 Frigidaire Oven Module
10C	316212400 Frigidaire Oven Primary Burner
10	WCI 316212300
11	WCI 316237804
11C	WCI 316237803
11B	WCI 316237703
13	WCI 316207000
14	WCI 316091708
15	316091600 Frigidaire Oven Bracket
16	316065006 Frigidaire Tube P1
17	3203459 Frigidaire Oven Range Dual Gas Safety Valve
18	316114300 Frigidaire Oven Burner
19	5303935066 Frigidaire Oven Flat Igniter 17" Leads
20	WCI 3203265
21	5303013272 Frigidaire Oven Nut
37	316240600 Frigidaire Igniter Mounting Screw
44	WCI 316237905
44C	WCI 316237906
48	WCI 3018603
49	BRKT.-VALVE
