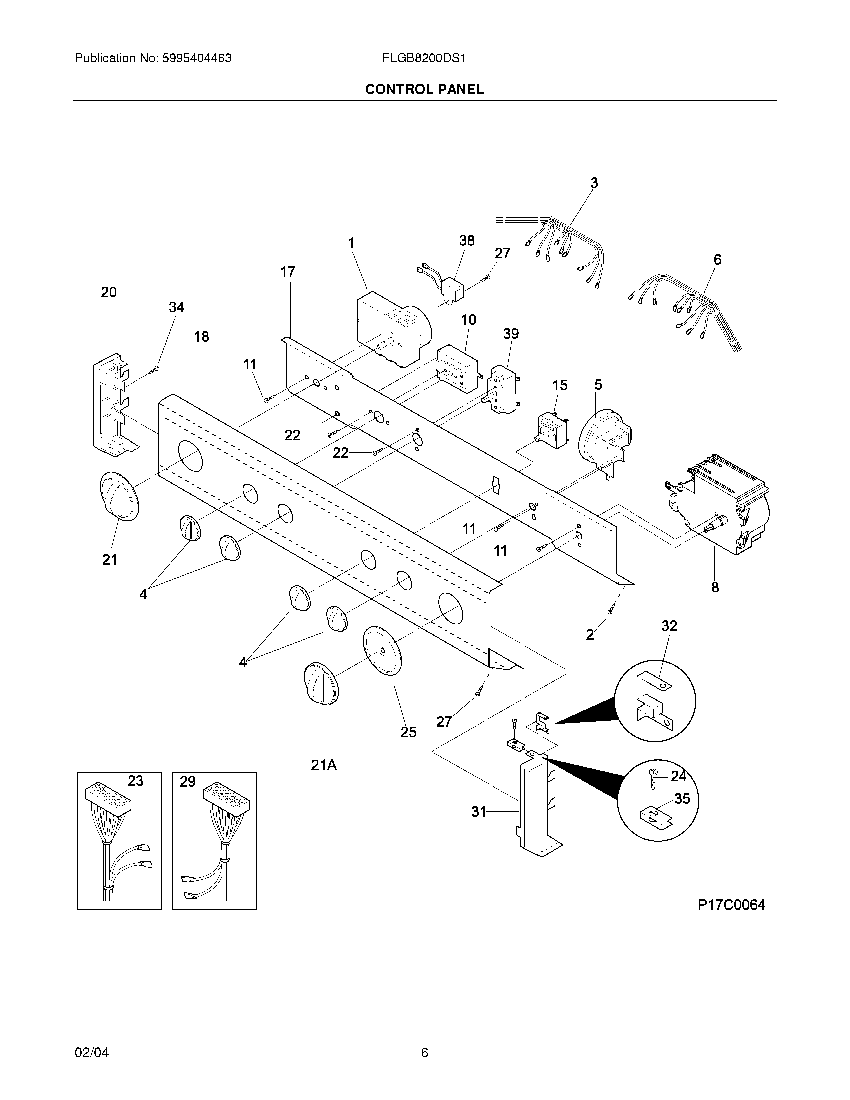

FLGB8200DS1 07 – CONTROL PANEL

Products

Position	Product
NI	134101400 Frigidaire Dryer Kit Terminal Block
NI	131209800 Frigidaire Clamp
NI	5303161300 Frigidaire Strap
1	131583801 Frigidaire Dryer P-1 Timer
2	131168200 Frigidaire Dryer Screw
3	WCI 131703600
4	134844470 Frigidaire Washer Rotary Knob
5	134422700 Frigidaire Switch
6	WCI 134122200
8	WCI 134049600
10	134399700 Frigidaire Washer Switch
11	218359202 Frigidaire Refrigerator Screw
15	WCI 131620800
17	WCI 134135100
18	WCI 134351600
20	WCI 131288101
21A	WCI 134043200
21	134043000 Frigidaire Timer Control Knob
22	WCI 3161259
23	WCI 131848700
24	134156200 Frigidaire Screw
25	WCI 131976804
27	131892100 Frigidaire Screw
29	WCI 134113400
31	WCI 131288211
32	WCI 3204357
34	131243700 Frigidaire Screw
35	CLIP (8)
38	WCI 5303286537
39	WCI 131753000
