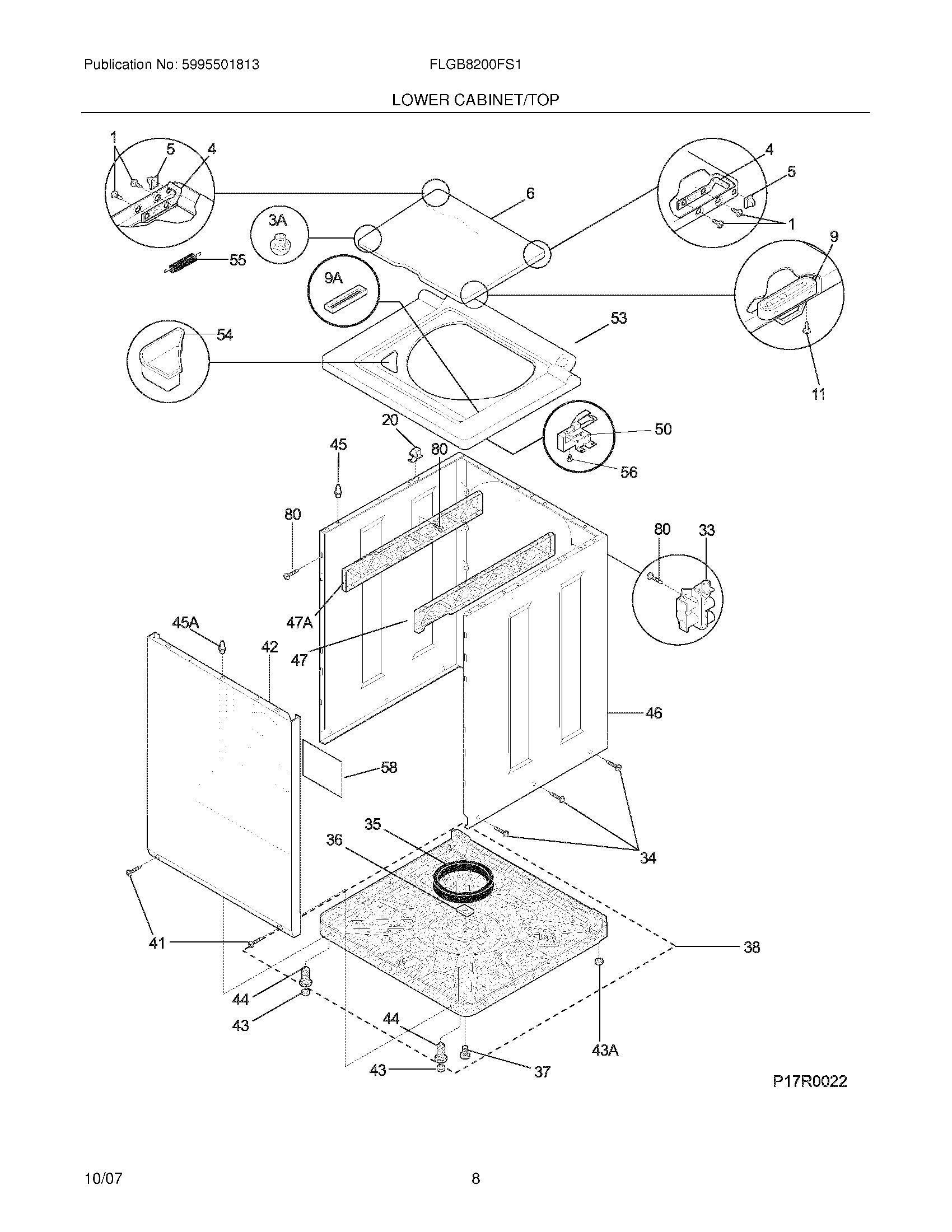

FLGB8200FS1 09 – LOWER CABINET/TOP

Products

Position	Product
1	134203900 Frigidaire Scr 6-32X.337 Pph D
3A	134075500 Frigidaire Bumper-LID
4	5304489657 Frigidaire Bar Hinge Kit
5	5303208743 Frigidaire Grommet
6	5303212872 Frigidaire Lid
9A	WCI 134768500
9	131390000 Frigidaire Door Catch-Strike
11	3204368 Frigidaire Screw-Strike
20	3204374 Frigidaire Pin
33	134890600 Frigidaire Valve
34	131205500 Frigidaire Screw
35	SNUBBER RING
36	SHIPPING BLOCK
37	WCI 131658900
38	WCI 5303311213
41	131302800 Frigidaire Drum Vane Screw
42	WCI 131104303
43	WCI 131422100
43A	131422200 Frigidaire P-1 Self Level Leg Pad
44	134548800 Frigidaire Washer Leg Levelling
45	WCI 131346400
45A	131346401 Frigidaire Pin
46	WCI 134046600
47	MARRIAGE BRACKET-RH
47A	MARRIAGE BRACKET-LH
50	Lid lock w/external sw
53	WCI 131452510
54	WCI 3204394
55	134890500 Frigidaire Spring
56	131243700 Frigidaire Screw
58	WCI 131744202
80	131168200 Frigidaire Dryer Screw
