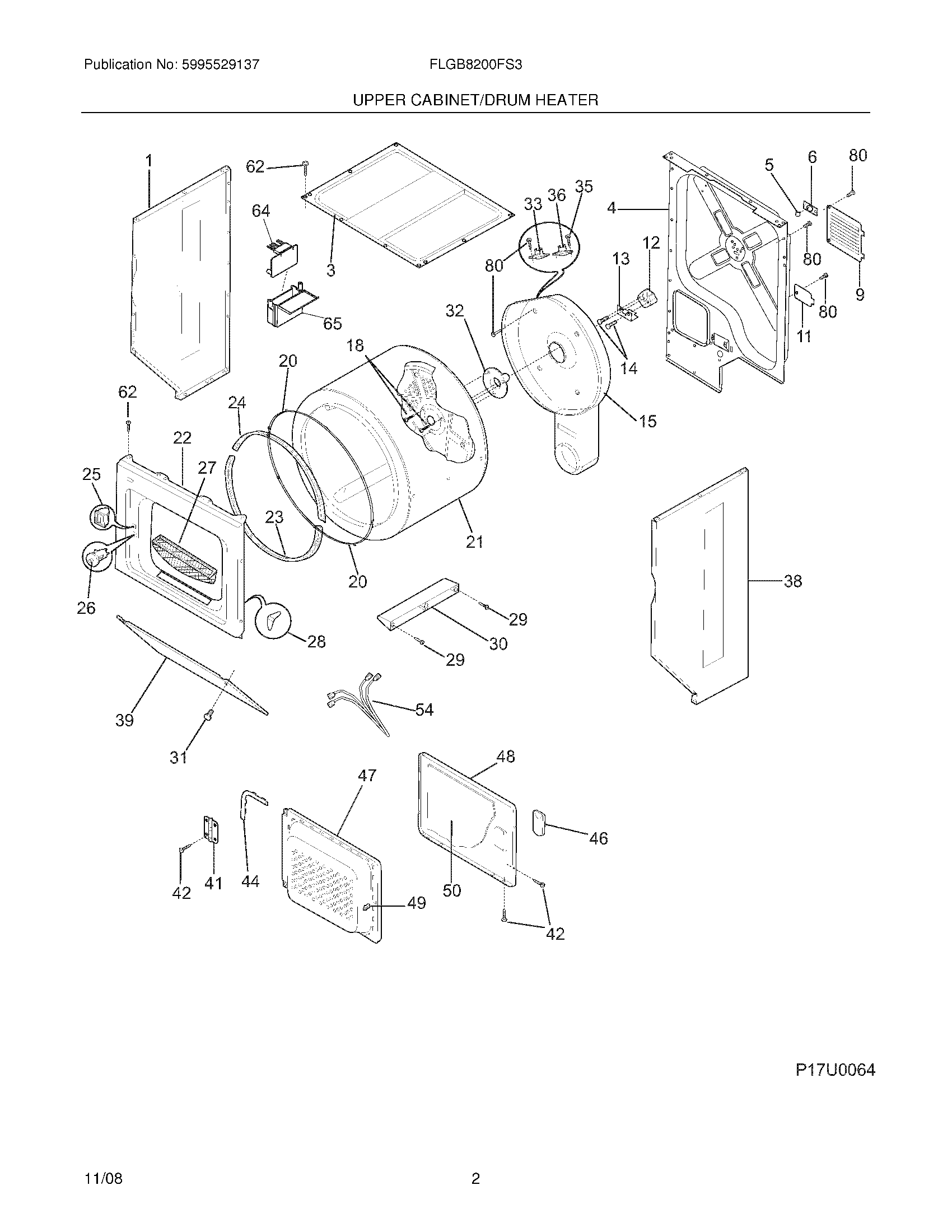

FLGB8200FS3 03 – UPPER CABINET/DRUM HEATER

FLGB8200FS3 03 – UPPER CABINET/DRUM HEATER

Written by

in

FLGB8200FS3 03 – UPPER CABINET/DRUM HEATER

Products

PositionProduct
NIWCI 137061900
NIWCI 134805600
NI137576600 Frigidaire Dryer Hole Plug Light
1WCI 131084710
3131883301 Frigidaire Panel
4WCI 134799902
55303281019 Frigidaire Ball Assembly
65303281020 Frigidaire Ball Clip
9PANEL-MOTOR ACCESS
11COVER-TERM BLOCK
12131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
13131724301 Frigidaire Dryer Drum Bearing Bracket
14131205400 Frigidaire Screw
15WCI 137137200
18131168200 Frigidaire Dryer Screw
20137513300 Frigidaire Dryer Drum Glide
21134122532 Frigidaire P-1 Assembly Drum Galv + O/S3 Xxx
22WCI 131636237
235303937183 Frigidaire Dryer Lower Front Felt Seal
245303937182 Frigidaire Dryer Drum Upper Felt Seal with Adhesive
25131658800 Frigidaire Dryer Door Catch Repair Kit
26134813600 Frigidaire Dryer Door Switch
27LINT FILTER
28WCI 134440000
29131382300 Frigidaire Screw-VANE
30137552900 Frigidaire Vane
31131202300 Frigidaire Screw
32131777700 Frigidaire Dryer Bearing Drum
335304406099 Frigidaire Safety Thermostat
35131892100 Frigidaire Screw
36134120900 Frigidaire Dryer Limiter Thermal
38WCI 131084810
39137546910 Frigidaire Panel
41134222900 Frigidaire Dryer Door Hinge
42134156200 Frigidaire Screw
44137551901 Frigidaire Gasket
46131789400 Frigidaire Handle
47137365110 Frigidaire Panel
48DOOR-OUTER, WHITE
495303207102 Frigidaire Door Strike
50134535300 Frigidaire Insulator
54WCI 134846300
62131302800 Frigidaire Drum Vane Screw
64WCI 134810610
65WCI 131894600
