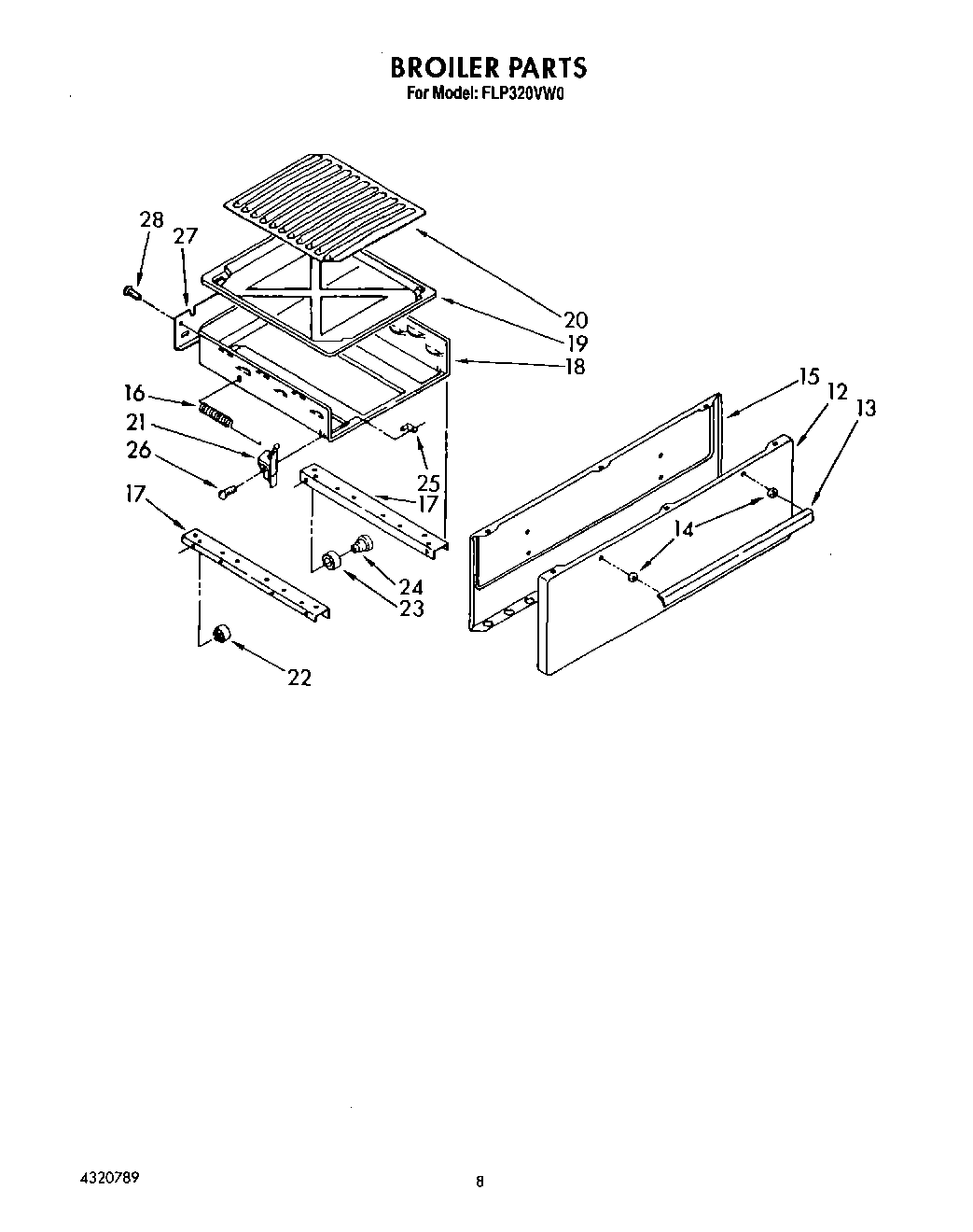

| 12 | Panel, Broiler (White) |
| 12 | Panel, Broiler (Almond) |
| 13 | Handle |
| 14 | Spacer (4) |
| 15 | Liner, Broiler Door |
| 16 | Spring (2) |
| 17 | Track, Upper (2) |
| 18 | Carriage, Broiler |
| 19 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 20 | Grid |
| 21 | WP308685 Whirlpool Microwave Screw |
| 21 | Hinge, Door (L.H.) |
| 21 | W10080180 Whirlpool Nut |
| 21 | Hinge, Door (R.H.) |
| 22 | Bumper, Nylon (4) |
| 23 | Roller (2) |
| 24 | Pin, Roller (2) |
| 25 | Plate (2) |
| 26 | Screw (2) |
| 27 | Backer, Carriage |
| 28 | Screws (3) |
