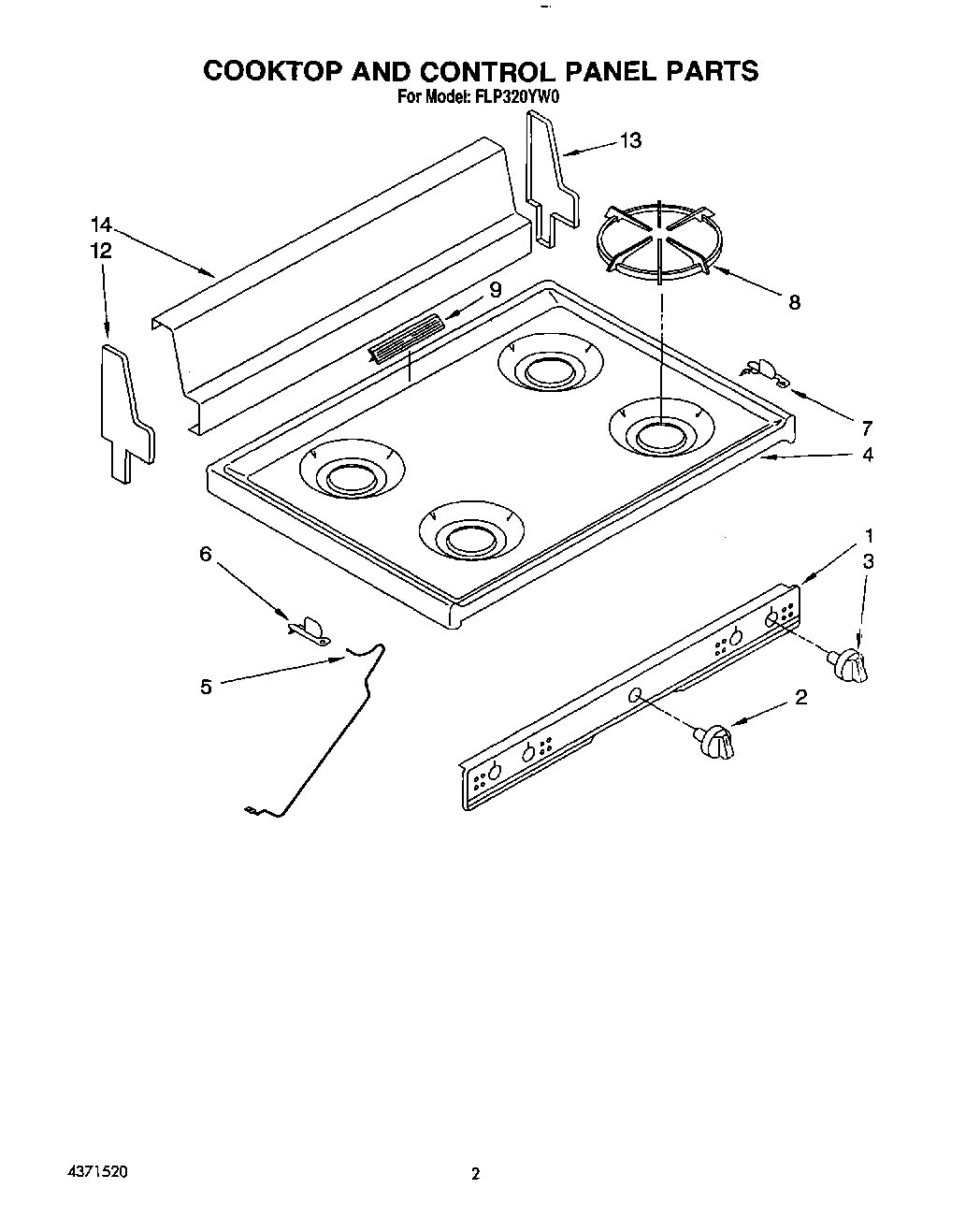

FLP320YG0 02 – COOKTOP AND CONTROL PANEL, LIT/OPTI

Products

PositionProduct
Installation, Instructions
List, Repair Parts
Guide, Use & Care
1Panel, Control
2Knob, Thermostat
3Knob, Burner (4)
4Top, Main (White)
4Top, Main (Gold)
4Top, Main (Almond)
5Rod, Support Top
6Bracket, Hinge LH
7Bracket, Hinge RH
8Grate, Burner (4)
9Cover, Vent
12Endcap LH
13Endcap RH
14Panel, Backguard
