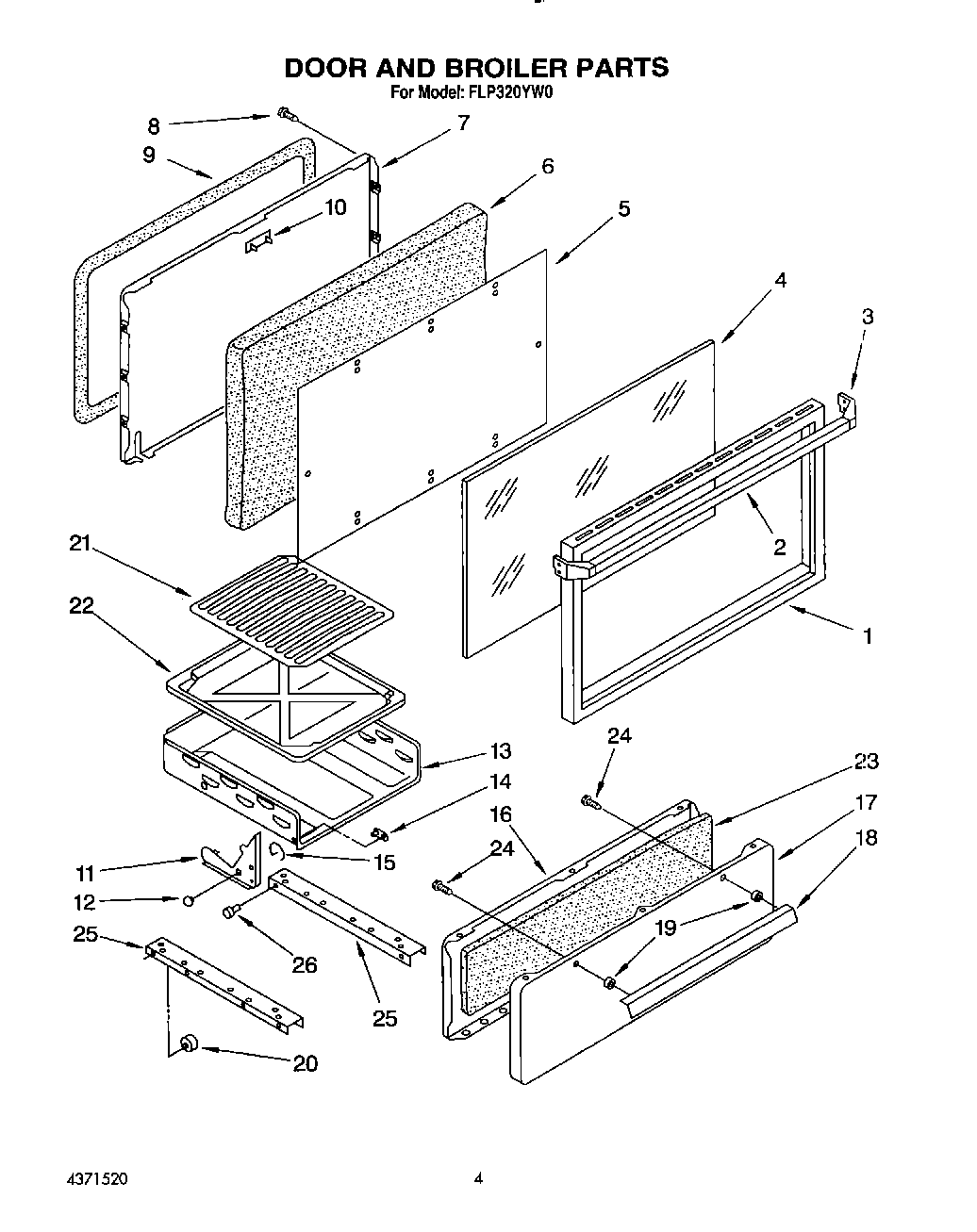

FLP320YW0 04 – DOOR AND BROILER

FLP320YW0 04 – DOOR AND BROILER

Written by

in

FLP320YW0 04 – DOOR AND BROILER

Products

PositionProduct
1Trim, Door
2Handle, Door
3Endcap (2)
4Glass, Door Blk
5Shield, Heat
6Insulation
7Liner, Oven Door
8Screw, Handle
9Seal, Door
10Cover, Door
11Bracket, Hinge (R.H.)
11Bracket, Hinge (L.H.)
12Fastener, Push Nut
13Body, Broiler
14Pin, Hinge (2)
15Spring, Broiler (R.H.)
15Spring, Broiler (L.H.)
16Liner, Broiler Door
17Panel, Drawer (Almond)
17Panel, Drawer (White)
17Panel, Drawer (Gold)
18Handle
19Spacer, Handle
20Glide, Drawer (6)
21Insert, Broiler Pan
22Pan, Broiler
23Insulation
24Screw, Handle (2)
25Channel, Broiler
26Button, Glide
