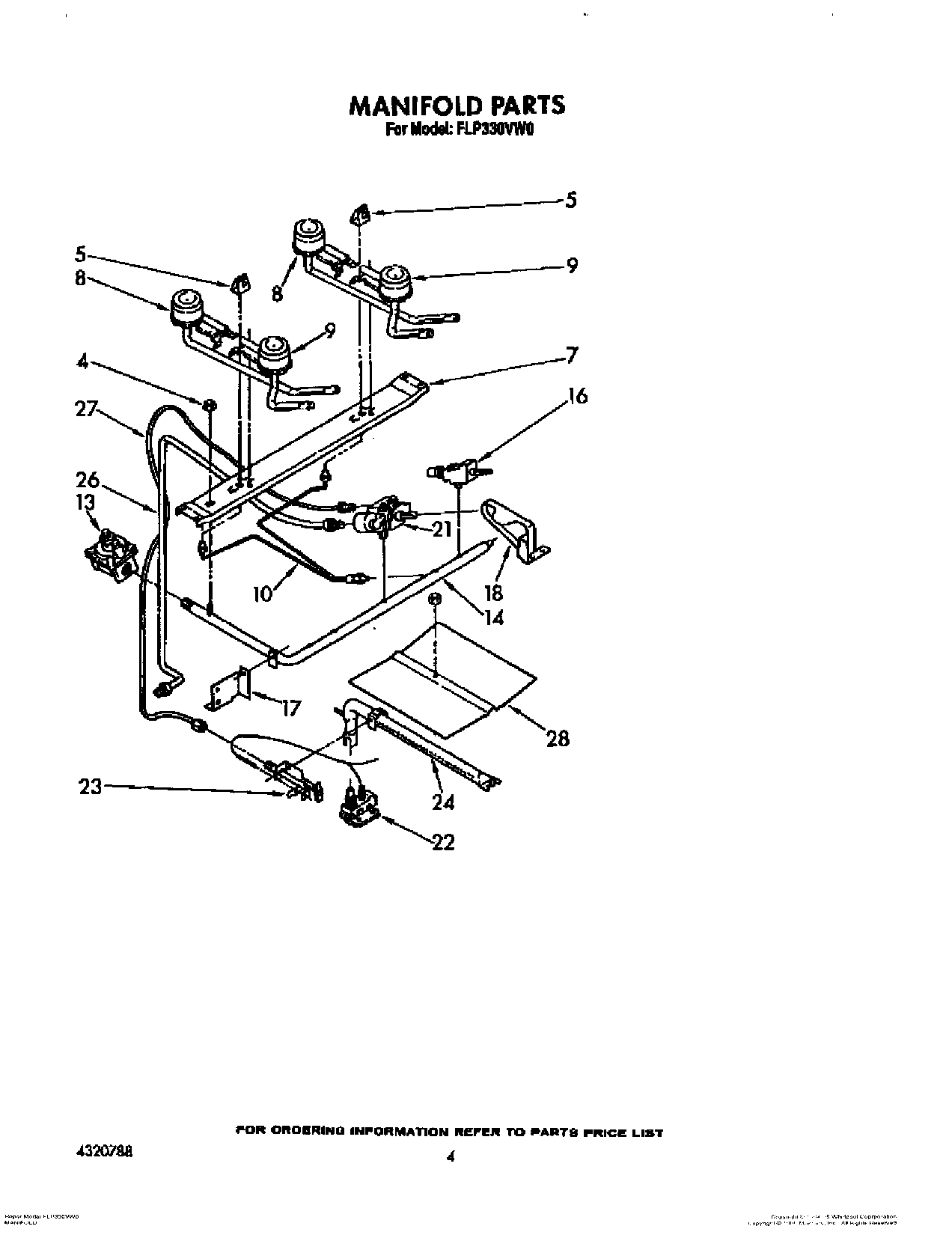

FLP330VL0 03 – MANIFOLD, LIT/OPTIONAL

Products

Position	Product
	List, Repair Parts
	Instructions, Installation
	Guide, Use & Care
4	Nut, Hex
5	Cover, Pilot (2)
7	Support, Burner
8	Burner, Rear (2)
9	Burner, Front (2)
9	Screw, 10-12 X 3/8 (2)
10	Tubing, Pilot (Incl. No. 6)
13	Regulator, Pressure
14	Manifold
16	Valve, 90~ (4) (Includes Ill. No. 33)
17	Support, Manifold (L.H.)
18	WP308685 Whirlpool Microwave Screw
18	Support, Manifold (R.H.)
21	Thermostat (Includes Ill. No. 32)
22	Valve, Safety
22	WP3387230 Whirlpool Screw
23	Screw, 10-24 X 1/4 (1)
23	Pilot
24	Burner, Oven
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
28	Spreader, Flame
