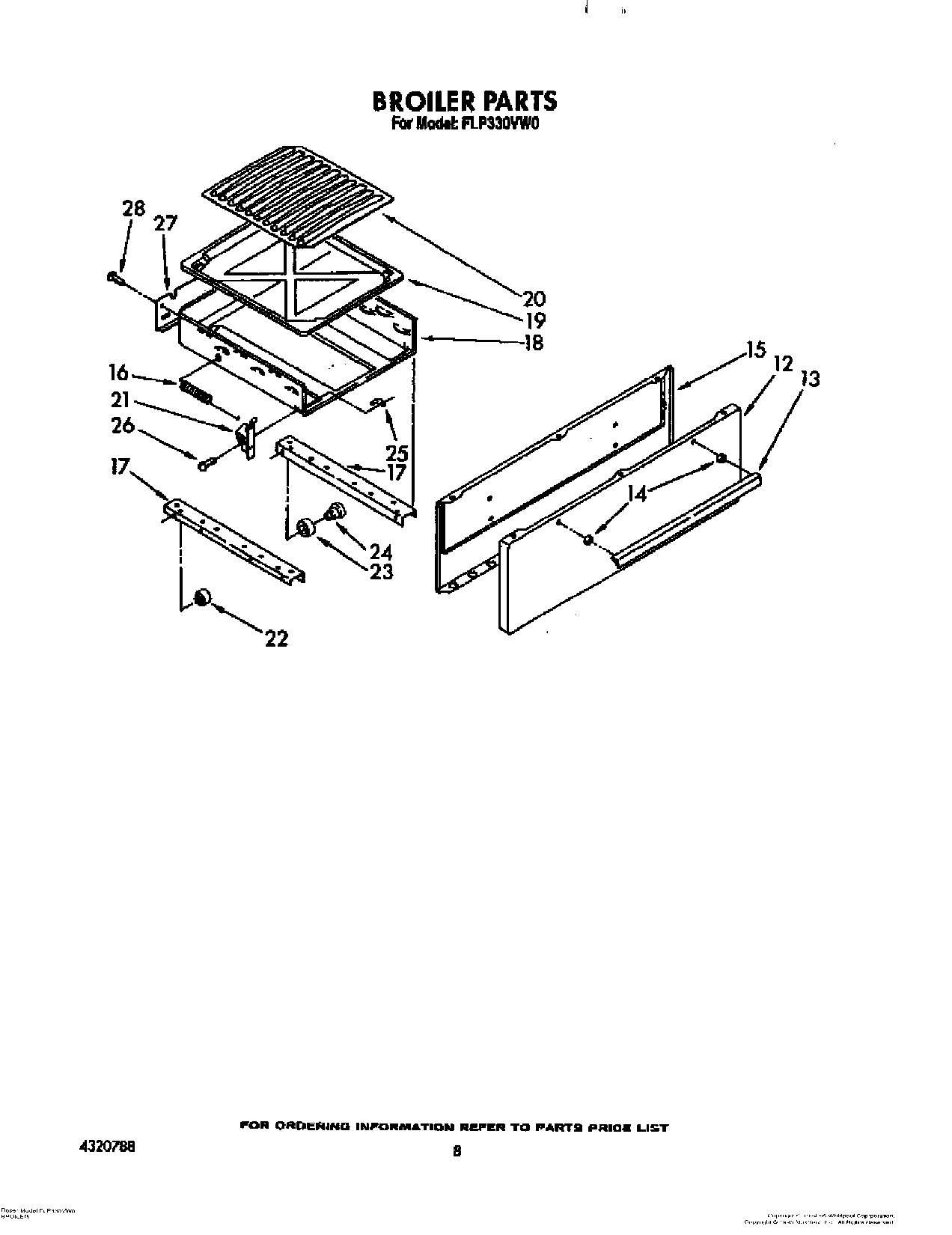

FLP330VL0 07 – BROILER

Products

Position	Product
12	Circuit Board
12	Panel, Broiler (White)
13	Handle
14	Spacer (4)
15	Liner, Broiler Door
16	Spring (2)
17	Track, Upper (2)
18	Carriage, Broiler
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Grid
21	WP308685 Whirlpool Microwave Screw
21	Hinge, Door (R.H.)
21	Hinge, Door (L.H.)
21	W10080180 Whirlpool Nut
22	Bumper, Nylon (4)
23	Roller (2)
24	Pin, Roller (2)
25	Plate (2)
26	Screw (2)
27	Backer, Carriage
28	Screws (3)
