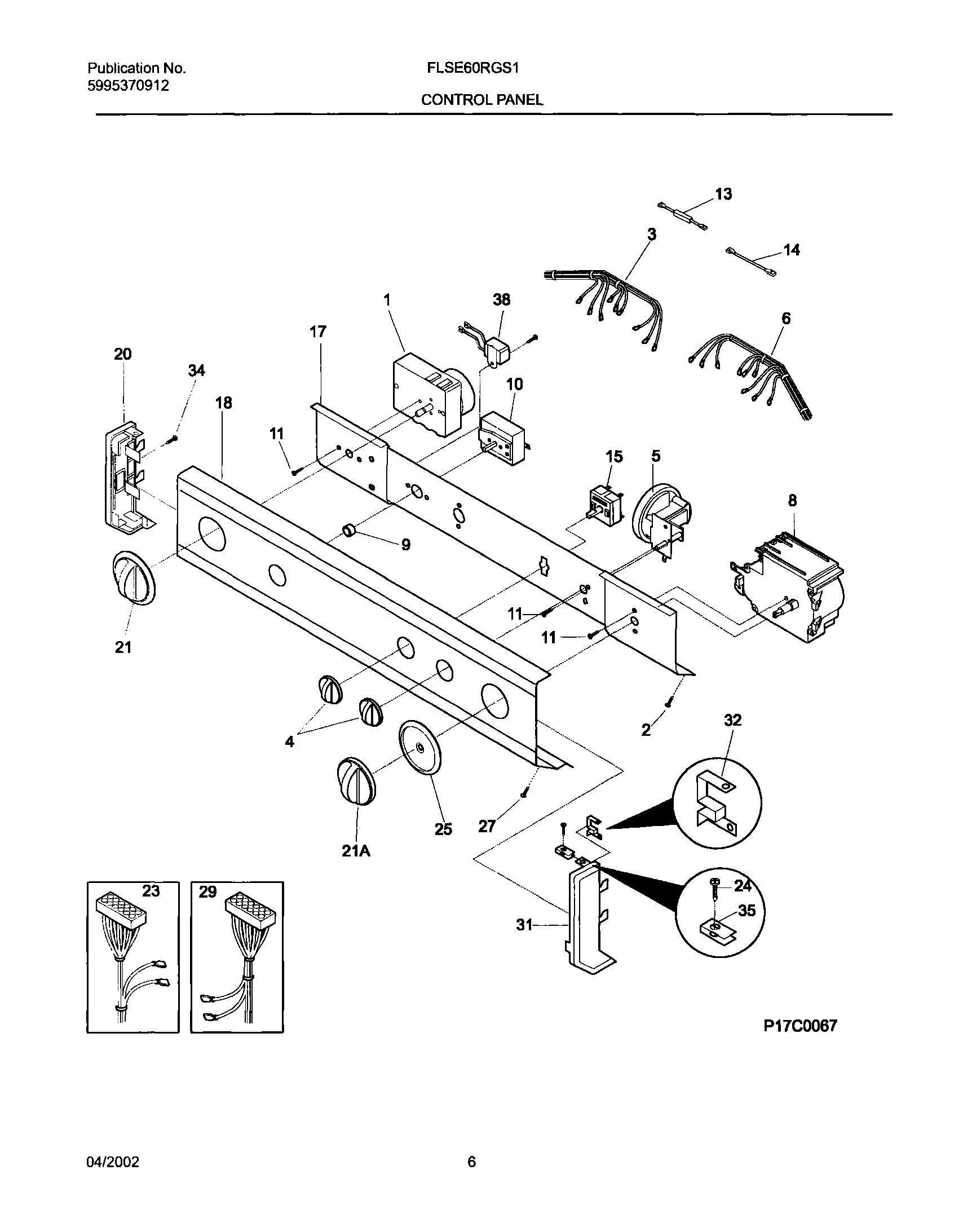

FLSE60RGS1 07 – CONTROL PANEL

FLSE60RGS1 07 – CONTROL PANEL

Written by

in

FLSE60RGS1 07 – CONTROL PANEL

Products

PositionProduct
NI5303161300 Frigidaire Strap
1131062300 Frigidaire Timer
2131168200 Frigidaire Dryer Screw
3WCI 131305700
4131873401 Frigidaire Washer Control Knob
5WCI 131827400
6WCI 134122200
8Timer,3-off
9WCI 131111501
10WCI 131628900
11218359202 Frigidaire Refrigerator Screw
13RESISTOR, 3.0K
14RESISTOR-POWER, 4.4K
15WCI 131620800
17WCI 131983410
18WCI 134033500
20WCI 131288101
21AWCI 131977201
21131873304 Frigidaire Dryer Timer Knob White
23WCI 134119400
24134156200 Frigidaire Screw
25WCI 131976801
27131892100 Frigidaire Screw
29WCI 134113400
31WCI 131288211
32WCI 3204357
34131243700 Frigidaire Screw
35CLIP (8)
38WCI 5303286537
