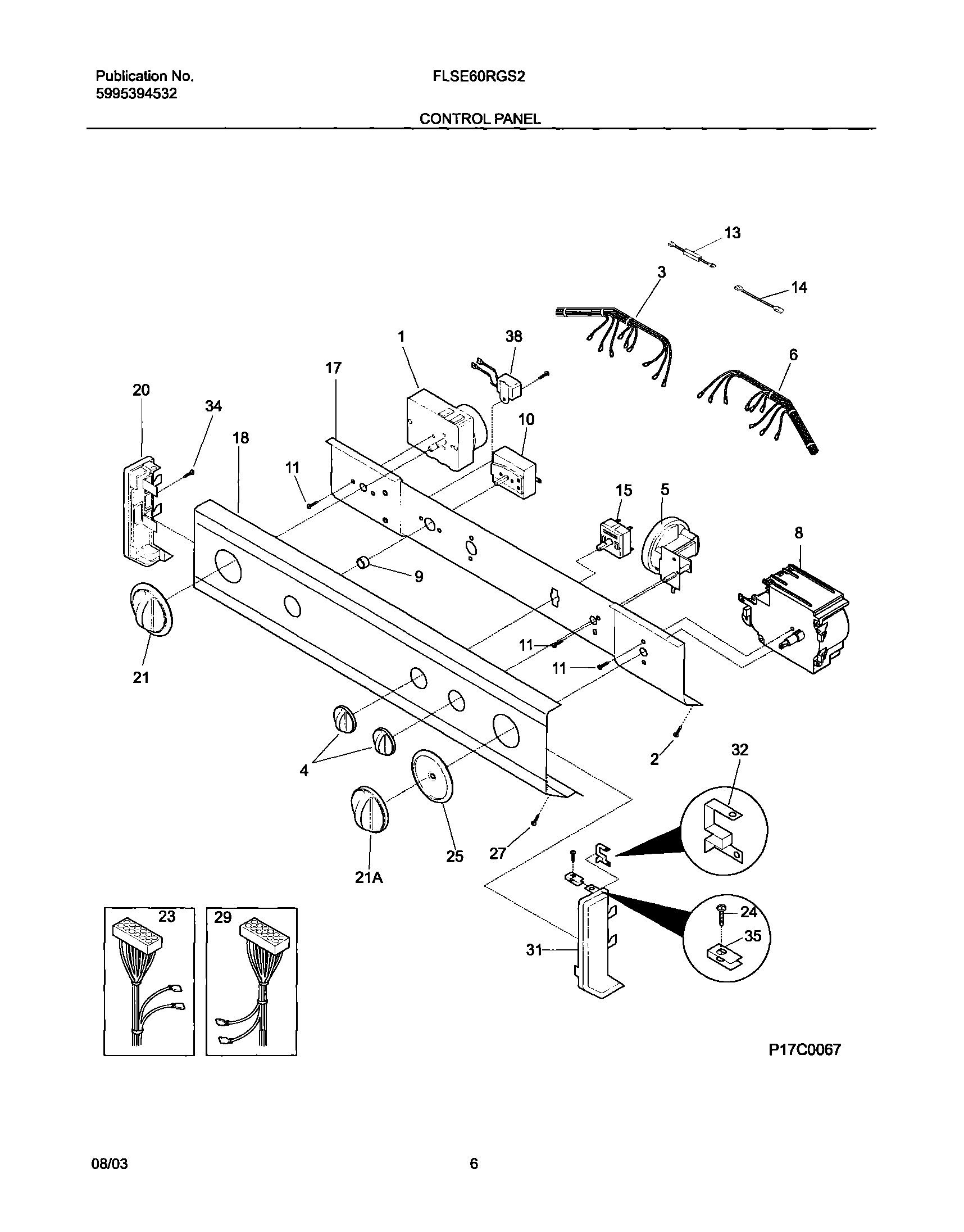

FLSE60RGS2 07 – CONTROL PANEL

Products

Position	Product
NI	WCI 5303208586
NI	134101400 Frigidaire Dryer Kit Terminal Block
NI	5303161300 Frigidaire Strap
1	131062300 Frigidaire Timer
2	131168200 Frigidaire Dryer Screw
3	WCI 131305700
4	131873401 Frigidaire Washer Control Knob
5	WCI 131827400
6	WCI 134122200
8	Timer,3-off
9	WCI 131111501
10	WCI 131628900
11	218359202 Frigidaire Refrigerator Screw
13	RESISTOR, 3.0K
14	RESISTOR-POWER, 4.4K
15	WCI 131620800
17	WCI 131983410
18	WCI 134033500
20	WCI 131288101
21A	WCI 131977201
21	131873304 Frigidaire Dryer Timer Knob White
23	WCI 134119400
24	134156200 Frigidaire Screw
25	WCI 131976801
27	SCREW (2)
27	131892100 Frigidaire Screw
29	WCI 134113400
31	WCI 131288211
32	WCI 3204357
34	131243700 Frigidaire Screw
35	CLIP (8)
38	WCI 5303286537
