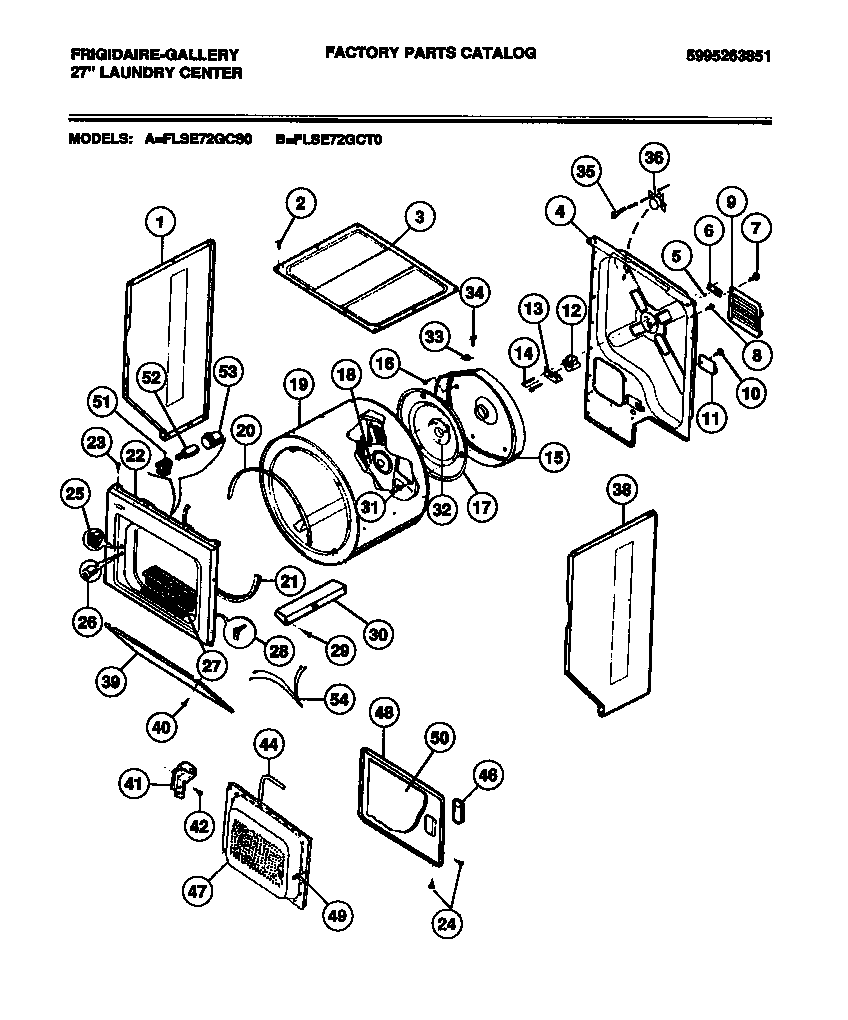

FLSE72GCS0 02 – DRYER CABINET, DRUM, DOOR

Products

Position	Product
*19721	3202786 Frigidaire Terminal Block
*19720	LARGE DIA COIL 5/16" TERM
*19722	131472100 Frigidaire Dryer Insulator Heater Coil
1	WCI 131084700
3	131883301 Frigidaire Panel
4	WCI 5303283283
5	5303281019 Frigidaire Ball Assembly
6	5303281020 Frigidaire Ball Clip
9	PANEL-MOTOR ACCESS
11	WCI 3204250
12	131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
13	131724301 Frigidaire Dryer Drum Bearing Bracket
14	131205400 Frigidaire Screw
15	HEATER ASSY W/HSNG
17	3204254 Frigidaire Baffle Assembly
19	134138400 Frigidaire Drum Kit Assembly O/S3 Xxx
20	5303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
21	5303283286 Frigidaire Drum Felt Seal Lower Front
22	WCI 131150702
24	134156200 Frigidaire Screw
25	131658800 Frigidaire Dryer Door Catch Repair Kit
26	DOOR-SWITCH
27	LINT FILTER
28	CLIP GUIDE (4)
29	WCI 131205200
30	137552900 Frigidaire Vane
31	131168200 Frigidaire Dryer Screw
32	131777700 Frigidaire Dryer Bearing Drum
33	SAFETY THERMSTAT
34	131243700 Frigidaire Screw
35	WCI 08010804
36	134120900 Frigidaire Dryer Limiter Thermal
38	WCI 131084800
39	137546910 Frigidaire Panel
40	131202300 Frigidaire Screw
41A	HINGE-UPPER
41B	HINGE-LOWER
42	131302800 Frigidaire Drum Vane Screw
44	137551901 Frigidaire Gasket
46	WCI 131063600
47	WCI 5303300245
48	WCI 3204284
49	5303207102 Frigidaire Door Strike
50	134535300 Frigidaire Insulator
51	RECEPTACLE-LAMP
52	131843500 Frigidaire Washer Appliance Lamp Light Bulb Assembly
53	WCI 3204288
54	WCI 5303270324
