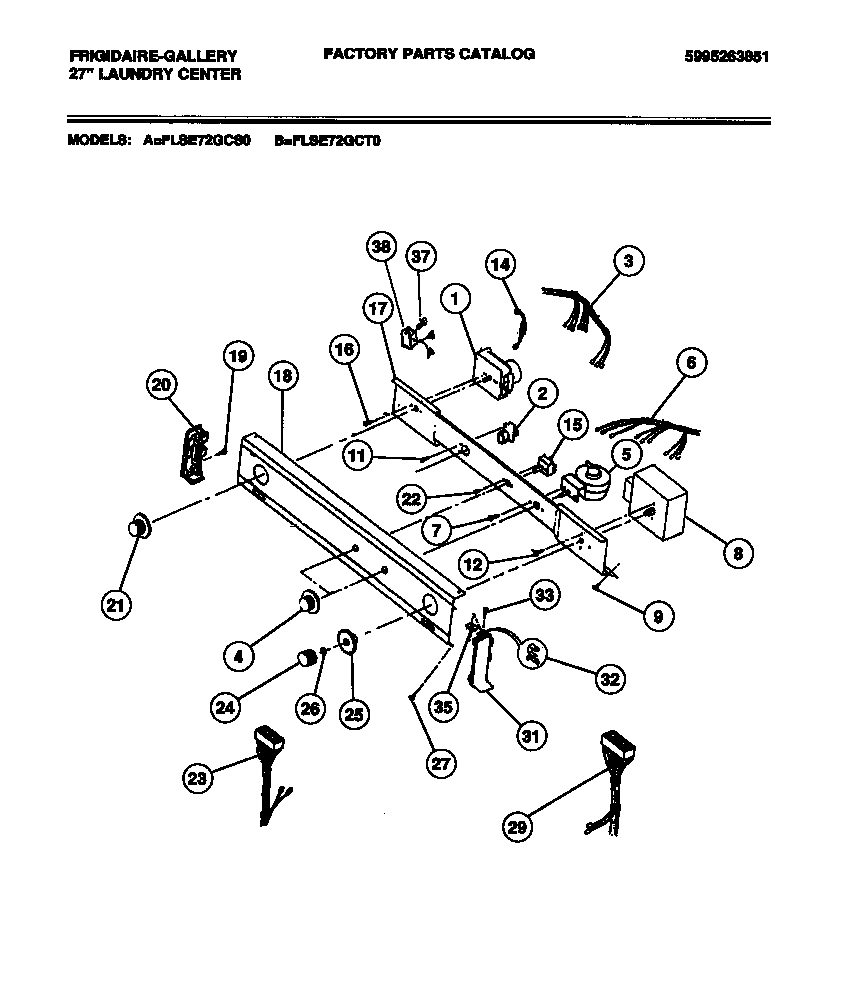

FLSE72GCS0 04 – CONTROLS

Products

Position	Product
*19724	SWITCH-DRYER TEMP
*19726	SPACER PAD-CONTROL PANEL BRACKET (2)
1	131719100 Frigidaire Timer Assembly
2	WCI 5303211158
3	WCI 131321100
4	131873401 Frigidaire Washer Control Knob
5	WCI 131337900
6	HARNESS-WIRING CTRL, WASHER
8	WCI 131348800
9	131168200 Frigidaire Dryer Screw
14	RESISTOR-POWER, 4.4K
15	WCI 5308008463
16	218359202 Frigidaire Refrigerator Screw
17	BRACKET-CONTROLS
18	WCI 131412000
20	WCI 5303211162
21	131873304 Frigidaire Dryer Timer Knob White
22	WCI 3161259
23	HARNESS-MAIN DRYER
24	WCI 131167601
25	WCI 131167704
26	SPACER-TIMER-SHAFT
27	SCREW (2)
29	WCI 131200500
31	WCI 5303211167
32	WCI 3204357
33	134156200 Frigidaire Screw
35	CLIP (8)
37	131243700 Frigidaire Screw
38	WCI 5303210285
