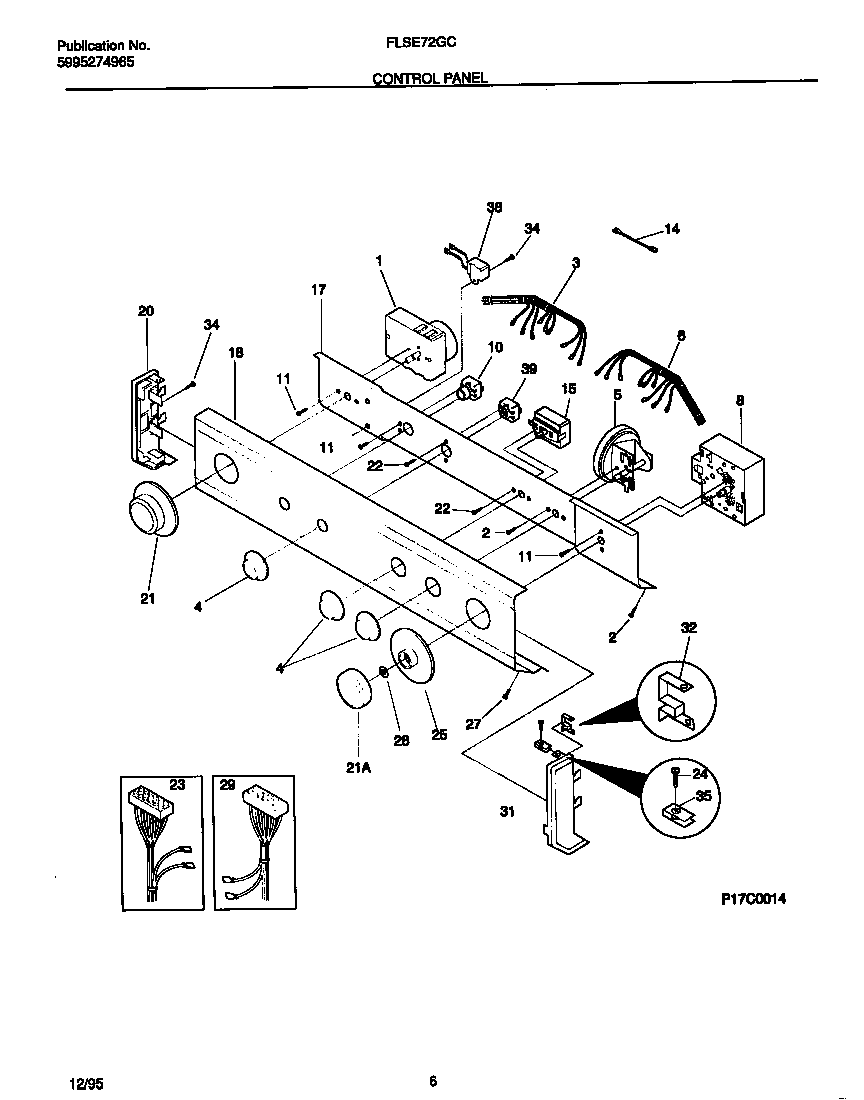

FLSE72GCS1 04 – CONTROL PANEL

FLSE72GCS1 04 – CONTROL PANEL

Written by

in

FLSE72GCS1 04 – CONTROL PANEL

Products

PositionProduct
*66124SPACER PAD-CONTROL PANEL BRACKET (2)
*661255303303590 Frigidaire Dryer 4.0" Cable Tie
*661235303161300 Frigidaire Strap
1131719100 Frigidaire Timer Assembly
2131168200 Frigidaire Dryer Screw
3WCI 131321100
4131873401 Frigidaire Washer Control Knob
5WCI 131337900
6WCI 131446300
8131437500 Frigidaire Washer Timer
10WCI 5303211158
11218359202 Frigidaire Refrigerator Screw
14RESISTOR-POWER, 4.4K
15WCI 5308008463
17BRACKET-CONTROLS
18WCI 131412000
20WCI 131288101
21WCI 131167601
21131873304 Frigidaire Dryer Timer Knob White
22WCI 3161259
23HARNESS-MAIN DRYER
24134156200 Frigidaire Screw
25WCI 131167704
26SPACER-TIMER-SHAFT
27SCREW (2)
29WCI 131470700
31WCI 131288211
32WCI 3204357
34131243700 Frigidaire Screw
35CLIP (8)
38WCI 5303210285
39SWITCH-DRYER TEMP
