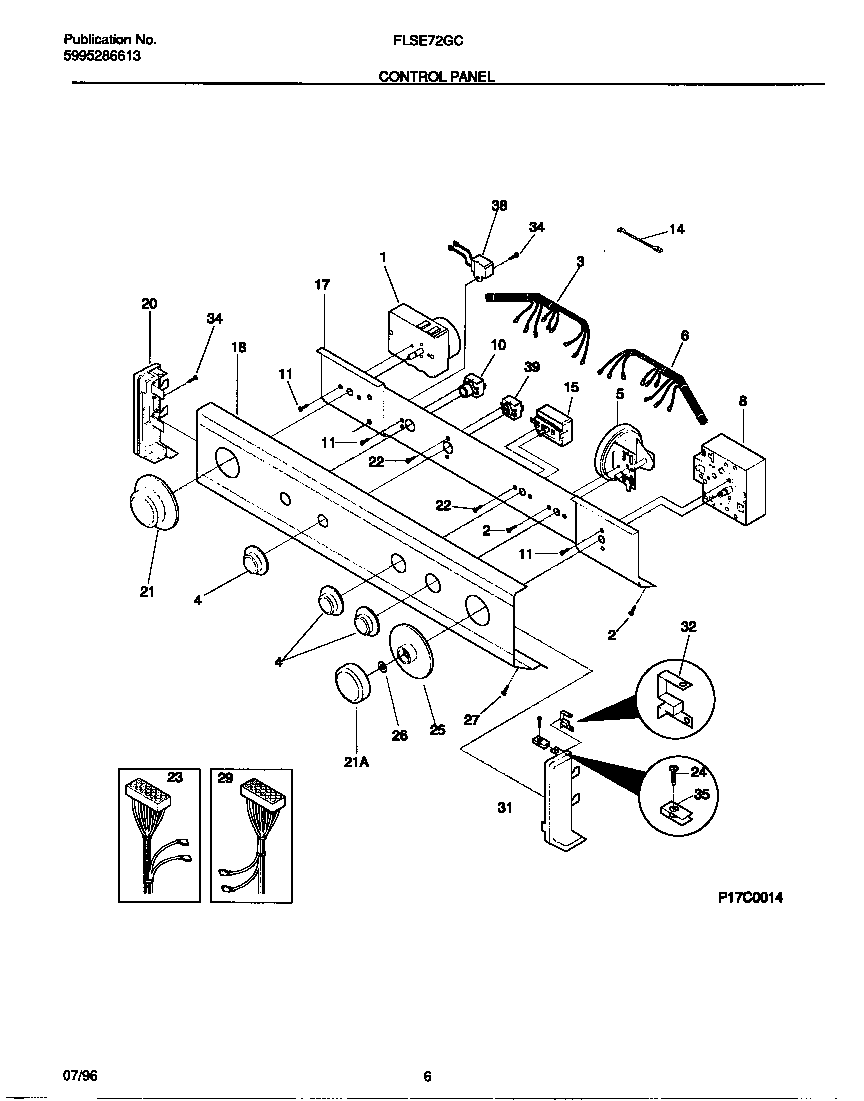

FLSE72GCS4 04 – CONTROL PANEL

Products

Position	Product
*95202	5303161300 Frigidaire Strap
*95203	5303303590 Frigidaire Dryer 4.0" Cable Tie
1	131719100 Frigidaire Timer Assembly
2	131168200 Frigidaire Dryer Screw
3	WCI 131461600
4	131873401 Frigidaire Washer Control Knob
5	WCI 131337900
6	WCI 131446300
8	131437500 Frigidaire Washer Timer
10	134399700 Frigidaire Washer Switch
11	218359202 Frigidaire Refrigerator Screw
14	RESISTOR-POWER, 4.4K
15	WCI 5308008463
17	WCI 131447602
18	Panel,trimplate ,white ,console front
20	WCI 131288101
21	WCI 131167601
21	131873304 Frigidaire Dryer Timer Knob White
22	WCI 3161259
23	WCI 131512600
24	134156200 Frigidaire Screw
25	WCI 131167704
26	SPACER-TIMER-SHAFT
27	SCREW (2)
29	WCI 131520800
31	WCI 131288211
32	WCI 3204357
34	131243700 Frigidaire Screw
35	CLIP (8)
38	WCI 5303210285
39	SWITCH-DRYER TEMP
