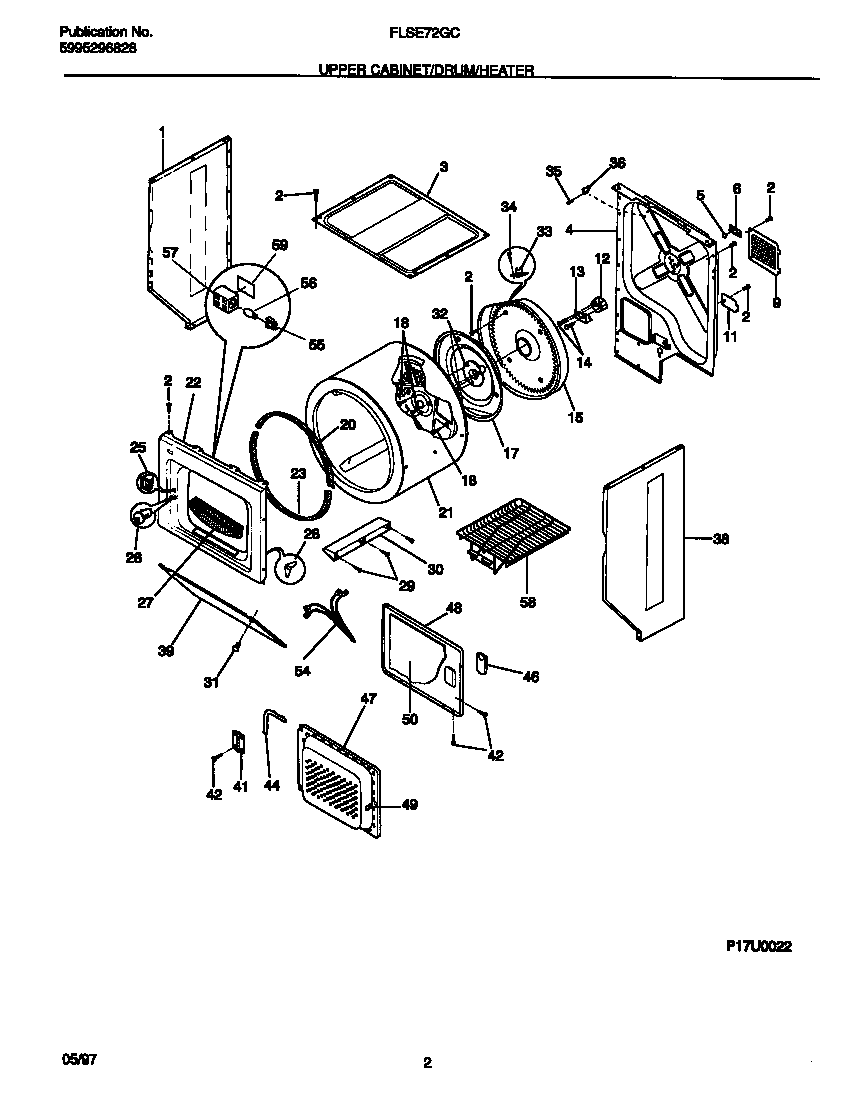

FLSE72GCS6 02 – UPPER CABINET/DRUM/HEATER

FLSE72GCS6 02 – UPPER CABINET/DRUM/HEATER

Written by

in

FLSE72GCS6 02 – UPPER CABINET/DRUM/HEATER

Products

PositionProduct
1WCI 131084700
3131883301 Frigidaire Panel
4WCI 5303283283
55303281019 Frigidaire Ball Assembly
65303281020 Frigidaire Ball Clip
9PANEL-MOTOR ACCESS
11WCI 3204250
12131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
13131724301 Frigidaire Dryer Drum Bearing Bracket
14131205400 Frigidaire Screw
15HEATER ASSY W/HSNG
173204254 Frigidaire Baffle Assembly
18131168200 Frigidaire Dryer Screw
205303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
21134138400 Frigidaire Drum Kit Assembly O/S3 Xxx
22WCI 131636232
235303283286 Frigidaire Drum Felt Seal Lower Front
25131658800 Frigidaire Dryer Door Catch Repair Kit
26DOOR-SWITCH
27LINT FILTER
28CLIP GUIDE (4)
29131382300 Frigidaire Screw-VANE
30137552900 Frigidaire Vane
31131202300 Frigidaire Screw
32131777700 Frigidaire Dryer Bearing Drum
33SAFETY THERMSTAT
34131243700 Frigidaire Screw
35WCI 08010804
36134120900 Frigidaire Dryer Limiter Thermal
38WCI 131084800
39137546910 Frigidaire Panel
41134222900 Frigidaire Dryer Door Hinge
42134156200 Frigidaire Screw
44137551901 Frigidaire Gasket
46WCI 131063600
47137365110 Frigidaire Panel
48WCI 131579203
495303207102 Frigidaire Door Strike
50134535300 Frigidaire Insulator
54WCI 131499000
55131843500 Frigidaire Washer Appliance Lamp Light Bulb Assembly
57WCI 131544900
58RACK-DRYER
