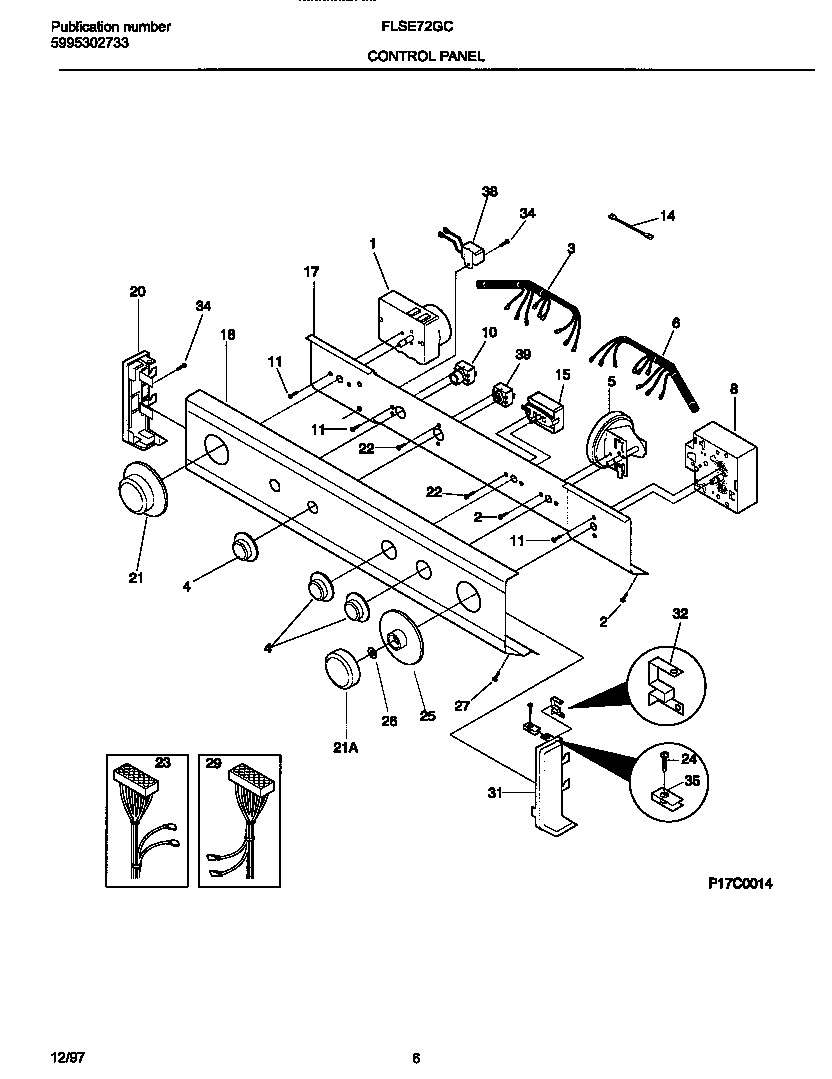

FLSE72GCS7 04 – CONTROL PANEL

Products

Position	Product
*56481	5303161300 Frigidaire Strap
1	131719100 Frigidaire Timer Assembly
2	131168200 Frigidaire Dryer Screw
3	WCI 131662700
4	131873401 Frigidaire Washer Control Knob
5	WCI 131337900
6	WCI 131592700
8	131437500 Frigidaire Washer Timer
10	134399700 Frigidaire Washer Switch
11	218359202 Frigidaire Refrigerator Screw
14	RESISTOR-POWER, 4.4K
15	WCI 131621100
17	WCI 131621702
18	Panel,trimplate ,white ,console front
20	WCI 131288101
21	WCI 131167601
21	131873304 Frigidaire Dryer Timer Knob White
22	WCI 3161259
23	WCI 131512600
24	134156200 Frigidaire Screw
25	WCI 131167704
26	SPACER-TIMER-SHAFT
27	SCREW (2)
29	WCI 131654700
31	WCI 131288211
32	WCI 3204357
34	131243700 Frigidaire Screw
35	CLIP (8)
38	WCI 5303286537
39	SWITCH-DRYER TEMP
