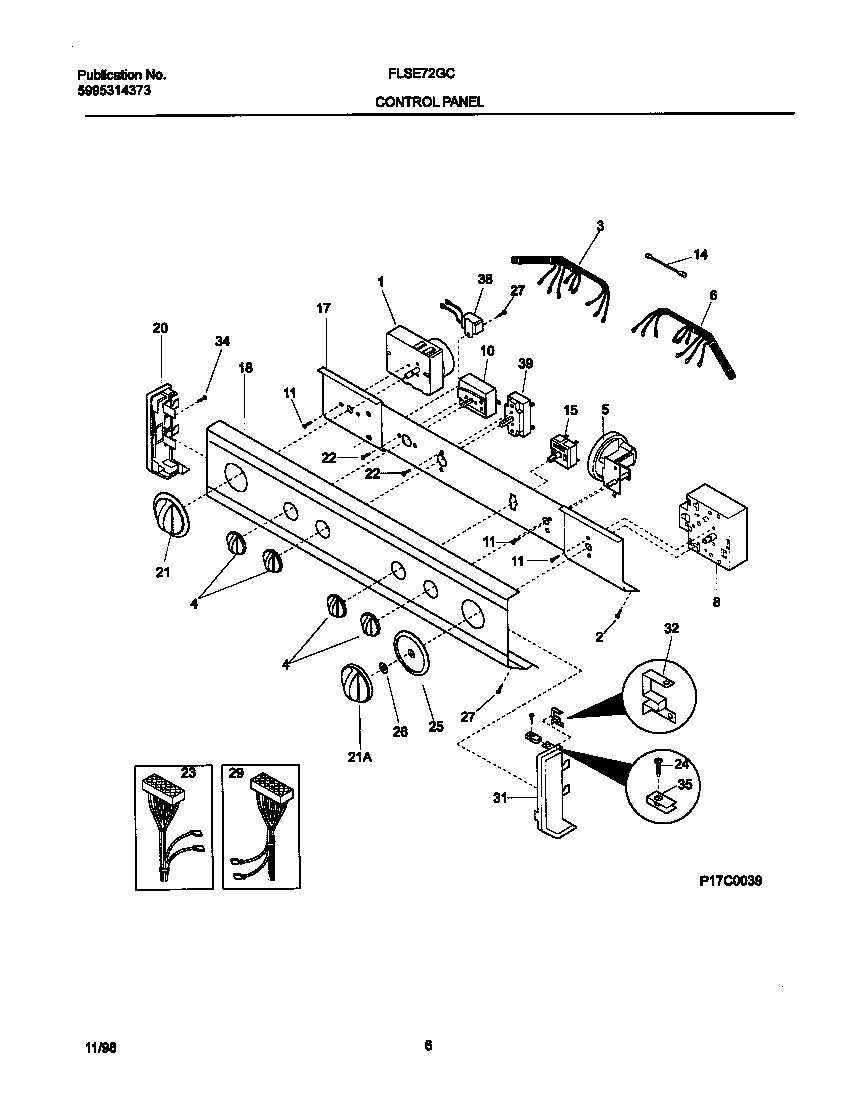

FLSE72GCSA 04 – P17C0039 CONTROL PANEL

Products

Position	Product
*94161	5303161300 Frigidaire Strap
1	131719100 Frigidaire Timer Assembly
2	131168200 Frigidaire Dryer Screw
3	WCI 131662700
4	131873401 Frigidaire Washer Control Knob
5	134493500 Frigidaire Switch
6	WCI 131668500
8	131437500 Frigidaire Washer Timer
10	134399700 Frigidaire Washer Switch
11	218359202 Frigidaire Refrigerator Screw
14	RESISTOR-POWER, 4.4K
15	WCI 131621100
17	WCI 131712702
18	Panel,trimplate ,white ,console front
20	WCI 131288101
21	131873304 Frigidaire Dryer Timer Knob White
21	WCI 131167601
22	WCI 3161259
23	WCI 131753200
24	134156200 Frigidaire Screw
25	WCI 131167704
26	SPACER-TIMER-SHAFT
27	SCREW (2)
29	WCI 131778800
31	WCI 131288211
32	WCI 3204357
34	131243700 Frigidaire Screw
35	CLIP (8)
38	WCI 5303286537
39	SWITCH-DRYER TEMP
