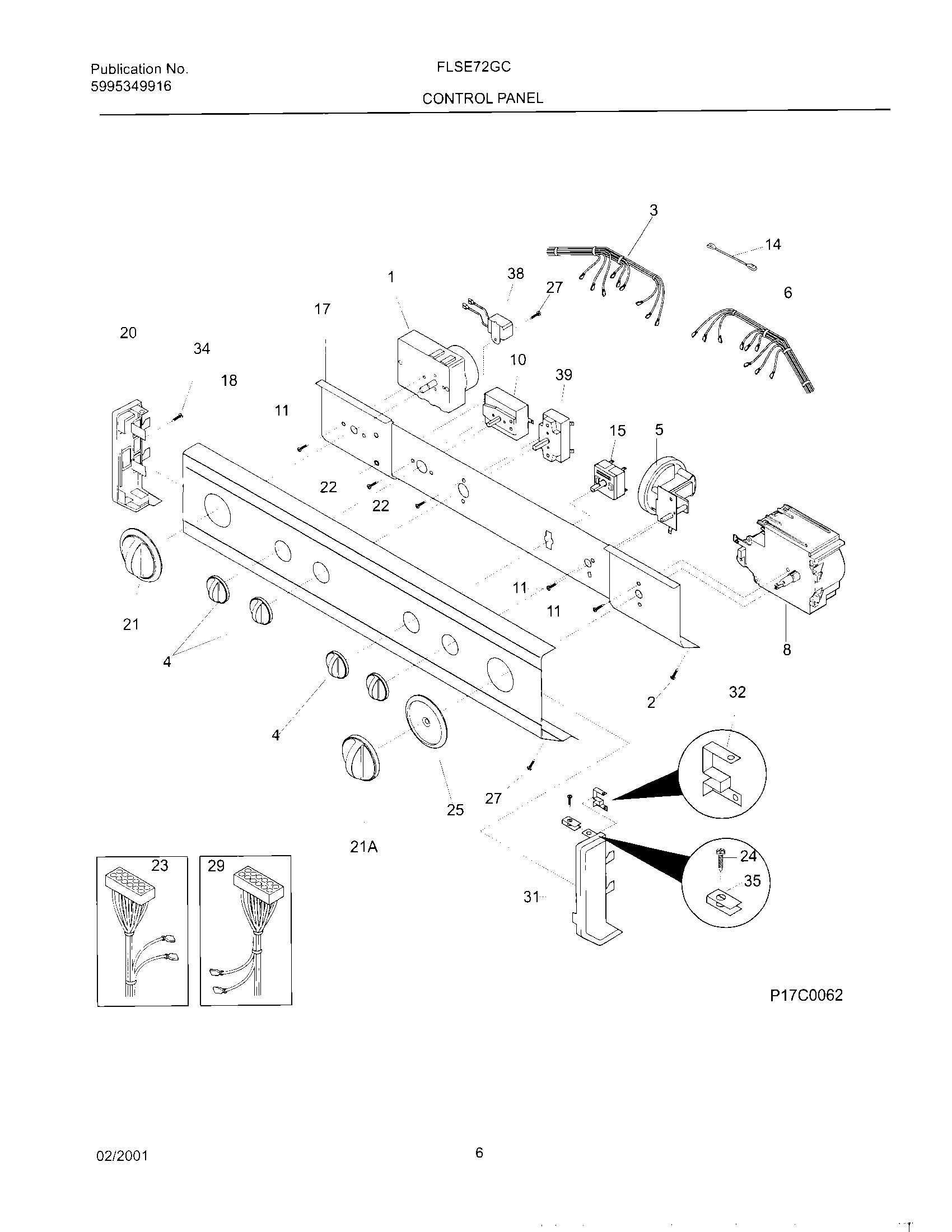

FLSE72GCSB 07 – CONTROL PANEL

FLSE72GCSB 07 – CONTROL PANEL

Written by

in

FLSE72GCSB 07 – CONTROL PANEL

Products

PositionProduct
NI5303161300 Frigidaire Strap
1131719100 Frigidaire Timer Assembly
2131168200 Frigidaire Dryer Screw
3WCI 131662700
4131873401 Frigidaire Washer Control Knob
5134493500 Frigidaire Switch
6WCI 131998700
8WCI 131964200
10134399700 Frigidaire Washer Switch
11218359202 Frigidaire Refrigerator Screw
14RESISTOR-POWER, 4.4K
15WCI 131621100
17WCI 131975600
18Panel,trimplate ,white ,console front
20WCI 131288101
21131873304 Frigidaire Dryer Timer Knob White
21WCI 131977201
22WCI 3161259
23WCI 131753200
24134156200 Frigidaire Screw
25WCI 131976804
27131892100 Frigidaire Screw
29WCI 131778800
31WCI 131288211
32WCI 3204357
34131243700 Frigidaire Screw
35CLIP (8)
38WCI 5303286537
39WCI 131753000
