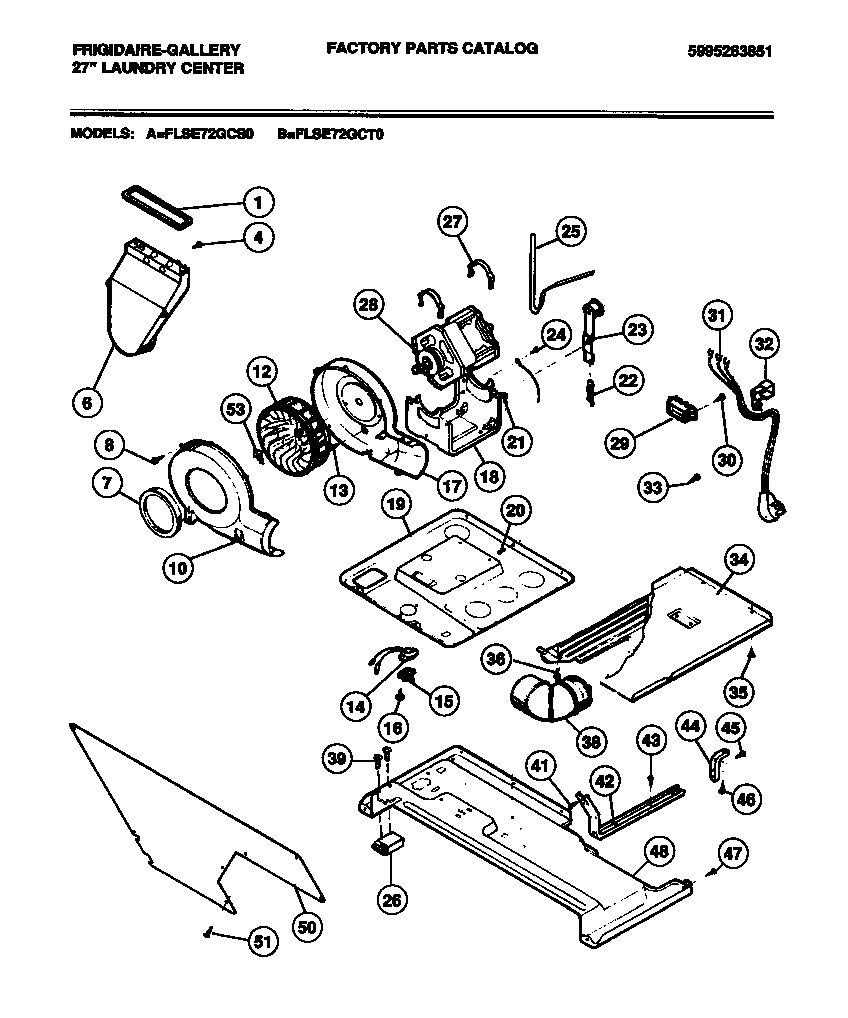

FLSE72GCT0 03 – DRYER MOTOR, BASE

FLSE72GCT0 03 – DRYER MOTOR, BASE

Written by

in

FLSE72GCT0 03 – DRYER MOTOR, BASE

Products

PositionProduct
*19723131453000 Frigidaire Bushing
1131295200 Frigidaire Seal
4131362400 Frigidaire Fastener
65304521121 Frigidaire Duct
73204490 Frigidaire Seal
8SCREW (6)
105304485558 Frigidaire Blower Housing Assembly, Front & Rear
12BLOWER WHEEL
14WCI 5303206879
153204307 Frigidaire Dryer Thermostat Control, L135
16134178901 Frigidaire Screw
17WCI 5303271179
18CRADLE & STUD
19WCI 131363901
223205241 Frigidaire Idler Spring
23IDLER ARM
25BELT-DRYER LC
26BLOCK-SUPPORT
27WCI 5303212834
28WCI 5303283288
29134101400 Frigidaire Dryer Kit Terminal Block
30131205300 Frigidaire Screw
31WCI 5303212832
32WCI 3204317
34SHIELD-ACCESS
36131243700 Frigidaire Screw
38ELBOW
39131205100 Frigidaire Screw
42BRACKET (2)
443204326 Frigidaire Bracket Assembly
46SCREW (2)
48137455500 Frigidaire Lower Pan Assembly
50SAFETY COVER
51131168200 Frigidaire Dryer Screw
535304488479 Frigidaire Washer Hose Clamp
