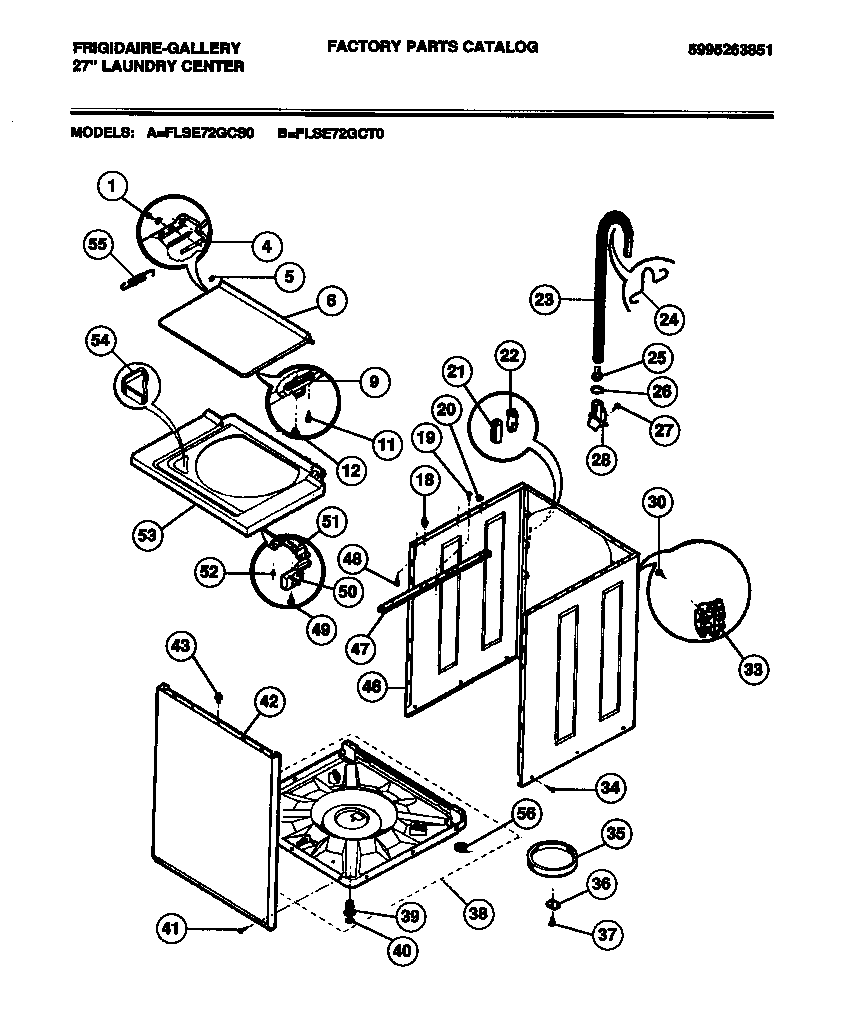

FLSE72GCT0 05 – WASHER CABINET, BASE, LID

FLSE72GCT0 05 – WASHER CABINET, BASE, LID

Written by

in

FLSE72GCT0 05 – WASHER CABINET, BASE, LID

Products

PositionProduct
1SCREW
45304489657 Frigidaire Bar Hinge Kit
55303208743 Frigidaire Grommet
6WCI 5303212873
9131390000 Frigidaire Door Catch-Strike
113204368 Frigidaire Screw-Strike
12134075500 Frigidaire Bumper-LID
18WCI 131346400
203204374 Frigidaire Pin
21WCI 5308014903
22WCI 5303161252
23WCI 131210200
24RETAINER
253204375 Frigidaire Check Valve
26WCI 131127616
27131205100 Frigidaire Screw
28WCI 3204376
30131202300 Frigidaire Screw
33134190200 Frigidaire Washer Water Valve
34131205500 Frigidaire Screw
35SNUBBER RING
36SHIPPING BLOCK
37WCI 131102900
38WCI 5303300247
39134548800 Frigidaire Washer Leg Levelling
40PAD, LEG
41131302800 Frigidaire Drum Vane Screw
42PANEL – FRONT – ALMD
43131346401 Frigidaire Pin
46WCI 5303931758
47BMARRIAGE BRACKET-LH
47AMARRIAGE BRACKET-RH
48131168200 Frigidaire Dryer Screw
49131243800 Frigidaire Screw
50WCI 3205646
51BRACKET-LID LOCK
52RIVET (3)
53WCI 5303212875
54WCI 3204394
55134890500 Frigidaire Spring
56131422200 Frigidaire P-1 Self Level Leg Pad
