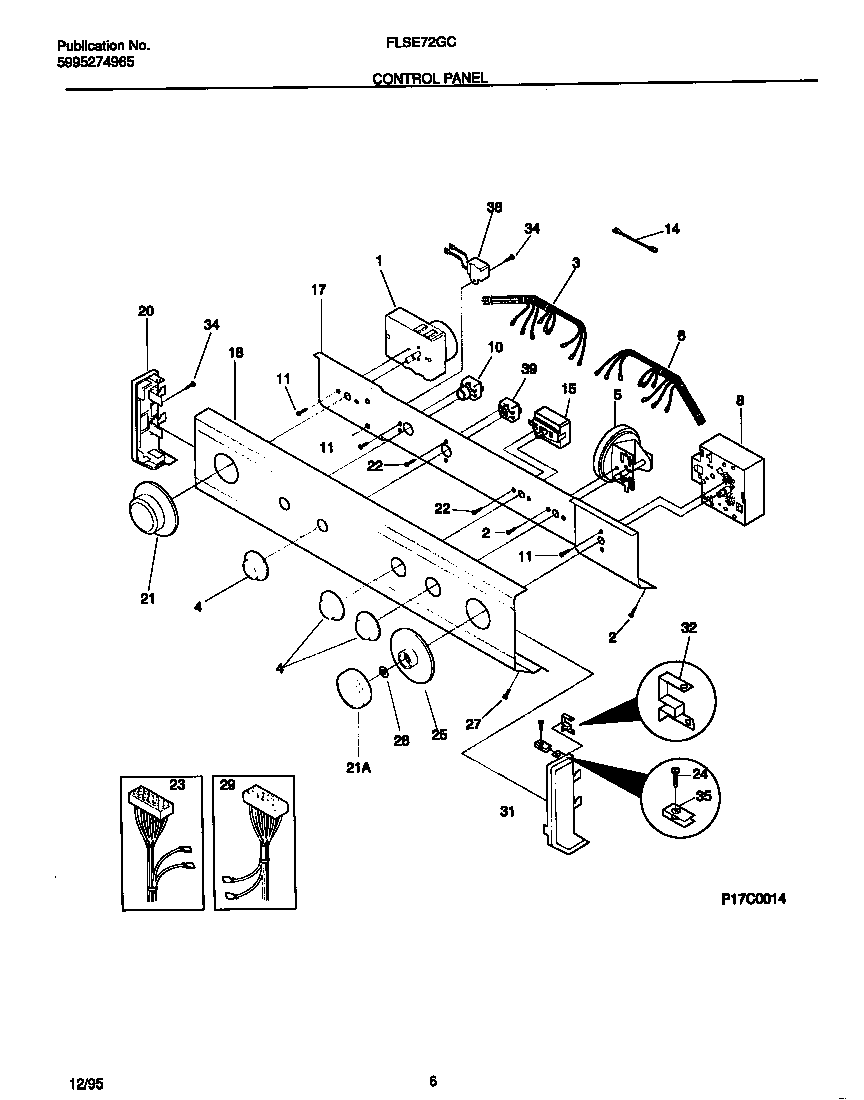

FLSE72GCT1 04 – CONTROL PANEL

FLSE72GCT1 04 – CONTROL PANEL

Written by

in

FLSE72GCT1 04 – CONTROL PANEL

Products

PositionProduct
*661235303161300 Frigidaire Strap
*661255303303590 Frigidaire Dryer 4.0" Cable Tie
*66124SPACER PAD-CONTROL PANEL BRACKET (2)
1131719100 Frigidaire Timer Assembly
2131168200 Frigidaire Dryer Screw
3WCI 131321100
4WCI 131168103
5WCI 131337900
6WCI 131446300
8131437500 Frigidaire Washer Timer
10WCI 5303308029
11218359202 Frigidaire Refrigerator Screw
14RESISTOR-POWER, 4.4K
15WCI 5308008463
17BRACKET-CONTROLS
18PANEL-CONTROL-ALMOND
20WCI 131288102
21KNOB-TIMER DRYER, ALMOND
21KNOB-TIMER WASHER, ALMOND
22WCI 3161259
23HARNESS-MAIN DRYER
24134156200 Frigidaire Screw
25DIAL-TIMERR,ALMOND ,WASHER
26SPACER-TIMER-SHAFT
27SCREW (2)
29WCI 131470700
31WCI 131288212
32WCI 3204357
34131243700 Frigidaire Screw
35CLIP (8)
38WCI 5303210285
39SWITCH-DRYER TEMP
