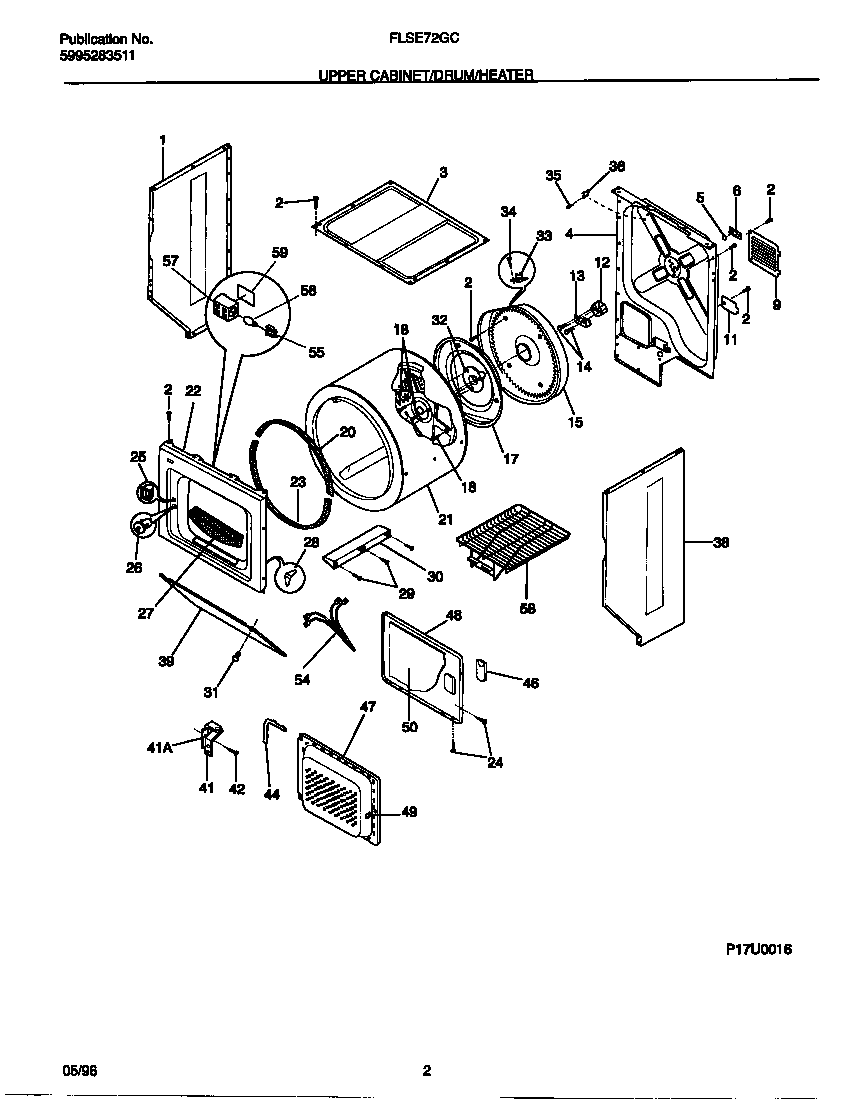

FLSE72GCT3 02 – UPPER CABINET/DRUM/HEATER

FLSE72GCT3 02 – UPPER CABINET/DRUM/HEATER

Written by

in

FLSE72GCT3 02 – UPPER CABINET/DRUM/HEATER

Products

PositionProduct
*062405303303590 Frigidaire Dryer 4.0" Cable Tie
1WCI 131084701
3131883301 Frigidaire Panel
4WCI 5303283283
55303281019 Frigidaire Ball Assembly
65303281020 Frigidaire Ball Clip
9PANEL-MOTOR ACCESS
11WCI 3204250
12131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
13131724301 Frigidaire Dryer Drum Bearing Bracket
14131205400 Frigidaire Screw
15HEATER ASSY W/HSNG
173204254 Frigidaire Baffle Assembly
18A131168200 Frigidaire Dryer Screw
205303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
21134138400 Frigidaire Drum Kit Assembly O/S3 Xxx
22WCI 131506413
235303283286 Frigidaire Drum Felt Seal Lower Front
24134156200 Frigidaire Screw
25131658800 Frigidaire Dryer Door Catch Repair Kit
26DOOR-SWITCH
27LINT FILTER
28CLIP GUIDE (4)
29131382300 Frigidaire Screw-VANE
30137552900 Frigidaire Vane
31131202300 Frigidaire Screw
32131777700 Frigidaire Dryer Bearing Drum
33SAFETY THERMSTAT
34131243700 Frigidaire Screw
35WCI 08010804
36134120900 Frigidaire Dryer Limiter Thermal
38WCI 131084801
39WCI 131084403
41HINGE-LOWER
41HINGE-UPPER
42131302800 Frigidaire Drum Vane Screw
44137551901 Frigidaire Gasket
46HANDLE-DOOR-ALMOND
47WCI 5303300246
48WCI 3204285
495303207102 Frigidaire Door Strike
50134535300 Frigidaire Insulator
54WCI 131499000
55131843500 Frigidaire Washer Appliance Lamp Light Bulb Assembly
57WCI 131544900
58RACK-DRYER
