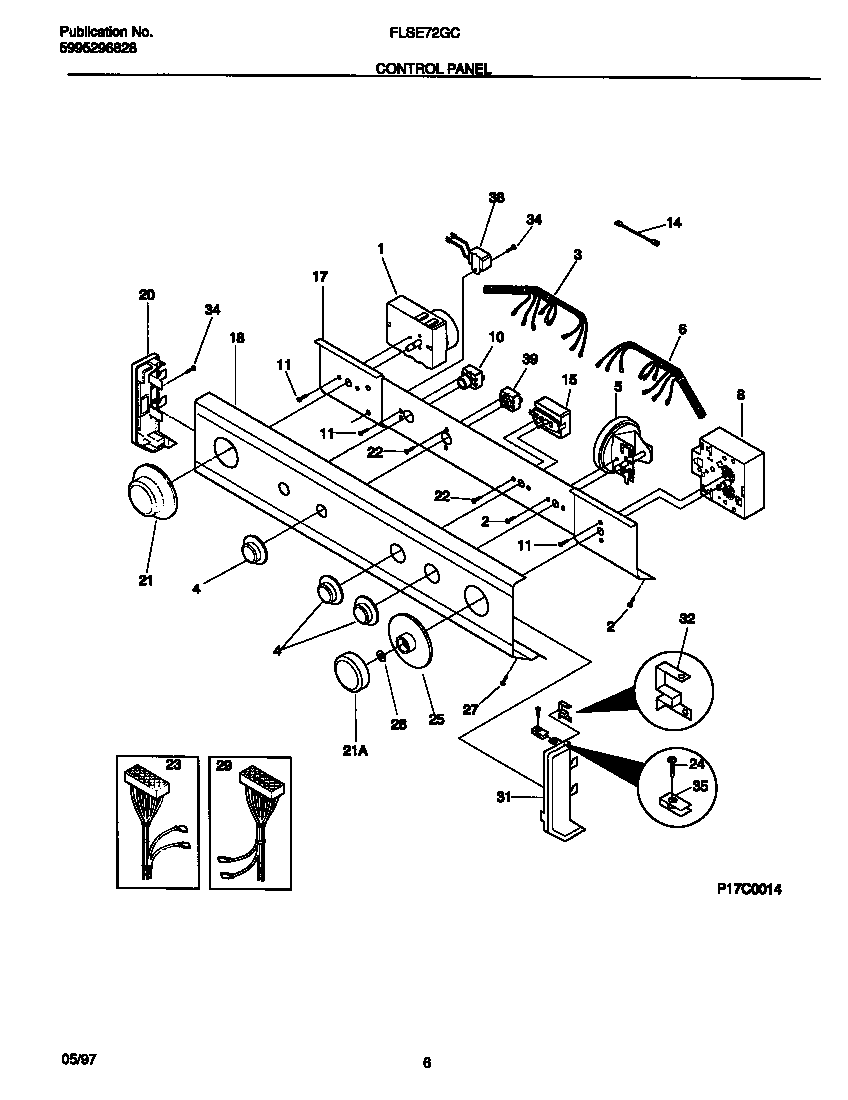

FLSE72GCT6 04 – CONTROL PANEL

FLSE72GCT6 04 – CONTROL PANEL

Written by

in

FLSE72GCT6 04 – CONTROL PANEL

Products

PositionProduct
*759615303161300 Frigidaire Strap
1131719100 Frigidaire Timer Assembly
2131168200 Frigidaire Dryer Screw
3WCI 131662700
4WCI 131168103
5WCI 131337900
6WCI 131592700
8131437500 Frigidaire Washer Timer
10134399700 Frigidaire Washer Switch
11218359202 Frigidaire Refrigerator Screw
14RESISTOR-POWER, 4.4K
15WCI 131621100
17WCI 131621702
18WCI 131580500
20WCI 131288103
21KNOB-TIMER DRYER, ALMOND
21KNOB-TIMER WASHER, ALMOND
22WCI 3161259
23WCI 131512600
24134156200 Frigidaire Screw
25DIAL-TIMERR,ALMOND ,WASHER
26SPACER-TIMER-SHAFT
27SCREW (2)
29WCI 131520800
31WCI 131288213
32WCI 3204357
34131243700 Frigidaire Screw
35CLIP (8)
38WCI 5303286537
39SWITCH-DRYER TEMP
