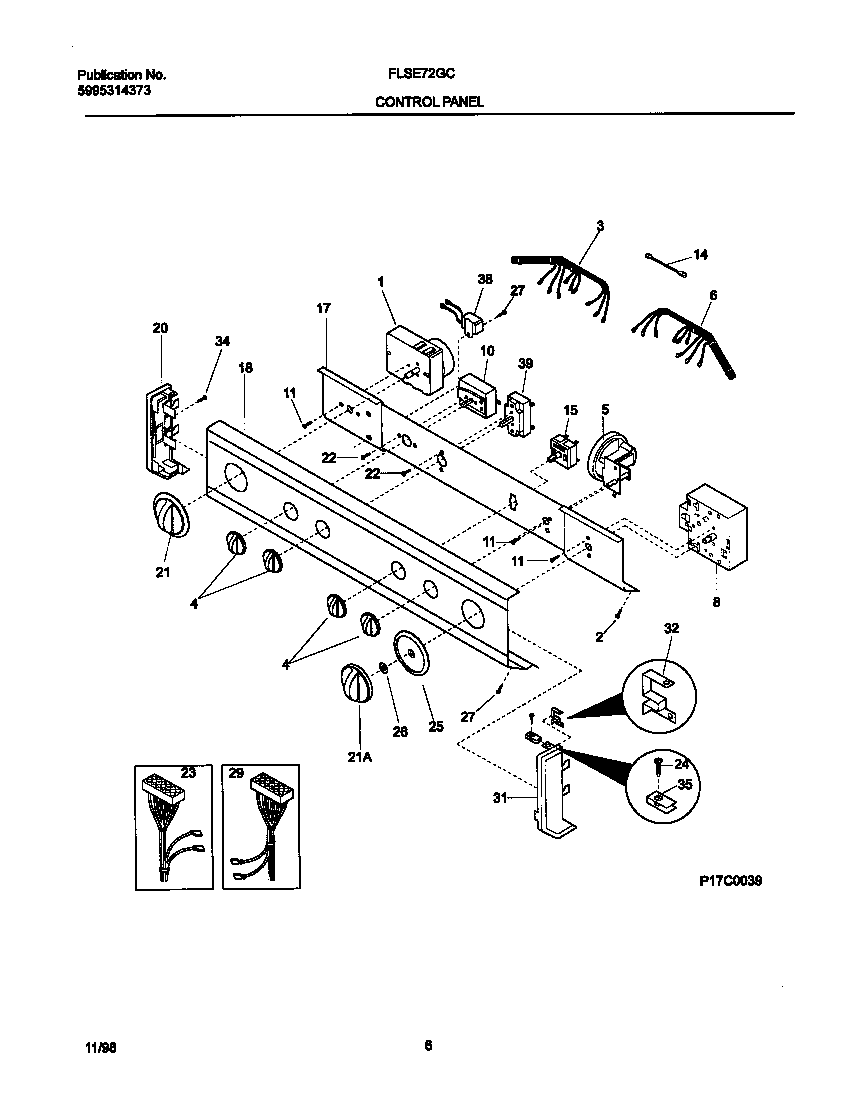

FLSE72GCTA 04 – P17C0039 CONTROL PANEL

Products

Position	Product
*94161	5303161300 Frigidaire Strap
1	131719100 Frigidaire Timer Assembly
2	131168200 Frigidaire Dryer Screw
3	WCI 131662700
4	WCI 131168103
5	134493500 Frigidaire Switch
6	WCI 131668500
8	131437500 Frigidaire Washer Timer
10	134399700 Frigidaire Washer Switch
11	218359202 Frigidaire Refrigerator Screw
14	RESISTOR-POWER, 4.4K
15	WCI 131621100
17	WCI 131712702
18	WCI 131580500
20	WCI 131288103
21	KNOB-TIMER DRYER, ALMOND
21	KNOB-TIMER WASHER, ALMOND
22	WCI 3161259
23	WCI 131753200
24	134156200 Frigidaire Screw
25	DIAL-TIMERR,ALMOND ,WASHER
26	SPACER-TIMER-SHAFT
27	SCREW (2)
29	WCI 131778800
31	WCI 131288213
32	WCI 3204357
34	131243700 Frigidaire Screw
35	CLIP (8)
38	WCI 5303286537
39	SWITCH-DRYER TEMP
