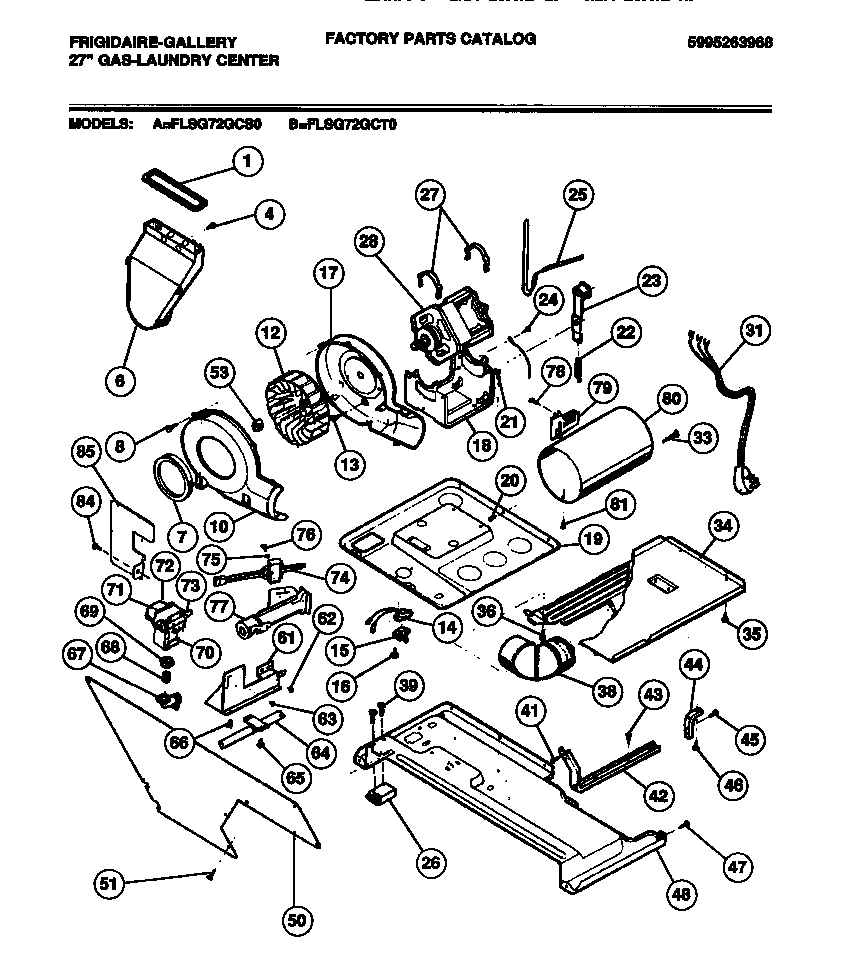

FLSG72GCS0 03 – DRYER MOTOR, BASE, IGNITOR

FLSG72GCS0 03 – DRYER MOTOR, BASE, IGNITOR

Written by

in

FLSG72GCS0 03 – DRYER MOTOR, BASE, IGNITOR

Products

PositionProduct
*46600PCK3100 Frigidaire Conversion Kit
*46601WCI 5303937054
*46602WCI 5303272164
1131295200 Frigidaire Seal
4131362400 Frigidaire Fastener
65304521121 Frigidaire Duct
73204490 Frigidaire Seal
8SCREW (6)
105304485558 Frigidaire Blower Housing Assembly, Front & Rear
12BLOWER WHEEL
14WCI 5303207400
15WCI 131322600
16134178901 Frigidaire Screw
17WCI 5303271179
18CRADLE & STUD
19WCI 3204311
223205241 Frigidaire Idler Spring
23IDLER ARM
25BELT-DRYER LC
26BLOCK-SUPPORT
27WCI 5303212834
28WCI 5303283288
31WCI 5303207402
34SHIELD-ACCESS
38ELBOW
39131205100 Frigidaire Screw
42BRACKET (2)
443204326 Frigidaire Bracket Assembly
46SCREW (2)
48137455500 Frigidaire Lower Pan Assembly
50SAFETY COVER
535304488479 Frigidaire Washer Hose Clamp
61BRACKET-VALVE
63131243800 Frigidaire Screw
64WCI 5303207405
67VALVE-ANGLE
68TAIL PIECE
69NUT-HEX UNION
70DRYER GAS VALVE
715303931775 Frigidaire Dryer Coil Kit
735303207410 Frigidaire Orifice
745303937186 Frigidaire Dryer Flat Igniter Assembly
755300809968 Frigidaire Dishwasher P-1 Washer
76131420300 Frigidaire Screw
77WCI 5303207412
795303281135 Frigidaire Gas Dryer Flame Sensor Radiant
80131712405 Frigidaire Tube
81131243700 Frigidaire Screw
84131168200 Frigidaire Dryer Screw
85WCI 5303212889
