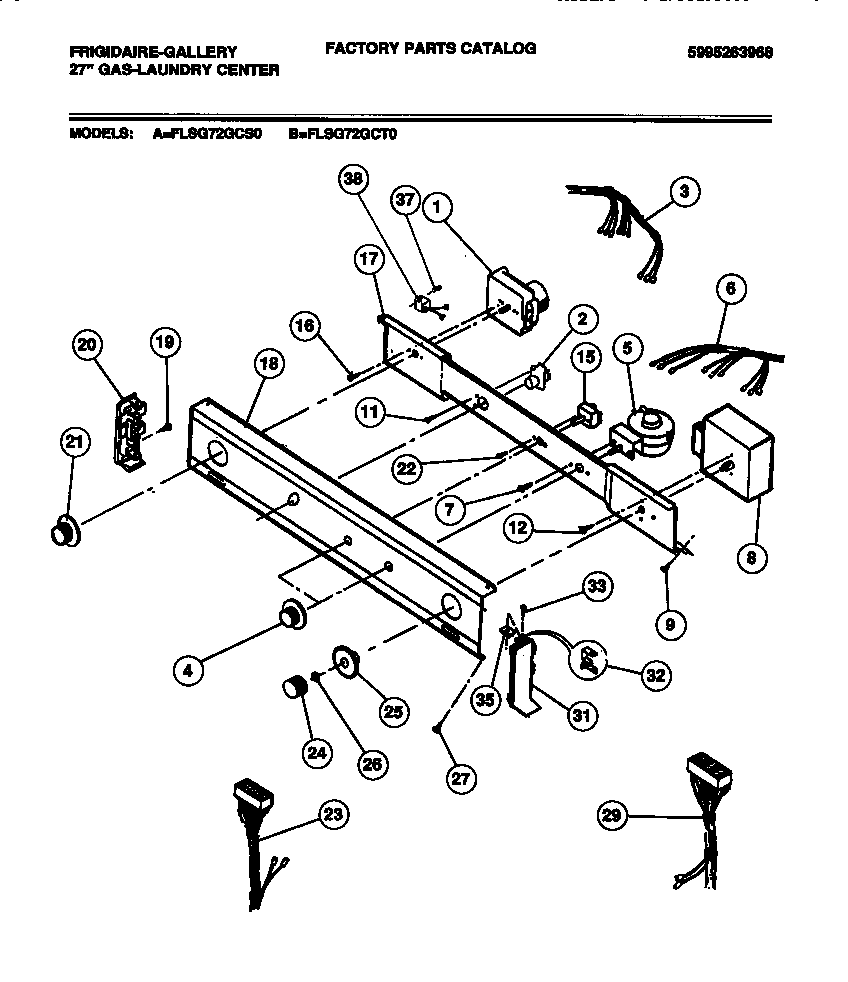

FLSG72GCS0 04 – CONTROLS

FLSG72GCS0 04 – CONTROLS

Written by

in

FLSG72GCS0 04 – CONTROLS

Products

PositionProduct
*46603SWITCH-DRYER TEMP
*46605SPACER PAD-CONTROL PANEL BRACKET (2)
1WCI 131063300
2WCI 5303211158
3WCI 131321200
4131873401 Frigidaire Washer Control Knob
5WCI 131337900
6HARNESS-WIRING CTRL, WASHER
8WCI 131294000
9131168200 Frigidaire Dryer Screw
15WCI 5308008463
16218359202 Frigidaire Refrigerator Screw
17BRACKET-CONTROLS
18WCI 131412000
20WCI 5303211162
21131873304 Frigidaire Dryer Timer Knob White
22WCI 3161259
23HARNESS-MAIN DRYER
24WCI 131167601
25WCI 131167704
26SPACER-TIMER-SHAFT
27SCREW (2)
29WCI 131200500
31WCI 5303211167
32WCI 3204357
33134156200 Frigidaire Screw
35CLIP (8)
37131243700 Frigidaire Screw
38WCI 5303210285
