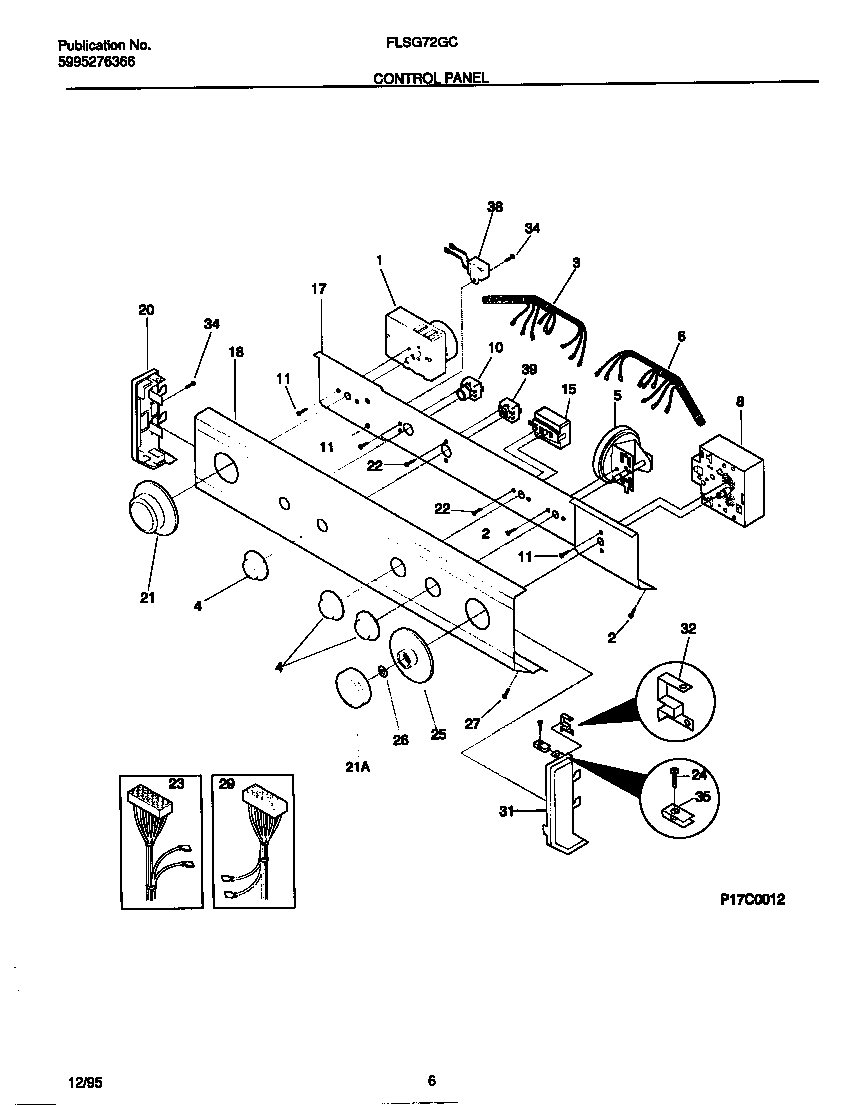

FLSG72GCS1 04 – CONTROL PANEL

Written by

Products

Position	Product
*41888	SPACER PAD-CONTROL PANEL BRACKET (2)
*41886	131209800 Frigidaire Clamp
*41889	5303303590 Frigidaire Dryer 4.0" Cable Tie
*41885	CLIP
*41887	5303161300 Frigidaire Strap
1	WCI 131063300
2	131168200 Frigidaire Dryer Screw
3	WCI 131321200
4	131873401 Frigidaire Washer Control Knob
5	WCI 131337900
6	WCI 131446300
8	131437500 Frigidaire Washer Timer
10	WCI 5303211158
11	218359202 Frigidaire Refrigerator Screw
15	WCI 5308008463
17	BRACKET-CONTROLS
18	WCI 131412000
20	WCI 131288101
21	131873304 Frigidaire Dryer Timer Knob White
21	WCI 131167601
22	WCI 3161259
23	HARNESS-MAIN DRYER
25	WCI 131167704
26	SPACER-TIMER-SHAFT
27	SCREW (2)
29	WCI 131490400
31	WCI 131288211
32	WCI 3204357
34	131243700 Frigidaire Screw
35	CLIP (8)
38	WCI 5303210285
39	SWITCH-DRYER TEMP
