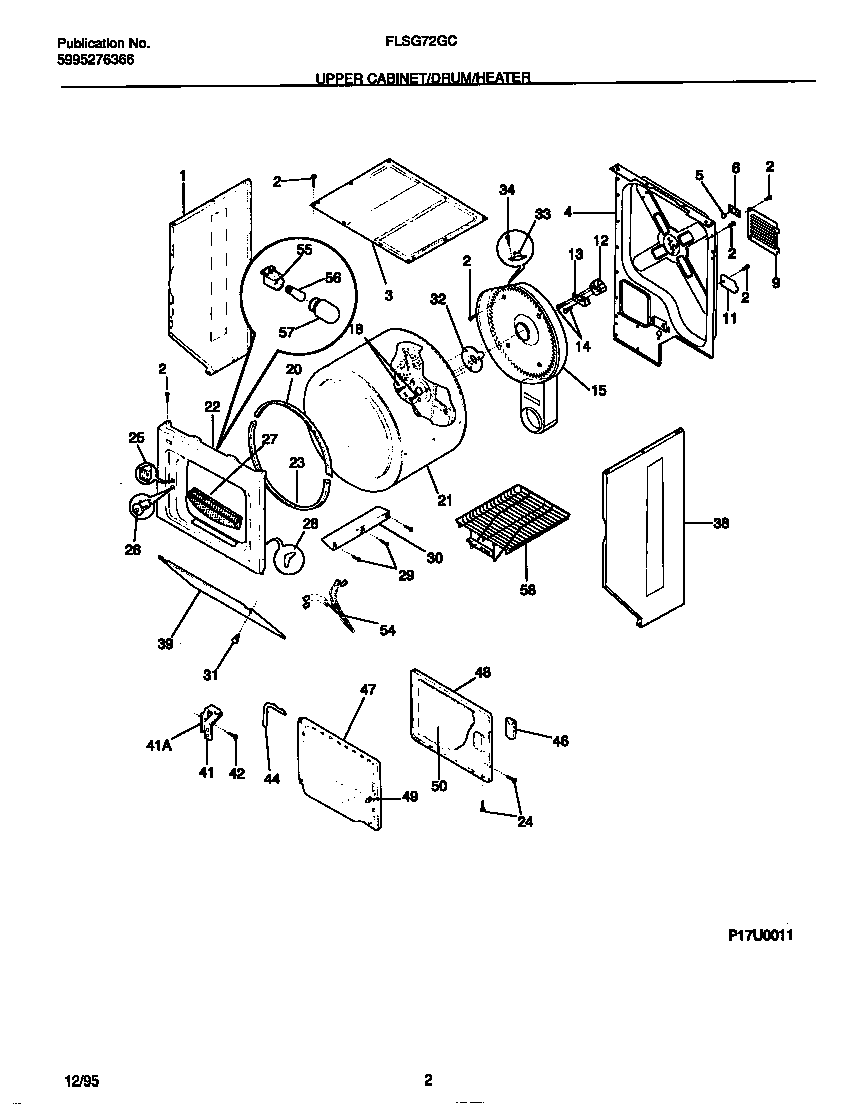

FLSG72GCT1 02 – UPPER CABINET/DRUM/HEATER

Products

Position	Product
*41880	5303303590 Frigidaire Dryer 4.0" Cable Tie
1	WCI 131084701
3	131883301 Frigidaire Panel
4	WCI 5303283283
5	5303281019 Frigidaire Ball Assembly
6	5303281020 Frigidaire Ball Clip
9	PANEL-MOTOR ACCESS
11	COVER-TERM BLOCK
12	131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
13	131724301 Frigidaire Dryer Drum Bearing Bracket
14	131205400 Frigidaire Screw
15	HEATER HOUSING & DUCT
18	131168200 Frigidaire Dryer Screw
20	5303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
21	134138400 Frigidaire Drum Kit Assembly O/S3 Xxx
22	PANEL-FRONT, ALMOND, DRYER
23	5303283286 Frigidaire Drum Felt Seal Lower Front
24	134156200 Frigidaire Screw
25	131658800 Frigidaire Dryer Door Catch Repair Kit
26	DOOR-SWITCH
27	LINT FILTER
28	CLIP GUIDE (4)
29	131382300 Frigidaire Screw-VANE
30	137552900 Frigidaire Vane
31	131202300 Frigidaire Screw
32	131777700 Frigidaire Dryer Bearing Drum
33	WCI 5303207396
34	131243700 Frigidaire Screw
38	WCI 131084801
39	WCI 131084403
41	HINGE-LOWER
41	HINGE-UPPER
42	131302800 Frigidaire Drum Vane Screw
44	137551901 Frigidaire Gasket
46	HANDLE-DOOR-ALMOND
47	WCI 5303300246
48	WCI 3204285
49	5303207102 Frigidaire Door Strike
50	134535300 Frigidaire Insulator
54	WCI 5303270324
55	RECEPTACLE-LAMP
56	131843500 Frigidaire Washer Appliance Lamp Light Bulb Assembly
57	WCI 3204288
58	RACK-DRYER
