FLSG72GCT1 04 – CONTROL PANEL

FLSG72GCT1 04 – CONTROL PANEL

Written by

in

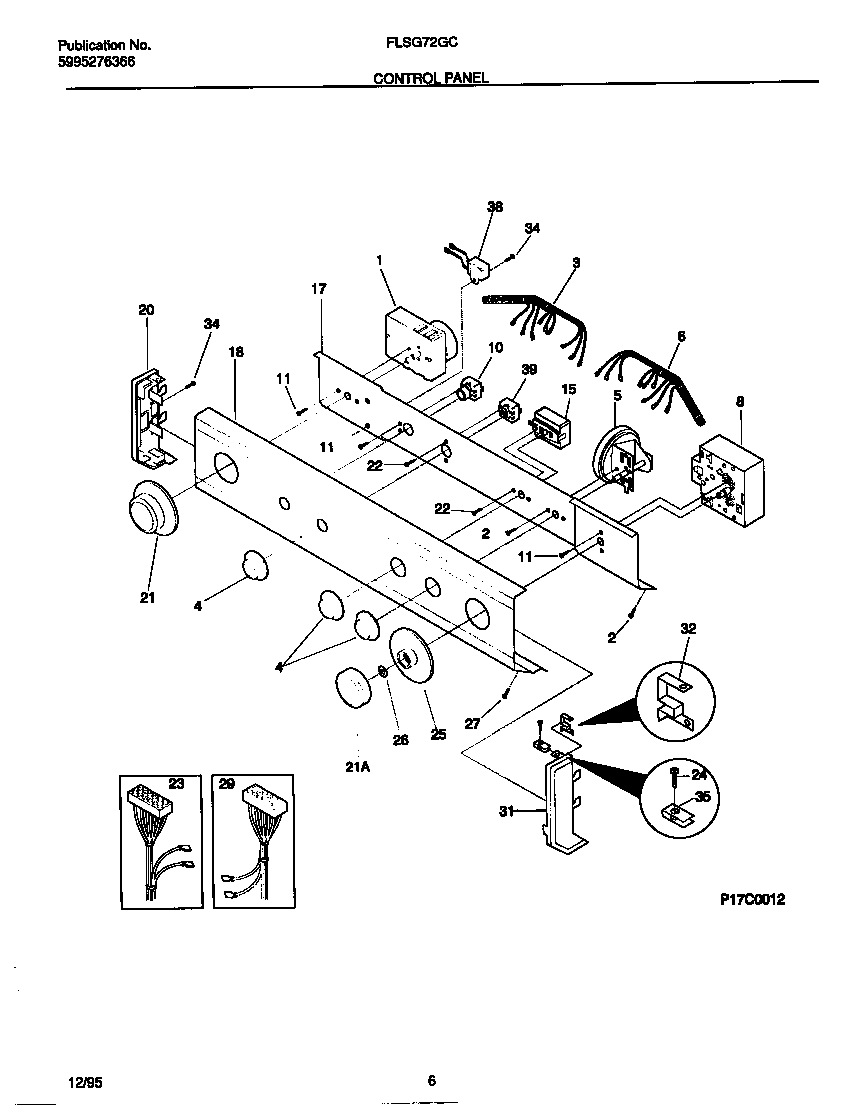

FLSG72GCT1 04 – CONTROL PANEL

Products

PositionProduct
*418875303161300 Frigidaire Strap
*41886131209800 Frigidaire Clamp
*418895303303590 Frigidaire Dryer 4.0" Cable Tie
*41885CLIP
*41888SPACER PAD-CONTROL PANEL BRACKET (2)
1WCI 131063300
2131168200 Frigidaire Dryer Screw
3WCI 131321200
4WCI 131168103
5WCI 131337900
6WCI 131446300
8131437500 Frigidaire Washer Timer
10WCI 5303308029
11218359202 Frigidaire Refrigerator Screw
15WCI 5308008463
17BRACKET-CONTROLS
18PANEL-CONTROL-ALMOND
20WCI 131288102
21KNOB-TIMER DRYER, ALMOND
21KNOB-TIMER WASHER, ALMOND
22WCI 3161259
23HARNESS-MAIN DRYER
25DIAL-TIMERR,ALMOND ,WASHER
26SPACER-TIMER-SHAFT
27SCREW (2)
29WCI 131490400
31WCI 131288212
32WCI 3204357
34131243700 Frigidaire Screw
35CLIP (8)
38WCI 5303210285
39SWITCH-DRYER TEMP
