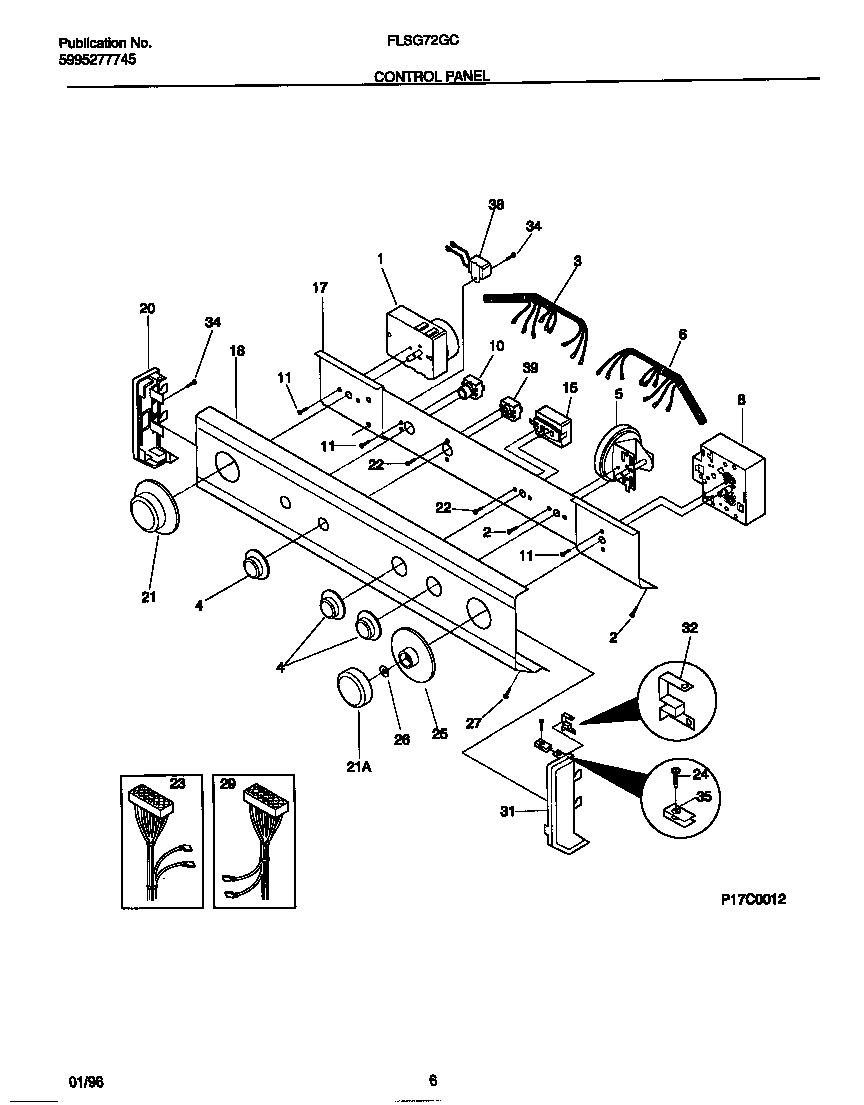

FLSG72GCT2 04 – CONTROL PANEL

FLSG72GCT2 04 – CONTROL PANEL

Written by

in

FLSG72GCT2 04 – CONTROL PANEL

Products

PositionProduct
*53485131209800 Frigidaire Clamp
*534865303161300 Frigidaire Strap
*53487SPACER PAD-CONTROL PANEL BRACKET (2)
*534885303303590 Frigidaire Dryer 4.0" Cable Tie
1WCI 131063300
2131168200 Frigidaire Dryer Screw
3WCI 131321200
4WCI 131168103
5WCI 131337900
6WCI 131446300
8131437500 Frigidaire Washer Timer
10WCI 5303308029
11218359202 Frigidaire Refrigerator Screw
15WCI 5308008463
17BRACKET-CONTROLS
18PANEL-CONTROL-ALMOND
20WCI 131288102
21KNOB-TIMER DRYER, ALMOND
21KNOB-TIMER WASHER, ALMOND
22WCI 3161259
23WCI 131491400
24134156200 Frigidaire Screw
25DIAL-TIMERR,ALMOND ,WASHER
26SPACER-TIMER-SHAFT
27SCREW (2)
29WCI 131520800
31WCI 131288212
32WCI 3204357
34131243700 Frigidaire Screw
35CLIP (8)
38WCI 5303210285
39SWITCH-DRYER TEMP
