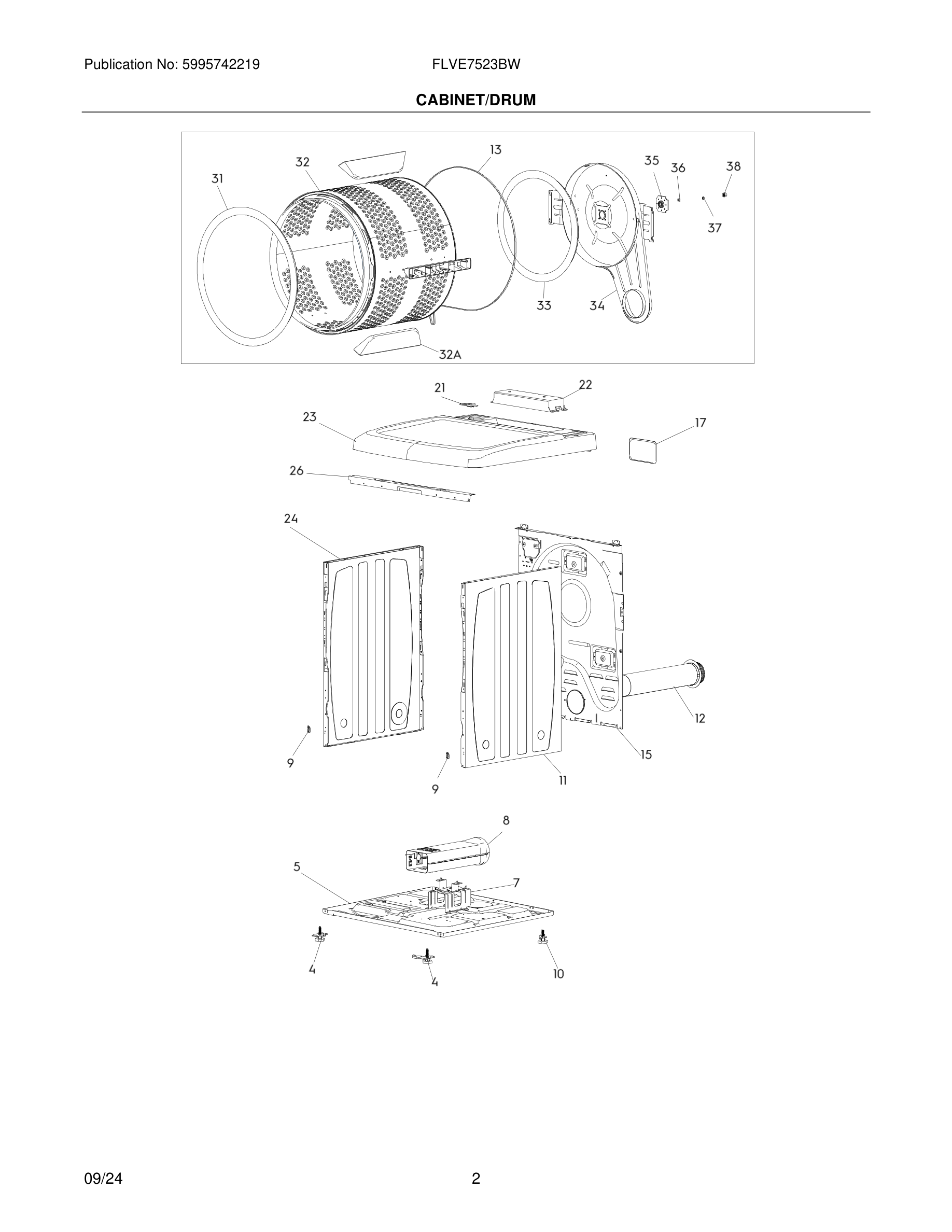

FLVE7523BW 03 – CABINET/DRUM

Products

PositionProduct
*#WIRE
4AFoot Assembly, adjustable
4Foot Assembly, adjustable
5Base Assembly, cabinet
7Support, heater
8#Heater
95304511376 Frigidaire Pin
10Foot Assembly, adjustable
11Panel, side, white, RH
12VENT PICE ASSY REAR
135304511380 Frigidaire Belt
15Cover, rear
17Cover, power cord
21COVER, HOLE, LINE SPEED
22#Cover, control board
23Top cover, white
24Panel, side, white, LH
265304511390 Frigidaire Rail Assembly
315304511391 Frigidaire Felt Seal
32ABaffle
32Drum Assembly, basket
335304511393 Frigidaire Felt Seal
34Duct Assembly, drum heating, rear
355304511395 Frigidaire Bearing Housing
365304511396 Frigidaire Nut
37Washer
38Washer
