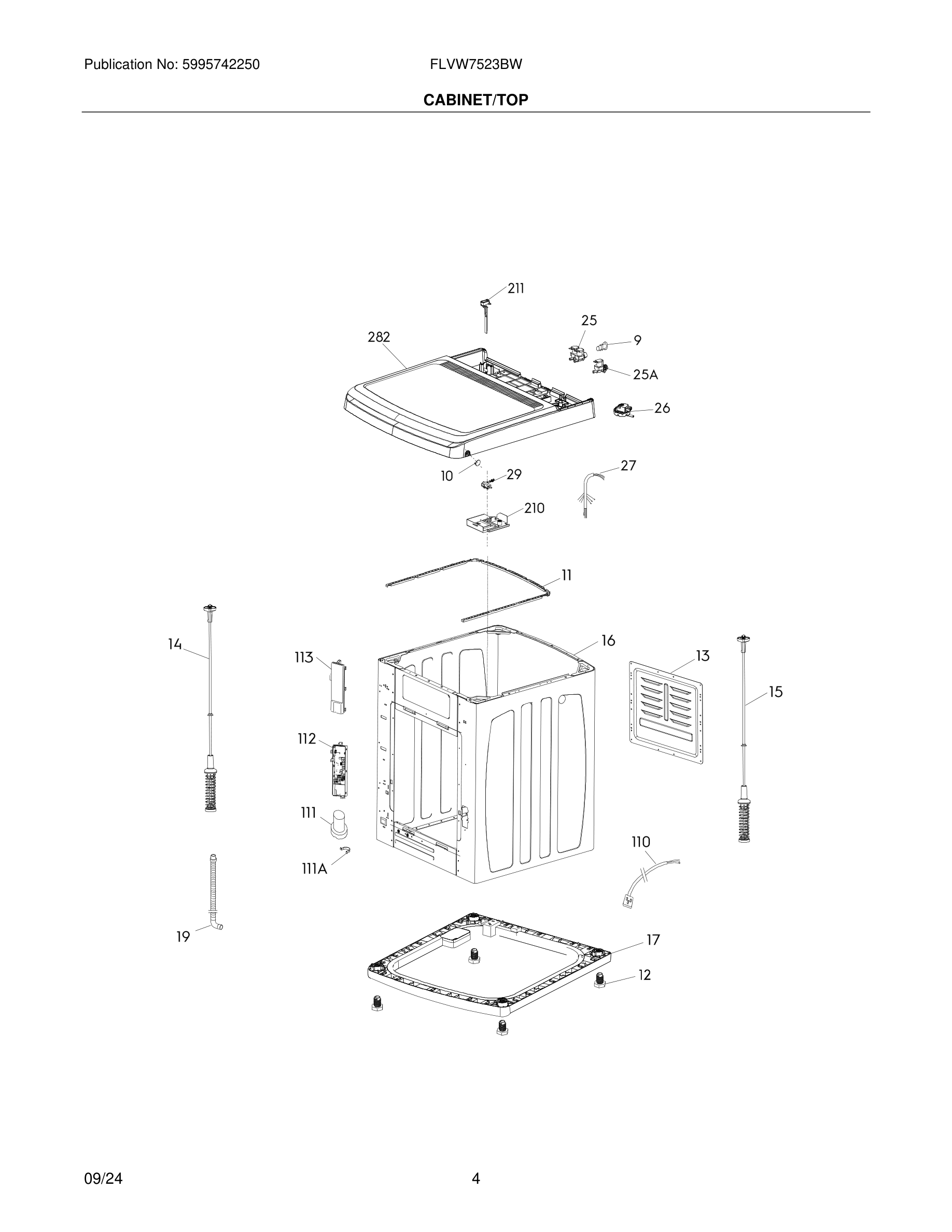

FLVW7523BW 05 – CABINET/TOP

FLVW7523BW 05 – CABINET/TOP

Written by

in

FLVW7523BW 05 – CABINET/TOP

Products

PositionProduct
95304532653 Frigidaire Gasket
10Screw cover
11Strip, connection
12Foot Assembly, adjustable
13Cover, rear
14ROD SUSPENSION
15ROD SUSPENSION
16Cabinet, assembly, white
17Base Assembly, cabinet
19Drain Hose, assembly
25#5304530082 Frigidaire Valve
25A#5304530083 Frigidaire Valve
26#Sensor Assembly, water
27#Wire, assembly
29#5304511338 Frigidaire Door Lock Assembly
110#5304511339 Frigidaire Power Cord
111#Capacitor, assembly
111ACatch, capacitor
112#Board, printed circuit, main
113Box, electrical assy
210Box, lid lock
211#Switch, impact
282Lid, assembly, white
