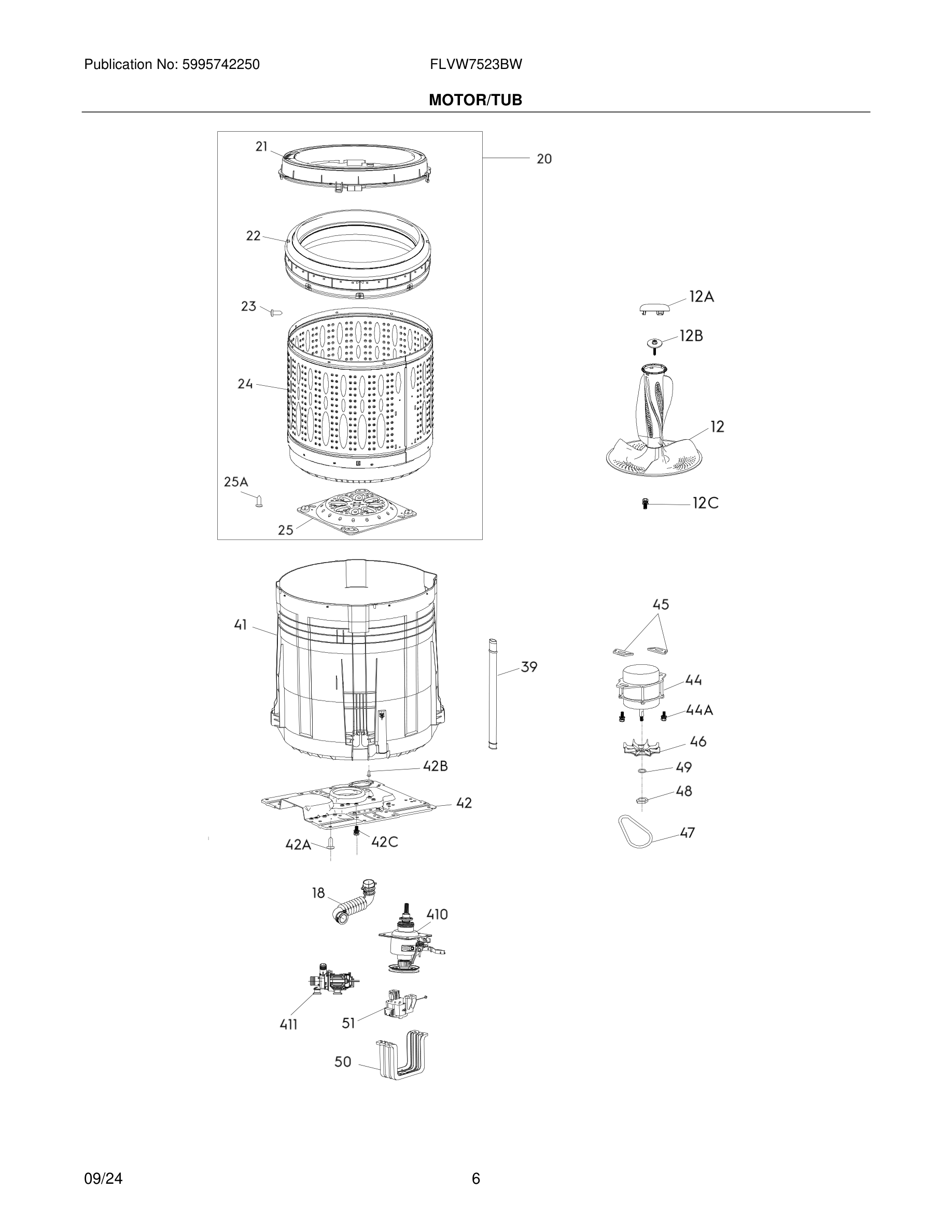

FLVW7523BW 07 – MOTOR/TUB

FLVW7523BW 07 – MOTOR/TUB

Written by

in

FLVW7523BW 07 – MOTOR/TUB

Products

PositionProduct
12Agitator, assembly
12ACover, Muddler
12BBolt, washer
12CBolt, washer
18Hose, assembly
20Tub, assembly, complete
21Cover, tub, outer
22Balance Ring, assembly
23Screw
24Tub, assembly, stainless
25Plate, coupling
25AScrew
39#Hose, overflow
41Tub, Assembly outer
42Plate, base, outer tub
42AScrew
42BScrew
42CScrew, w/ bolts
44ABolt, washer
44#Motor, single phase
45Cushion, motor mtg, lower
46Pulley, motor
47Belt, ribbed
48Nut, Speed & tinner
49Washer, spring
50Bracket, clutch mtg
51#5304511361 Frigidaire Washer Retractor
410#Clutch Body, assembly
411#Pump, synchronous
