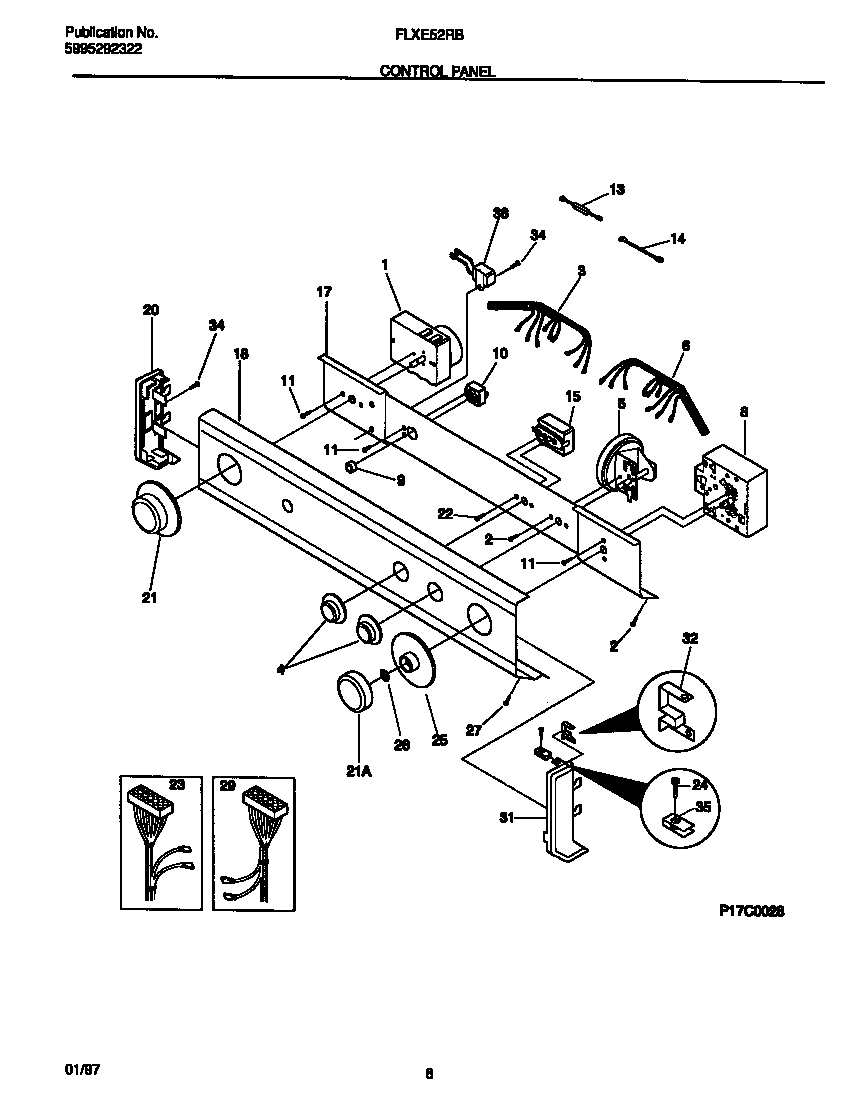

FLXE52RBS4 04 – CONTROL PANEL

FLXE52RBS4 04 – CONTROL PANEL

Written by

in

FLXE52RBS4 04 – CONTROL PANEL

Products

PositionProduct
*264415303161300 Frigidaire Strap
1131062300 Frigidaire Timer
2131168200 Frigidaire Dryer Screw
3WCI 131305700
4131873401 Frigidaire Washer Control Knob
5WCI 131395600
6WCI 131592700
8WCI 131437400
9WCI 131111501
10WCI 131628900
11218359202 Frigidaire Refrigerator Screw
13RESISTOR, 3.0K
14RESISTOR-POWER, 4.4K
15WCI 131620800
17WCI 131622902
18WCI 131623000
20WCI 131288101
21131873304 Frigidaire Dryer Timer Knob White
21WCI 131167601
22WCI 3161259
23WCI 131512600
24134156200 Frigidaire Screw
25WCI 131167701
26SPACER-TIMER-SHAFT
27SCREW (2)
29WCI 131520800
31WCI 131288211
32WCI 3204357
34131243700 Frigidaire Screw
35CLIP (8)
38WCI 5303286537
