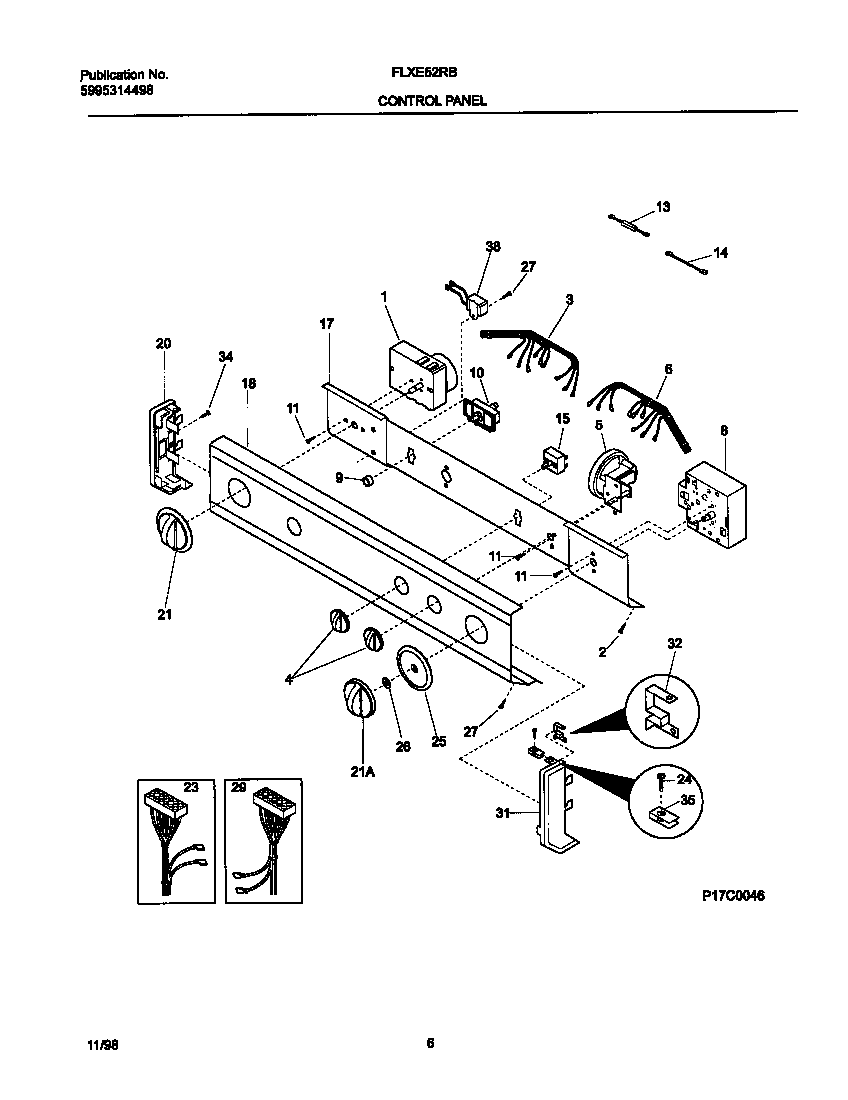

FLXE52RBS8 04 – P17C0046 CONTROL PANEL

Written by

Products

Position	Product
*57041	5303161300 Frigidaire Strap
1	131062300 Frigidaire Timer
2	131168200 Frigidaire Dryer Screw
3	WCI 131305700
4	131873401 Frigidaire Washer Control Knob
5	134422700 Frigidaire Switch
6	WCI 131668500
8	WCI 131437400
9	WCI 131111501
10	WCI 131628900
11	218359202 Frigidaire Refrigerator Screw
13	RESISTOR, 3.0K
14	RESISTOR-POWER, 4.4K
15	WCI 131620800
17	WCI 131712602
18	WCI 131623000
20	WCI 131288101
21	WCI 131167601
21	131873304 Frigidaire Dryer Timer Knob White
23	WCI 131753200
24	134156200 Frigidaire Screw
25	WCI 131167701
26	SPACER-TIMER-SHAFT
27	SCREW (2)
29	WCI 131778800
31	WCI 131288211
32	WCI 3204357
34	131243700 Frigidaire Screw
35	CLIP (8)
38	WCI 5303286537
