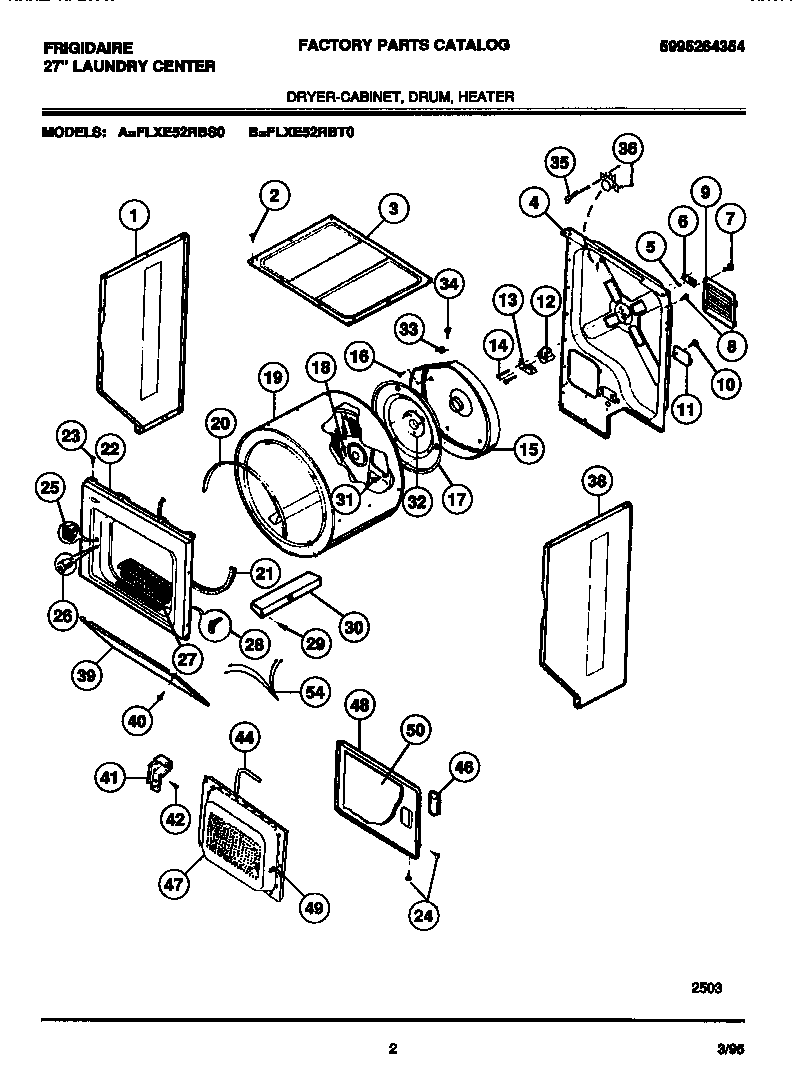

FLXE52RBT0 02 – DRYER-CABINET, DRUM, HEATER

FLXE52RBT0 02 – DRYER-CABINET, DRUM, HEATER

Written by

in

FLXE52RBT0 02 – DRYER-CABINET, DRUM, HEATER

Products

PositionProduct
*80200LARGE DIA COIL 5/16" TERM
*802013202786 Frigidaire Terminal Block
*80202131472100 Frigidaire Dryer Insulator Heater Coil
1WCI 131084701
3131883301 Frigidaire Panel
4WCI 5303283283
55303281019 Frigidaire Ball Assembly
65303281020 Frigidaire Ball Clip
9PANEL-MOTOR ACCESS
11WCI 3204250
12131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
13131724301 Frigidaire Dryer Drum Bearing Bracket
14131205400 Frigidaire Screw
15HEATER ASSY W/HSNG
173204254 Frigidaire Baffle Assembly
19134138400 Frigidaire Drum Kit Assembly O/S3 Xxx
205303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
215303283286 Frigidaire Drum Felt Seal Lower Front
22PANEL-FRONT, ALMOND, DRYER
24134156200 Frigidaire Screw
25131658800 Frigidaire Dryer Door Catch Repair Kit
26SWITCH-DOOR
27LINT FILTER
28CLIP GUIDE (4)
29131382300 Frigidaire Screw-VANE
30137552900 Frigidaire Vane
31131168200 Frigidaire Dryer Screw
32131777700 Frigidaire Dryer Bearing Drum
33SAFETY THERMSTAT
34131243700 Frigidaire Screw
35WCI 08010804
36134120900 Frigidaire Dryer Limiter Thermal
38WCI 131084801
39WCI 131084403
40131202300 Frigidaire Screw
41BHINGE-LOWER
41AHINGE-UPPER
42131302800 Frigidaire Drum Vane Screw
44137551901 Frigidaire Gasket
46HANDLE-DOOR-ALMOND
47WCI 5303300246
48WCI 3204285
495303207102 Frigidaire Door Strike
50134535300 Frigidaire Insulator
54WCI 3205631
