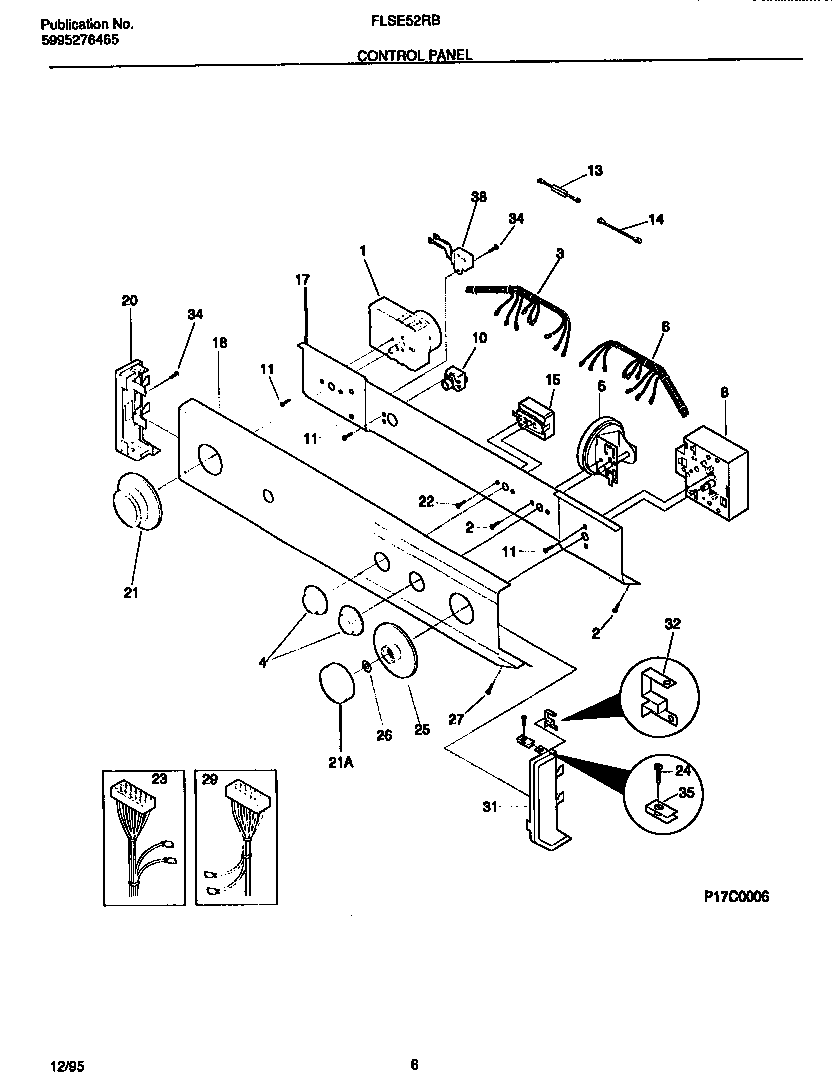

FLXE52RBT1 04 – CONTROL PANEL

FLXE52RBT1 04 – CONTROL PANEL

Written by

in

FLXE52RBT1 04 – CONTROL PANEL

Products

PositionProduct
*416045303161300 Frigidaire Strap
*416065303303590 Frigidaire Dryer 4.0" Cable Tie
*41605SPACER PAD-CONTROL PANEL BRACKET (2)
1131062300 Frigidaire Timer
2131168200 Frigidaire Dryer Screw
3WCI 131305700
4WCI 131168102
5WCI 131395600
6WCI 131446300
8WCI 131437400
10START-SWITCH-ALMOND
11218359202 Frigidaire Refrigerator Screw
13RESISTOR, 3.0K
14RESISTOR-POWER, 4.4K
15SWITCH-TEMPERATURE
17BRACKET-CONTROLS
18WCI 131316700
20WCI 131288102
21KNOB-DRYER-ALMD
21KNOB-WASHER-ALMD
22WCI 3161259
23HARNESS-MAIN DRYER
24134156200 Frigidaire Screw
25WCI 131167702
26SPACER-TIMER-SHAFT
27SCREW (2)
29WCI 131490400
31WCI 131288212
32WCI 3204357
34131243700 Frigidaire Screw
35CLIP (8)
38WCI 5303286537
